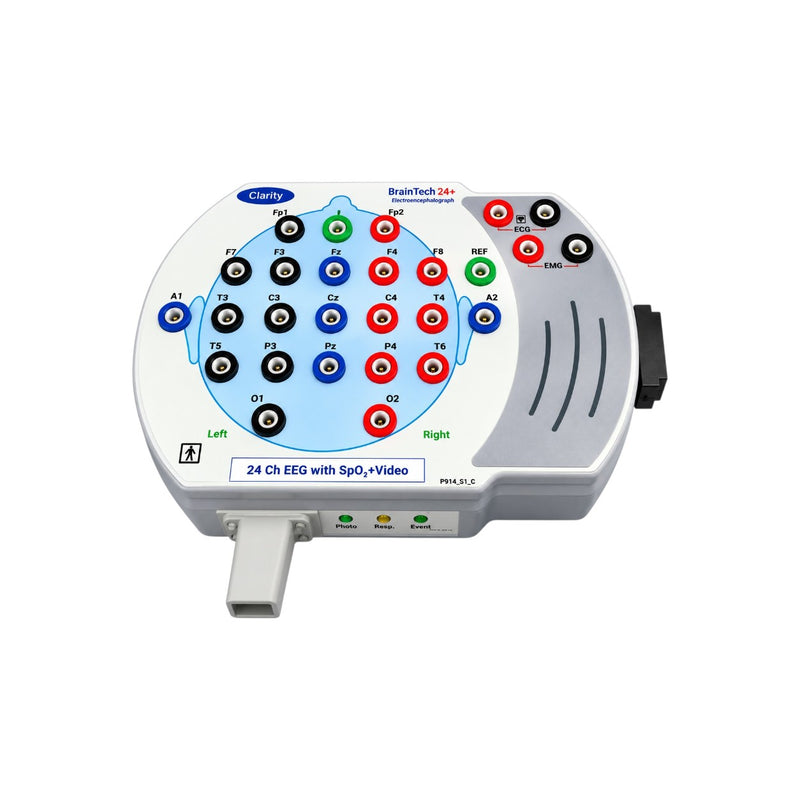

The Clarity Medical Traveller BrainTech 24+ is a compact and lightweight 24-channel portable EEG machine designed for high-quality recording and analysis of brain electrical activity. This advanced digital EEG machine is suitable for hospitals, neurology clinics, diagnostic centers, ICUs, emergency departments, sleep laboratories, epilepsy monitoring units, and mobile EEG services.
The BrainTech Traveller 24+ EEG Machine features 24-channel simultaneous acquisition, automatic impedance measurement, integrated 1–60 Hz white LED photic stimulation, advanced EEG acquisition software, digital filtering, event marking, patient database management, and optional SpO₂ and HD video EEG synchronization.
With PC USB-powered operation, compact dimensions of 192 × 136 × 42 mm, and weight below 360 g, the BrainTech 24+ is an ideal portable EEG machine for bedside and mobile clinical applications.
Key Features
-
24-channel simultaneous EEG acquisition
-
Compact and lightweight portable EEG machine
-
PC USB-powered operation
-
Automatic electrode impedance measurement
-
Built-in 1–60 Hz LED photic stimulator
-
Advanced EEG recording and analysis software
-
Digital Low Cut, High Cut, and 50/60 Hz Notch filters
-
Patient database and record management
-
High CMRR and low-noise signal acquisition
-
Optional SpO₂ monitoring and HD video EEG synchronization
-
Windows 7/8/10/11 compatible
Clinical Applications
The Clarity BrainTech Traveller 24+ is suitable for neurology departments, EEG laboratories, epilepsy assessment, ICU and bedside EEG monitoring, sleep studies, diagnostic centers, hospitals, mobile EEG services, medical research, and academic applications.
Technical Specifications
| Parameter |
Specification |
| Brand |
Clarity Medical |
| Model |
Traveller BrainTech 24+ |
| EEG Channels |
24 Channels |
| Product Type |
Portable Digital EEG Machine |
| Sampling Rate |
1024 Hz ADC / 256 Hz Storage |
| Frequency Range |
0.1–100 Hz |
| Input Impedance |
>10 MΩ |
| Noise |
<1 µV P-P |
| CMRR |
>95 dB, up to >110 dB |
| Photic Stimulation |
1–60 Hz White LED |
| Impedance Check |
Automatic |
| Power |
PC USB Powered |
| Dimensions |
192 × 136 × 42 mm |
| Weight |
<360 g |

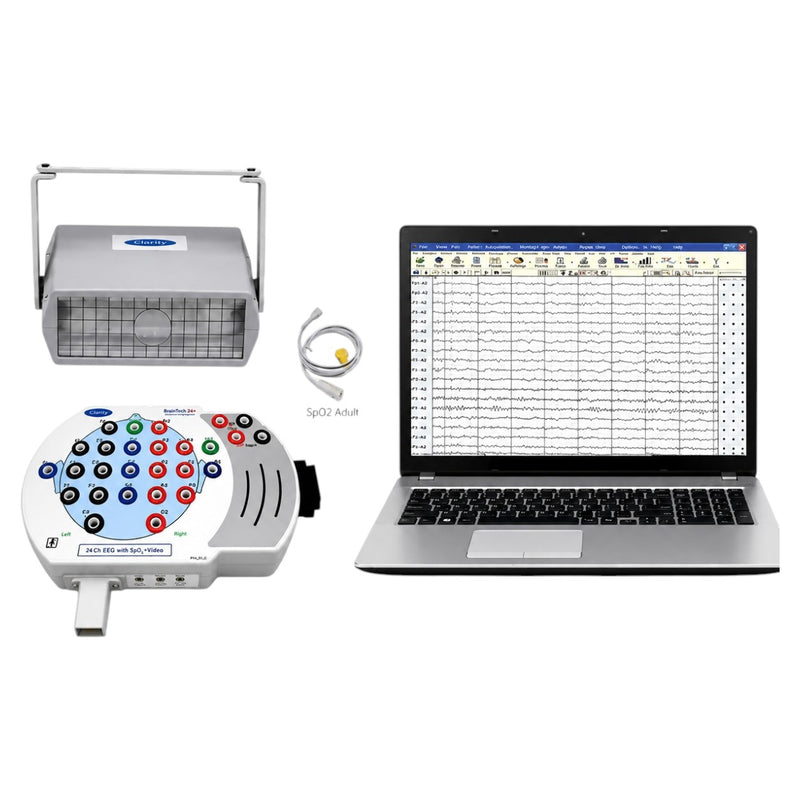

What's Included
-
Clarity Medical BrainTech Traveller 24+ EEG Unit
-
EEG Electrodes and Lead Cable Set
-
LED Photic Stimulator and Stand
-
USB Interface Cable
-
Patient Ground Cable and Event Marker
-
EEG Conductive Paste / Gel
-
Electrode Placement Guide
-
EEG Acquisition Software
-
User Documentation
Why Choose BrainTech Traveller 24+?
The BrainTech Traveller 24+ combines professional EEG recording capabilities with a compact and highly portable design. Its 24-channel EEG acquisition, USB-powered operation, automatic impedance checking, integrated photic stimulation, and advanced analysis software make it suitable for both routine and specialized EEG applications.
The lightweight design allows the portable EEG machine to be easily moved between departments and used for bedside examinations. Optional SpO₂ monitoring and HD video EEG synchronization provide additional flexibility for advanced neurological and epilepsy monitoring applications.
For healthcare professionals looking for a 24-channel portable EEG machine, digital EEG machine, bedside EEG machine, or computer-based EEG system, the Clarity Medical BrainTech Traveller 24+ offers a practical solution for modern clinical environments.
