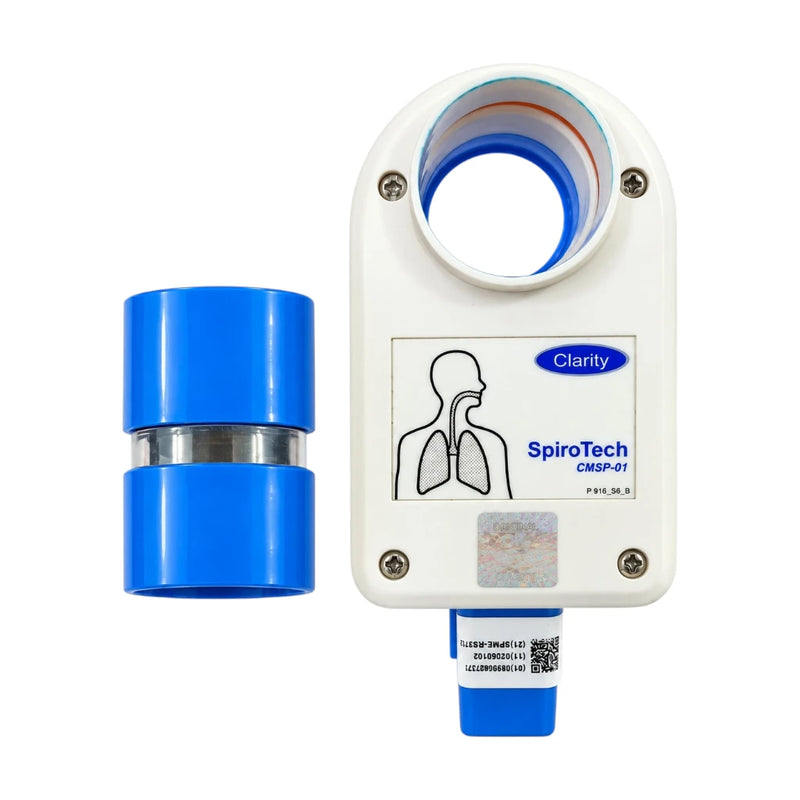

Clarity Medical SpiroTech & SpiroTech Plus Digital Turbine

Product Description

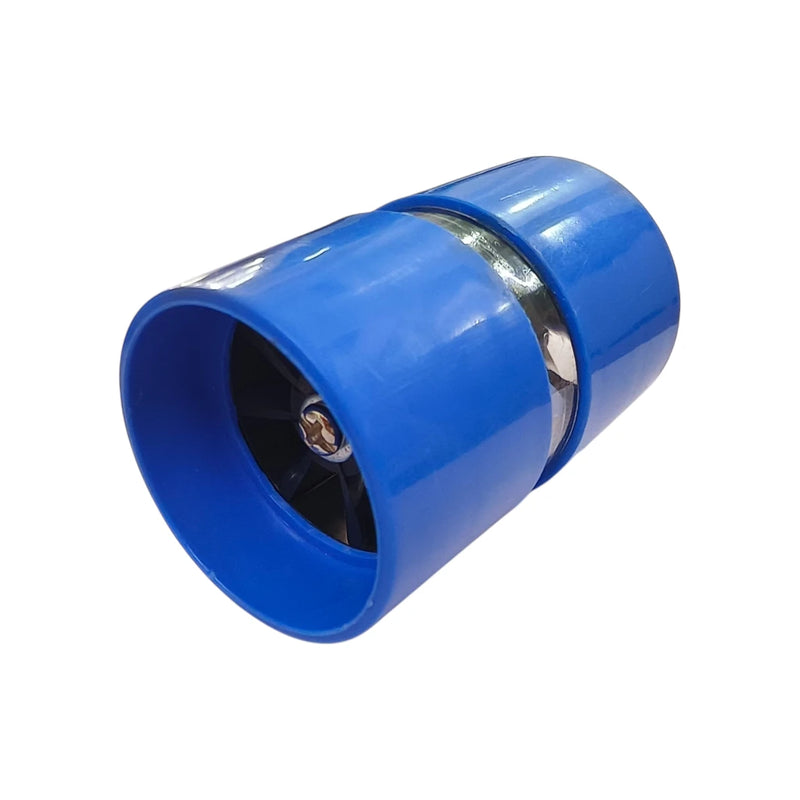

The Clarity Medical SpiroTech & SpiroTech Plus Digital Turbine is a bi-directional turbine designed for accurate and reliable airflow measurement in compatible Clarity Medical pulmonary function testing (PFT) spirometers. The turbine uses infrared sensing technology to detect airflow and turbine movement during both inspiratory and expiratory respiratory maneuvers.

With a measuring range of -10 L/sec to +16 L/sec, the SpiroTech turbine supports respiratory flow measurement for pulmonary function tests including FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Ventilation).

Designed as a precision airflow-sensing component, it provides digital flow information to the connected spirometer for calculation and analysis of respiratory parameters.

Key Features

• Bi-Directional Turbine – Measures airflow in both inspiratory and expiratory directions.
• Measuring Range: -10 to +16 L/sec – Suitable for a wide range of respiratory airflow measurements.
• Infrared Sensing Technology – Uses an infrared transmitter and receiver to detect turbine movement.
• Digital Airflow Measurement – Converts turbine movement into digital flow information.
• ±1% Measuring Accuracy – Designed for accurate and reliable airflow measurement.
• FVC Measurement – Supports Forced Vital Capacity testing.
• SVC Measurement – Supports Slow Vital Capacity testing.
• MVV Measurement – Supports Maximum Voluntary Ventilation testing.
• Compatible with SpiroTech – Designed for compatible Clarity Medical SpiroTech PFT systems.
• Compatible with SpiroTech Plus – Suitable for compatible Clarity Medical SpiroTech Plus systems.
• Maximum Volume: 8 Litres – As per the supplied specification.
• Precision Replacement Component – Suitable for replacement of the digital turbine in compatible spirometry systems.

Technical Specifications
