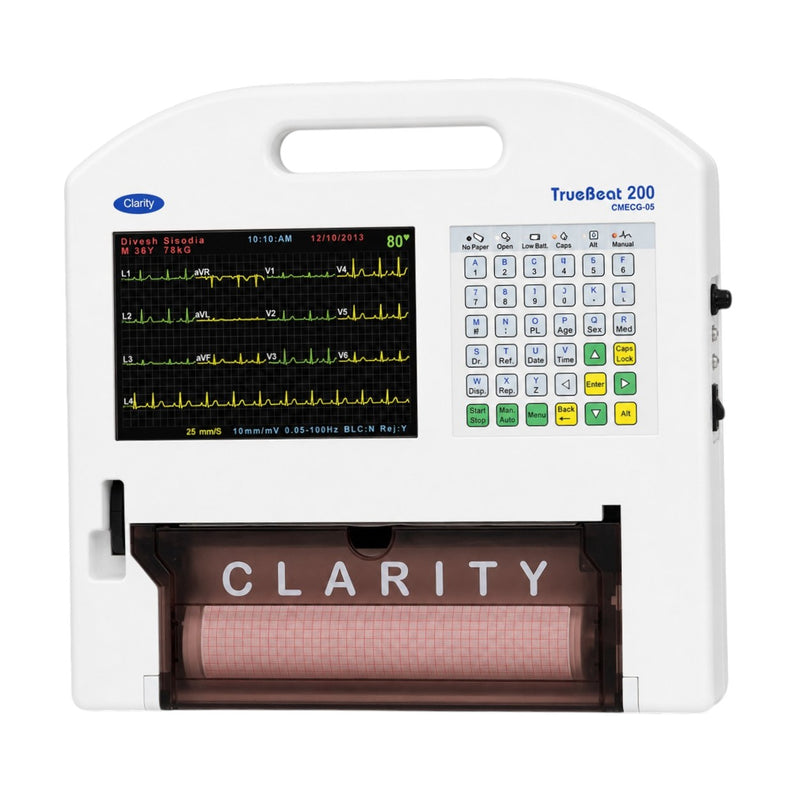

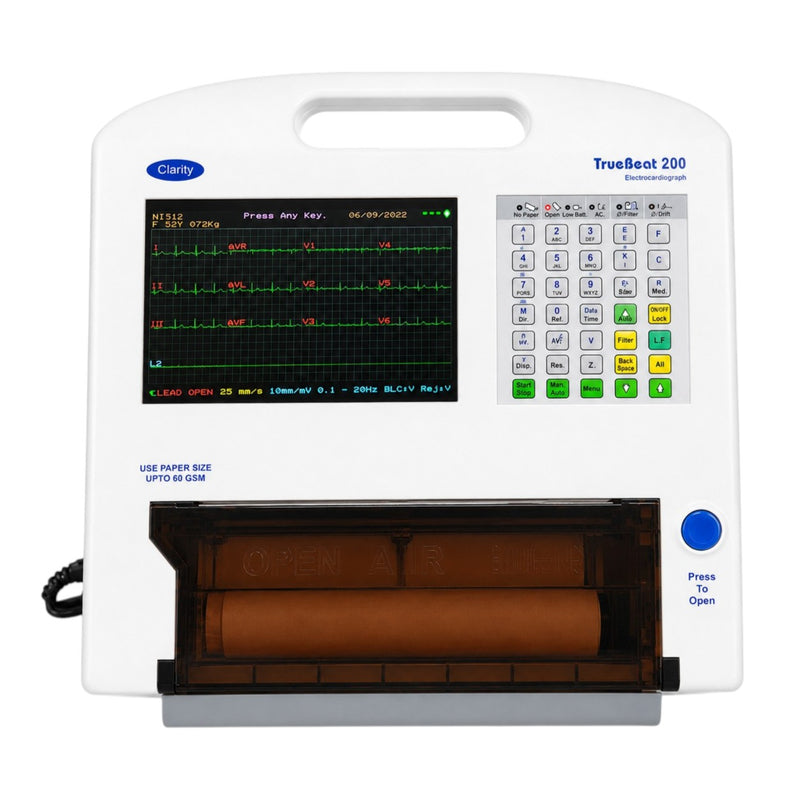

The Clarity TrueBeat 200 12 Channel ECG Machine is an advanced digital ECG machine built to provide precise and efficient cardiac diagnostics in demanding clinical environments. With simultaneous 12-lead ECG acquisition, clinicians receive complete cardiac information within seconds, supporting faster and more accurate diagnosis.
Equipped with a 7-inch high-resolution color TFT display, the system delivers clear ECG waveform visualization for confident interpretation. Its True Interpretation Sensitivity Algorithm (TISA) automatically analyzes ECG recordings, helping healthcare professionals make quicker clinical decisions while improving workflow.
The integrated A4 thermal printer produces sharp, high-quality ECG reports instantly, while internal memory stores up to 200 ECG records for easy review and comparison. Multiple sensitivity options, digital filters, and USB connectivity further enhance flexibility for routine examinations and hospital reporting.
Lightweight and easy to transport, the Clarity TrueBeat 200 is suitable for hospitals, cardiac care units, OPDs, emergency departments, diagnostic centres, and mobile healthcare services. Available from Health Yantra Store, it is a dependable ECG solution for modern cardiac diagnostics.
Key Features
- Simultaneous 12-channel ECG acquisition
-
7-inch color TFT display with clear waveform visualization
- Advanced TISA automatic ECG interpretation
- Built-in A4 thermal printer (300 dpi)
- Stores up to 200 ECG records
- USB connectivity for easy data transfer
- Digital filters reduce muscle noise and baseline drift
- Compact, lightweight design for easy portability
- Manual and automatic ECG recording modes
- Defibrillation protection and pacemaker detection
Benefits
- Delivers accurate and reliable 12-lead ECG recordings
- Speeds up diagnosis with automatic ECG interpretation
- Improves workflow through fast printing and easy operation
- Stores patient ECG history for future comparison
- Portable design suitable for bedside and mobile use
- Ideal for hospitals, clinics, diagnostic centres, and emergency care
Technical Specifications
| Specification |
Details |
| Product Name |
Clarity TrueBeat 200 12 Channel ECG Machine |
| Brand |
Clarity Medical |
| Model |
TrueBeat 200 |
| Display |
7-inch Color TFT |
| ECG Channels |
12 Channel |
| Acquisition |
Simultaneous 12 Lead |
| Sampling Rate |
500 Samples/sec/Channel |
| Frequency Response |
0.05–150 Hz |
| Printer |
Integrated A4 Thermal Printer |
| Paper Width |
210 mm Thermal Paper |
| Memory |
Up to 200 ECG Records |
| Connectivity |
USB |
| Battery |
Li-Ion 14.8V |
| Battery Backup |
Up to 50 ECG Recordings |
| Dimensions |
34 × 31.8 × 7.6 cm |
| Weight |
Less than 3 kg |

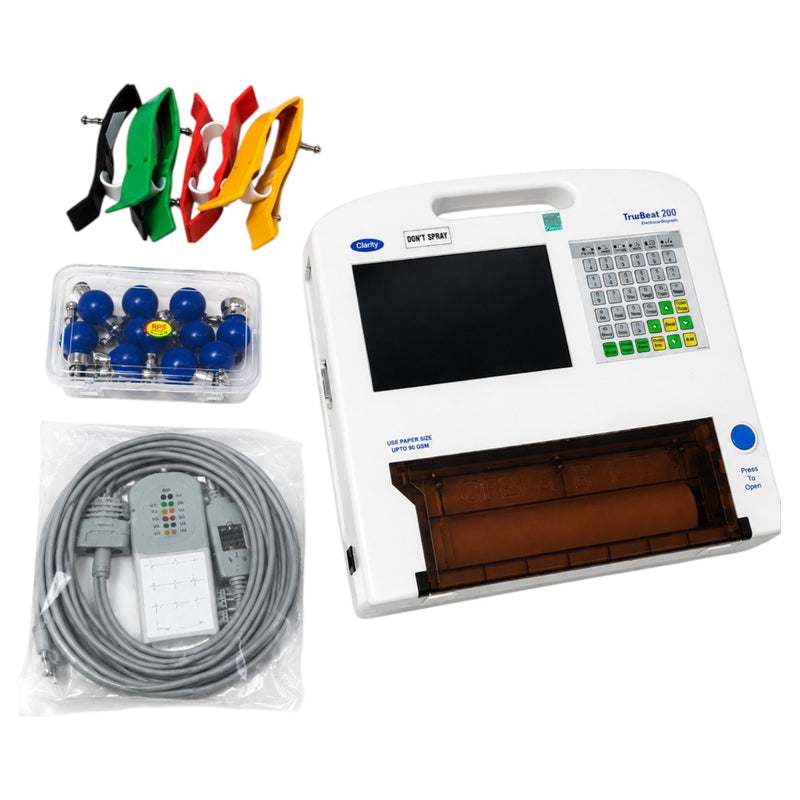

What's Included
- Clarity TrueBeat 200 ECG Machine
- 12-Lead ECG Patient Cable
- Power Supply Cable
- Disposable ECG Electrodes
- Thermal Recording Paper
- User Manual
- Warranty Card
