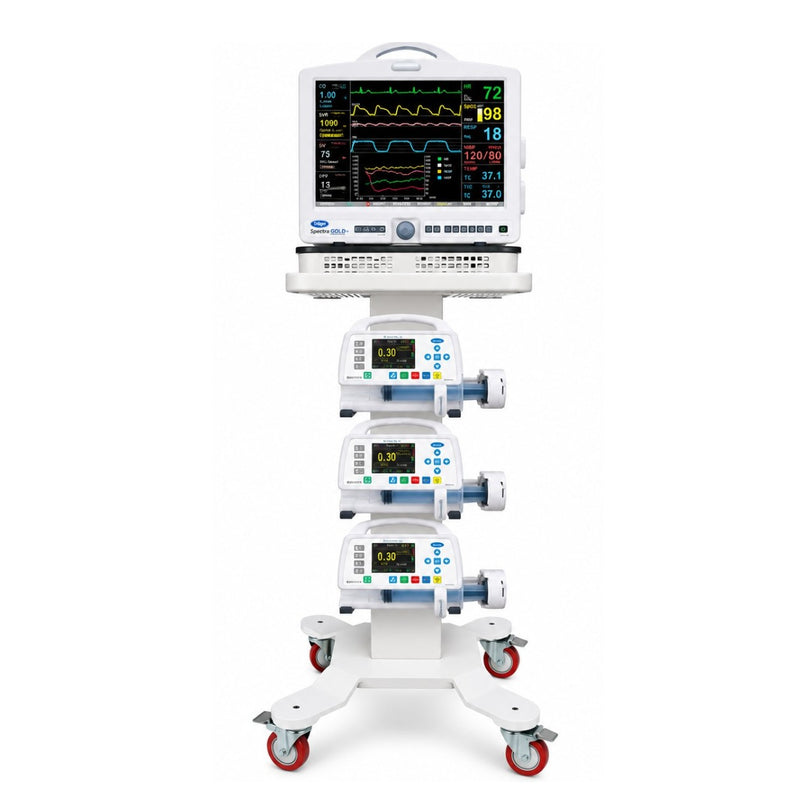

A Closed-Loop Anaesthesia Delivery System (CLADS) is an automated anaesthesia technology designed to use real-time patient monitoring data to continuously adjust anaesthetic drug delivery during surgery. By combining physiological monitoring, control algorithms, and automated infusion pumps, a CLADS can continuously respond to changes in the patient's measured condition.
The system is designed to support more consistent anaesthetic control while reducing the need for continuous manual titration. Depending on the specific CLADS configuration, monitored parameters may include Bispectral Index (BIS), heart rate, blood pressure, and end-tidal carbon dioxide (EtCO₂).
✅ Key Features
- Automated closed-loop anaesthesia delivery
- Real-time physiological monitoring
- BIS-based depth-of-anaesthesia monitoring
- Heart-rate and blood-pressure monitoring
- End-tidal carbon dioxide (EtCO₂) monitoring
- Central control algorithm for automated decision-making
- PID or fuzzy-logic control approaches, depending on system design
- Automated modulation of infusion pumps
- Supports precise, frequent drug-delivery adjustments
- Can be configured for intravenous anaesthetic agents such as propofol and remifentanil
- Designed to support stable anaesthetic depth and haemodynamic management
- Reduces manual drug-titration workload for the anaesthesia team
Real-Time Patient Monitoring
The CLADS architecture can incorporate multiple physiological signals, including:
-
Bispectral Index (BIS) derived from EEG activity
- Heart rate
- Blood pressure
- End-tidal carbon dioxide (EtCO₂)
These measurements provide the system with continuously updated information about anaesthetic depth and the patient's physiological status.
Automated Anaesthetic Drug Titration
A key characteristic of CLADS is the ability to make frequent automated adjustments rather than relying exclusively on intermittent manual titration.
This approach is intended to help maintain the patient's measured anaesthetic state closer to a predefined target while responding to changing physiological conditions.
Potential Clinical Benefits
Research on closed-loop anaesthesia systems has reported several potential benefits compared with conventional manual titration.
Improved Anaesthetic Depth Control
Closed-loop systems may help maintain anaesthetic depth within the desired range and reduce the amount of time patients spend at excessively deep levels of anaesthesia.
Studies have reported reductions in periods of deep anaesthesia, such as BIS below 40, while also helping avoid inadequate anaesthetic depth.
Haemodynamic Stability
By continuously incorporating physiological measurements, automated systems may support more stable anaesthetic management and potentially reduce episodes associated with excessive drug administration or low blood pressure.
Reduced Drug Consumption
Automated titration can potentially reduce overall anaesthetic drug consumption by adjusting delivery according to the patient's real-time requirements rather than maintaining a fixed or manually adjusted infusion rate.
Faster Emergence and Recovery
Some studies have reported shorter emergence times and quicker extubation with closed-loop anaesthesia approaches compared with conventional manual titration.
However, outcomes depend on the specific system, anaesthetic protocol, patient population, and clinical setting.
Reduced Anaesthesiologist Workload
Automation can reduce some repetitive monitoring and manual titration tasks, allowing the anaesthesiologist to concentrate more heavily on clinical assessment, decision-making, airway management, haemodynamic intervention, and other critical aspects of patient care.
Key Components of a CLADS
| Component |
Function |
| Brand |
Clarity Medical |
| BIS Monitor |
Provides processed EEG-based anaesthesia-depth information |
| Heart Rate Monitoring |
Tracks cardiac rate |
| Blood Pressure Monitoring |
Provides haemodynamic information |
| EtCO₂ Monitoring |
Tracks end-tidal carbon dioxide |
| Central Controller |
Processes monitoring information |
| Control Algorithm |
Compares measured values with target ranges |
| Infusion Pump |
Delivers intravenous anaesthetic agents |
| Feedback Loop |
Enables continuous adjustment based on updated patient data |
Technical Specifications / System Characteristics
| Specification |
Details |
| System Type |
Closed-Loop Anaesthesia Delivery System |
| Control Principle |
Automated feedback control |
| Input Data |
Physiological monitoring signals |
| Anaesthesia Depth Parameter |
BIS / processed EEG information |
| Other Monitoring Inputs |
Heart rate, blood pressure, EtCO₂ |
| Control Algorithms |
PID / fuzzy logic, depending on system |
| Automated Delivery |
Infusion pump modulation |
| Example IV Agents |
Propofol, remifentanil |
| Control Method |
Continuous feedback-based titration |
| Primary Application |
Intraoperative anaesthesia management |
| Clinical Setting |
Operating Room / Anaesthesia Care |
| Automation Role |
Supports, rather than replaces, anaesthesiologist oversight |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
