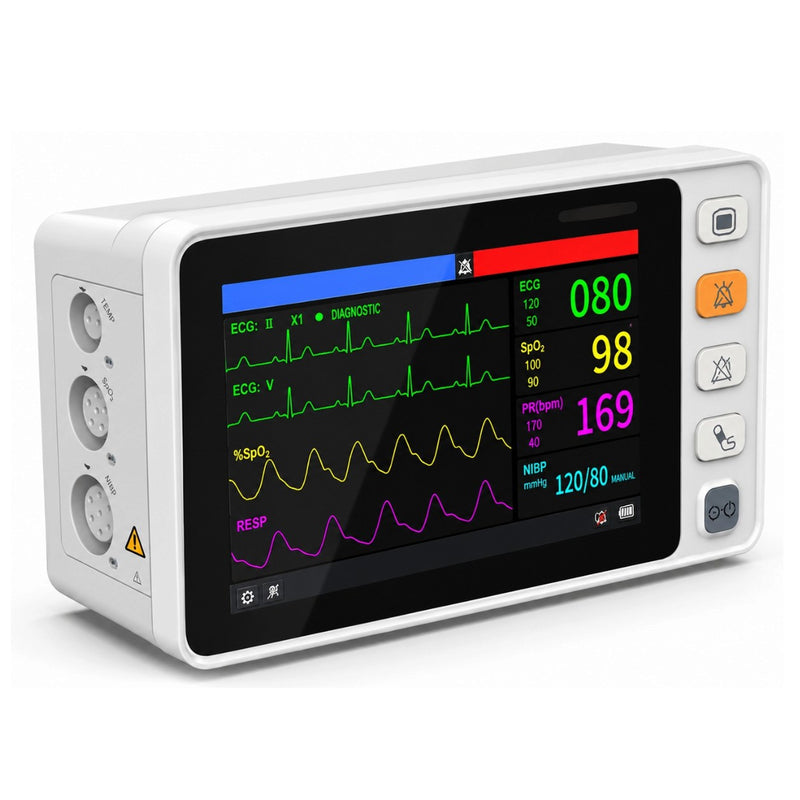

The Contec CMS1000 Patient Monitor is a compact 5-inch portable multi-parameter vital signs monitor designed for adult, pediatric, and neonatal patients.
It provides monitoring of ECG, RESP, SpO₂, NIBP, and dual-channel TEMP, with optional CO₂ capnography for EtCO₂, INSCO₂, and airway respiration rate (AWRR). Its compact fanless design supports quiet, energy-saving operation, while the built-in rechargeable battery makes it suitable for portable patient monitoring.
The CMS1000 also provides audible and visual alarms, 2,400-group NIBP data storage, alarm event marking, drug concentration calculations, and optional Wi-Fi connectivity for connection to a Central Monitoring System.
✅ Key Features
- 5-inch color TFT LCD touchscreen
- Designed for adult, pediatric, and neonatal patients
- ECG heart rate and waveform monitoring
- Dual-lead or multi-lead ECG waveform display
- RESP respiration rate and waveform
- SpO₂, PR and PLETH waveform
- NIBP with SYS, DIA and MEAN pressure
- Dual-channel temperature monitoring
- Optional CO₂ capnography
- EtCO₂, INSCO₂ and AWRR monitoring with optional CO₂
- Standard, Big Character and OxyCRG display interfaces
- Fanless structure
- Quiet and energy-saving operation
- Optional Wi-Fi networking
- Central Monitoring System connectivity
- Audible and visual alarms
- 2,400-group NIBP data storage
- Alarm event marking
- Drug concentration calculations
- 100–240V AC, 50/60Hz power supply
- Built-in large-capacity rechargeable battery
5-Inch Touchscreen Display
The CMS1000 features a 5-inch color TFT LCD touchscreen designed for clear viewing and convenient operation.
It supports multiple display interfaces, including:
- Standard display
- Big Character display
- OxyCRG display
Comprehensive Vital Signs Monitoring
ECG Monitoring
The ECG function provides:
- Heart rate (HR)
- Dual-lead or multi-lead waveform display
This allows continuous cardiac waveform and heart-rate monitoring.
RESP Monitoring
The RESP function measures:
- Respiration rate (RR)
- Respiration waveform
SpO₂ Monitoring
The SpO₂ module provides:
- Blood oxygen saturation
- Pulse rate (PR)
- Plethysmogram (PLETH) waveform
NIBP Monitoring
Non-invasive blood pressure monitoring provides:
-
SYS: Systolic pressure
-
DIA: Diastolic pressure
-
MEAN: Mean pressure
The system supports storage of up to 2,400 groups of NIBP data.
Dual-Channel Temperature
The CMS1000 provides dual-channel body temperature monitoring, allowing two temperature channels to be monitored.
Optional CO₂ Capnography
The CMS1000 can be configured with an optional CO₂ monitoring module.
The optional CO₂ function supports:
-
EtCO₂: End-tidal carbon dioxide
-
INSCO₂: Inspired carbon dioxide
-
AWRR: Airway respiration rate
This expands the monitor's capabilities for clinical environments requiring capnography.
Fanless Design
The CMS1000 uses a fanless structure designed for:
- Quiet operation
- Energy efficiency
- Cleaner operation
The supplied product information states that this design helps minimize cross-infection risks.
Wi-Fi & Central Monitoring
An optional Wi-Fi network function allows the CMS1000 to connect to a Central Monitoring System.
This provides a way to integrate the portable monitor into a networked patient-monitoring environment.
Alarms & Data Management
The monitor provides audible and visual alarms to alert healthcare professionals to monitored conditions.
Additional data-management functions include:
- Alarm event marking
- NIBP data storage
- Review of stored NIBP measurements
- Drug concentration calculations
Rechargeable Battery
The CMS1000 operates from 100–240V AC, 50/60Hz and incorporates a built-in large-capacity rechargeable battery.
The battery supports portable operation and continued patient monitoring when the monitor is being used away from a fixed AC power source.
Technical Specifications
| Specification |
Contec CMS1000 |
| Product Type |
Portable Multi-Parameter Patient Monitor |
| Patient Types |
Adult / Pediatric / Neonatal |
| Display |
5-inch Color TFT LCD Touchscreen |
| Display Modes |
Standard / Big Character / OxyCRG |
| ECG |
Yes |
| ECG Parameters |
HR, ECG Waveform |
| ECG Waveforms |
Dual-lead or Multi-lead |
| RESP |
Yes |
| RESP Parameters |
RR, Respiration Waveform |
| SpO₂ |
Yes |
| SpO₂ Parameters |
SpO₂, PR, PLETH |
| NIBP |
Yes |
| NIBP Parameters |
SYS, DIA, MEAN |
| NIBP Data Storage |
2,400 Groups |
| TEMP |
Yes |
| Temperature |
Dual-Channel |
| CO₂ |
Optional |
| CO₂ Parameters |
EtCO₂, INSCO₂, AWRR |
| Alarms |
Audible & Visual |
| Alarm Event Marking |
Yes |
| Drug Calculation |
Yes |
| Fanless Design |
Yes |
| Wi-Fi |
Optional |
| Central Monitoring |
Supported with Optional Wi-Fi |
| AC Power |
100–240V AC, 50/60Hz |
| Battery |
Built-in Large-Capacity Rechargeable Battery |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
