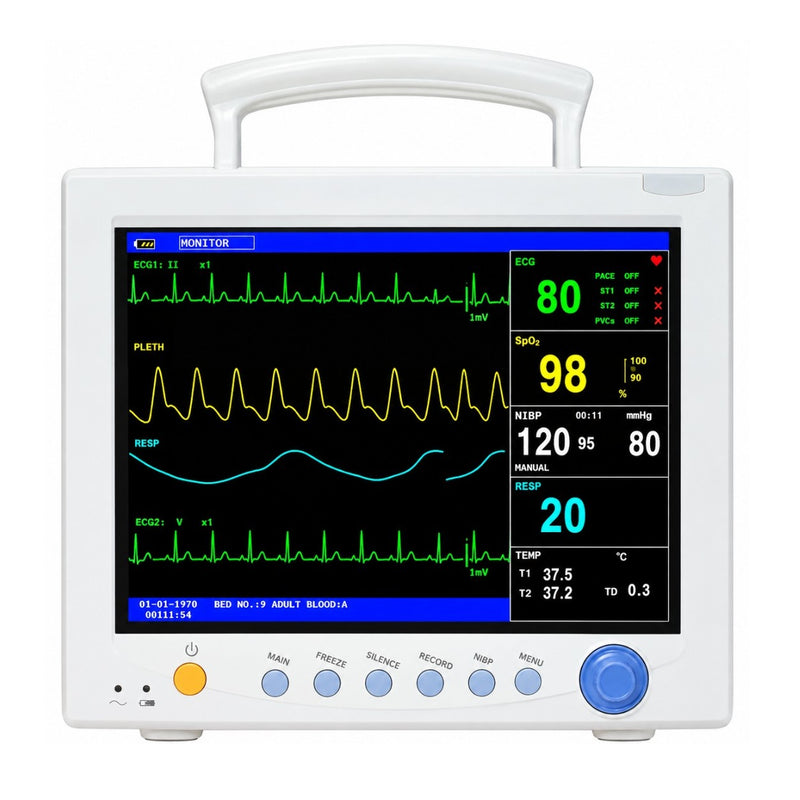

The Contec CMS7000 5 Para Patient Monitor is a large-screen multi-parameter patient monitor featuring a 12.1-inch TFT display and support for viewing up to 8 waveforms simultaneously.
The monitor is designed for continuous patient monitoring where clear visualization of multiple parameters is important. It features digital SpO₂ technology, NIBP measurement storage, alarm and arrhythmia event storage, central monitoring connectivity, and a built-in rechargeable battery.
Standard Parameter Configuration
- ECG
- RESP
- SpO₂
- PR
- NIBP
- Dual-channel TEMP
✅ Key Features
- 12.1-inch TFT color display
- Up to 8 waveforms displayed simultaneously
- 5-parameter monitoring configuration with ECG, RESP, SpO₂, PR, NIBP and dual-channel TEMP
- Digital SpO₂ technology
- Designed to help reduce ambient-light interference
- Supports SpO₂ measurement under weak perfusion
- Stores up to 4,800 NIBP measurements
- Stores up to 71 alarm events
- Stores up to 60 arrhythmia events
- Central monitoring connectivity
- Wired, Wi-Fi or 3G connectivity depending on configuration
- Built-in rechargeable battery
- Drug calculation function
- Defibrillation-proof design available with required special leads
- Optional IBP, EtCO₂ and 48 mm thermal recorder
12.1-Inch TFT Display
The CMS7000 features a 12.1-inch TFT display designed to provide clear visibility of multiple patient monitoring parameters and waveforms.
It can display up to 8 waveforms together, making it suitable for monitoring situations where several parameters need to be viewed simultaneously.
Standard Patient Monitoring Parameters
The standard configuration includes:
| Parameter |
Description |
| ECG |
Electrocardiography monitoring |
| RESP |
Respiration monitoring |
| SpO₂ |
Blood oxygen saturation monitoring |
| PR |
Pulse rate |
| NIBP |
Non-invasive blood pressure |
| TEMP |
Dual-channel temperature |
Digital SpO₂ Technology
The Contec CMS7000 uses digital SpO₂ technology designed to help reduce the effects of ambient light interference.
The supplied product information also states that the technology supports measurement under weak perfusion conditions.
NIBP, Alarm & Arrhythmia Event Storage
The monitor can store:
- Up to 4,800 NIBP measurements
- Up to 71 alarm events
- Up to 60 arrhythmia events
This provides stored monitoring information for review during patient monitoring workflows.
Central Monitoring Connectivity
The CMS7000 supports connection to a central monitoring system.
Connectivity options include:
- Wired connection
- Wi-Fi
- 3G
The available connectivity depends on the particular configuration.
Rechargeable Battery
A built-in rechargeable battery supports patient monitoring during movement or when the monitor is temporarily away from its primary power source.
Optional Monitoring Parameters
Depending on configuration, the CMS7000 can support additional options including:
IBP
Invasive Blood Pressure (IBP) monitoring is available as an optional parameter configuration.
EtCO₂
End-Tidal CO₂ (EtCO₂) is available as an optional parameter.
48 mm Thermal Recorder
A 48 mm thermal recorder is available as an optional configuration.
Drug Calculation Function
The CMS7000 includes a drug calculation function, providing additional support for clinical workflows involving medication-related calculations.
Defibrillation-Proof Design
A defibrillation-proof design is available when used with the required special leads, according to the supplied product information.
Technical Specifications
| Specification |
Details |
| Product |
Contec CMS7000 5 Para Patient Monitor |
| Display |
12.1-inch TFT |
| Waveform Display |
Up to 8 waveforms |
| Standard Parameters |
ECG, RESP, SpO₂, PR, NIBP, dual-channel TEMP |
| Optional Parameters |
IBP, EtCO₂ |
| Optional Recorder |
48 mm thermal recorder |
| SpO₂ Technology |
Digital SpO₂ |
| NIBP Storage |
Up to 4,800 measurements |
| Alarm Event Storage |
Up to 71 events |
| Arrhythmia Event Storage |
Up to 60 events |
| Central Monitoring |
Supported |
| Connectivity |
Wired, Wi-Fi or 3G depending on configuration |
| Battery |
Built-in rechargeable battery |
| Drug Calculation |
Supported |
| Defibrillation Protection |
Available with required special leads |
| Brand |
Contec Medical |
| Country of Origin |
China |
| Condition |
Brand New |
| Warranty |
1 Year, from manufacturer |
| Installation |
Not required |
| Estimated Delivery |
3–7 days |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
