Product Description

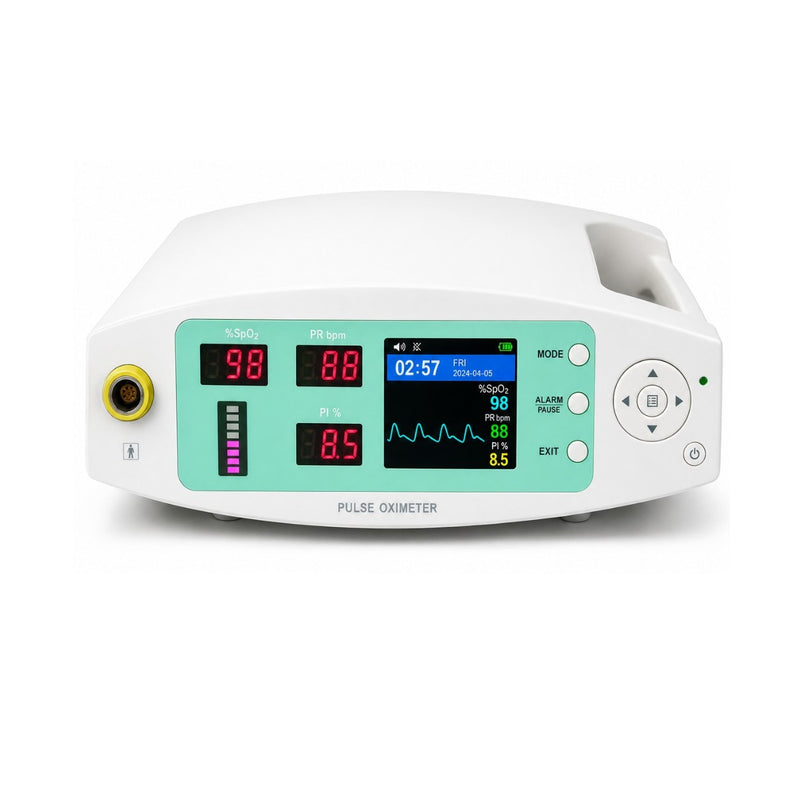

The Contec CMS 70A Tabletop Pulse Oximeter, also known as the Contec CMS70A, is a compact tabletop monitoring device designed for continuous, non-invasive measurement of blood oxygen saturation (SpO₂), pulse rate (PR), and perfusion index (PI). It uses an external SpO₂ probe and provides real-time numerical readings along with pulse waveform and bar-graph displays.
The Contec Tabletop Pulse Oximeter features a 2.4-inch TFT color screen with a 320 × 240 resolution, adjustable alarm limits, pulse-rate sound indication, battery status monitoring, data storage, and computer data transmission. Its combination of AC mains and rechargeable battery operation makes the CMS 70A Oximeter suitable for hospitals, clinics, emergency care areas, community healthcare settings, and other patient-monitoring environments.
The device is designed for convenient tabletop use while remaining relatively compact and portable. It can display SpO₂, pulse rate, PI, and pulse waveform information in real time, helping healthcare professionals monitor changes during routine clinical observation.
Key Features
-
Multi-Parameter Monitoring: Measures SpO₂, pulse rate, and perfusion index (PI).
-
SpO₂ Measurement: Measurement range of 0%–100% with 1% resolution.
-
Pulse Rate Measurement: Measures pulse rate from 30–250 bpm with 1 bpm resolution.
-
Perfusion Index Display: Displays PI from 0%–20% with 0.1% resolution.
-
2.4-Inch TFT Color Display: Provides clear numerical readings, pulse waveform, and bar-graph information.
-
Real-Time Pulse Waveform: Displays the pulse waveform for continuous visual monitoring.
-
Adjustable Alarms: High and low alarm limits can be configured for SpO₂ and pulse rate.
-
Audible Pulse Indication: Pulse-rate sound indication can be switched on or off.
-
Data Storage: Supports storage of measured patient data for later review.
-
Computer Data Transfer: Stored and real-time measurement data can be transmitted to a computer through the data connection.
-
Battery & Low-Voltage Indication: Displays battery capacity and provides a low-voltage warning.
-
Dual Power Operation: Can operate using AC mains power or its internal rechargeable lithium battery.
-
Weak Perfusion Performance: The device can display SpO₂ and pulse-rate values under specified weak pulse-filling conditions.
-
Adjustable Display Settings: Screen brightness and display mode can be adjusted.
-
External SpO₂ Probe: Uses a connected external oximeter probe for patient measurement.
-
Compact Tabletop Design: Approximate weight of 1 kg including the battery.
Technical Specifications
| Specification |
Details |
| Brand |
Contec |
| Product Name |
Contec CMS 70A Tabletop Pulse Oximeter |
| Model |
CMS 70A / CMS70A |
| Measurement Parameters |
SpO₂, Pulse Rate, Perfusion Index (PI) |
| Display |
2.4-inch color TFT screen + digital tube display |
| Screen Resolution |
320 × 240 pixels |
| SpO₂ Measurement Range |
0%–100% |
| SpO₂ Resolution |
1% |
| SpO₂ Accuracy |
±2% for 70%–100%; below 70% unspecified |
| Pulse Rate Range |
30–250 bpm |
| Pulse Rate Resolution |
1 bpm |
| Pulse Rate Accuracy |
±2 bpm or ±2%, whichever is larger |
| PI Measurement Range |
0%–20% |
| PI Resolution |
0.1% |
| Power Supply |
AC 100–240V, 50/60Hz |
| Internal Battery |
Rechargeable 3.6–4.2V lithium battery |
| Battery Working Time |
Not less than 1 hour after full charge |
| Power Consumption |
Approx. 350 mA |
| Safety Classification |
Class II, Type BF |
| Dimensions |
26.9 × 22.2 × 7.9 cm |
| Weight |
Approx. 1 kg including battery |
| SpO₂ Probe |
External probe |
| Data Connectivity |
Data transmission to computer |
| Alarm Functions |
SpO₂, pulse rate, measured-data over-limit and low-voltage alarms |
What's Inside the Box
Usage Instructions
-
Prepare the Power Supply: Ensure the rechargeable battery is installed correctly, or connect the CMS 70A to an appropriate AC power source.
-
Connect the SpO₂ Probe: Insert the external SpO₂ probe into the designated connector on the device.
-
Power On: Press the power button to switch on the Contec CMS70A.
-
Position the Patient's Finger: Place the patient's finger correctly inside the SpO₂ probe according to the probe design.
-
Remain Still: Keep the finger and probe reasonably still during measurement to help obtain stable readings.
-
View Measurements: Allow the device to process the signal. SpO₂, pulse rate, PI, pulse waveform, and bar-graph information will appear on the display.
-
Configure Alarm Limits: If required, set appropriate upper and lower alarm limits for SpO₂ and pulse rate according to the monitoring requirements.
-
Review or Store Data: Use the device's data-storage function where applicable. Stored data can be transferred to a computer through the supported data connection.
-
Monitor Battery Status: Check the battery-capacity and low-voltage indicators when operating from the internal battery.
-
Power Off: Switch off the device after monitoring is complete and disconnect external power if applicable.
Warranty & Support
-
Brand: Contec
-
Model: CMS 70A / CMS70A
-
Warranty: 1 Year Manufacturer Warranty
-
Country of Origin: China
-
Product Type: Tabletop Pulse Oximeter
-
Measurement: SpO₂, Pulse Rate, and Perfusion Index (PI)
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
