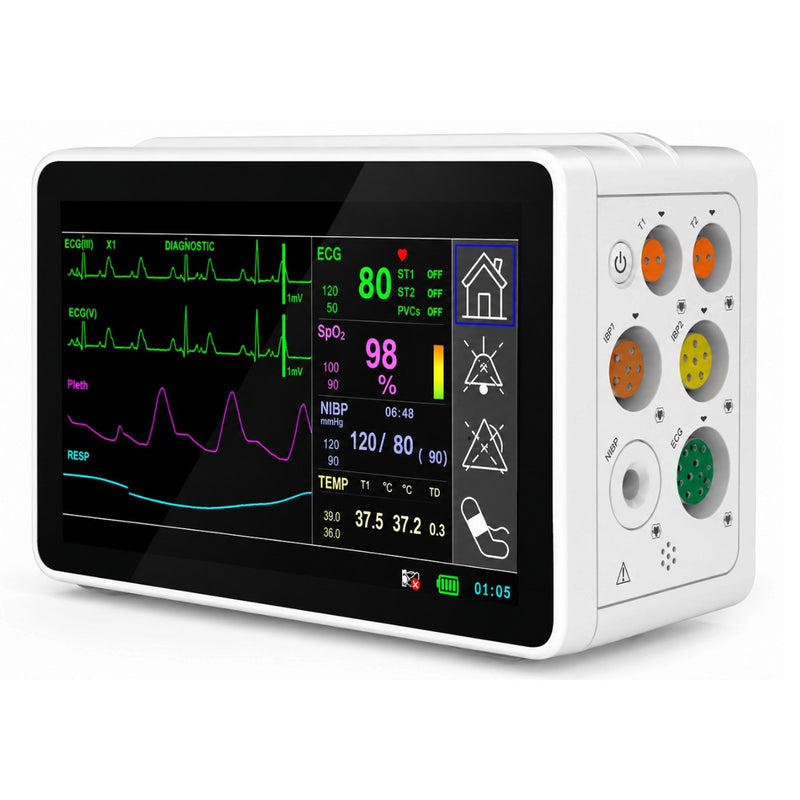

The Contec TS1 Modular Patient Monitor is a compact and portable transport monitor designed to measure and display critical physiological parameters for adult, pediatric, and neonatal patients.
It combines a 5-inch color TFT touchscreen, lightweight construction, rechargeable battery backup, fanless operation, and Central Monitoring System connectivity. The TS1 is designed for both internal and external patient transport, while supporting standard multi-parameter monitoring and optional advanced modules.
✅ Key Features
- Compact and portable transport patient monitor
- Suitable for adult, pediatric and neonatal patients
- 5-inch color TFT touchscreen
- Automatic lock screen to help prevent accidental operation
- Lightweight design weighing under 1.0 kg
- Standard ECG monitoring with 3/5-lead configuration
- RESP monitoring
- SpO₂ monitoring
- Pulse Rate (PR) monitoring
- NIBP monitoring
- Dual-channel TEMP monitoring
- Optional IBP
- Optional CO₂ / EtCO₂
- Optional 3-channel built-in thermal recorder/printer
- Fanless quiet design
- IP44 waterproof rating
- Built-in large-capacity rechargeable lithium battery
-
100–240V AC, 50/60Hz power input
- Wired or wireless Wi-Fi connection to Central Monitoring System
- HDMI expansion interface
5-Inch Color TFT Touchscreen
The TS1 features a 5-inch color TFT touchscreen designed for convenient viewing and operation during patient transport.
An automatic lock screen helps prevent accidental operations while the monitor is being transported or handled.
Standard Monitoring Parameters
The Contec TS1 supports a range of standard physiological parameters.
| Parameter |
Monitoring |
| ECG |
3/5-lead ECG |
| RESP |
Respiration |
| SpO₂ |
Blood oxygen saturation |
| PR |
Pulse Rate |
| NIBP |
Non-invasive blood pressure |
| TEMP |
Dual-channel body temperature |
These parameters provide core vital-sign monitoring for adult, pediatric, and neonatal patients.
Optional Monitoring Modules
The modular design allows additional monitoring capabilities to be added according to configuration.
IBP
Invasive Blood Pressure (IBP) is available as an optional parameter/module.
CO₂ / EtCO₂
Carbon dioxide monitoring, including EtCO₂, is available as an optional module.
3-Channel Thermal Recorder
A 3-channel built-in thermal recorder/printer is available as an optional configuration.
Lightweight Transport Design
The TS1 is designed specifically for patient transport and weighs under 1.0 kg.
Its lightweight construction makes it suitable for:
- Internal patient transport
- External patient transport
- Patient transfer between departments
- Transport monitoring environments
Fanless & IP44 Design
The TS1 uses a fanless quiet design, helping reduce operating noise during patient transport.
It also has an IP44 waterproof rating.
The supplied product information describes the fanless design as helping reduce noise and the possibility of cross-infection.
Rechargeable Battery Backup
The TS1 supports 100–240V AC, 50/60Hz power input and includes a built-in large-capacity rechargeable lithium battery.
The battery provides backup power to support monitoring when the device is being transported or when external power is temporarily unavailable.
Central Monitoring System Connectivity
The TS1 supports connection to a Central Monitoring System (CMS) through:
- Wired connectivity
- Wireless Wi-Fi connectivity
Technical Specifications
| Specification |
Details |
| Product |
Contec TS1 Modular Patient Monitor |
| Type |
Portable Transport Patient Monitor |
| Patient Types |
Adult, Pediatric, Neonate |
| Display |
5-inch Color TFT Touchscreen |
| Screen Protection |
Automatic lock screen |
| ECG |
3/5-lead |
| RESP |
Standard |
| SpO₂ |
Standard |
| PR |
Standard |
| NIBP |
Standard |
| TEMP |
Dual-channel standard |
| IBP |
Optional |
| CO₂ / EtCO₂ |
Optional |
| Thermal Recorder |
Optional 3-channel built-in recorder/printer |
| Weight |
Under 1.0 kg |
| Design |
Fanless |
| Waterproof Rating |
IP44 |
| Power Input |
100–240V AC, 50/60Hz |
| Battery |
Built-in large-capacity rechargeable lithium battery |
| Central Monitoring |
Supported |
| Connectivity |
Wired / Wireless Wi-Fi |
| HDMI |
Expansion interface |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
