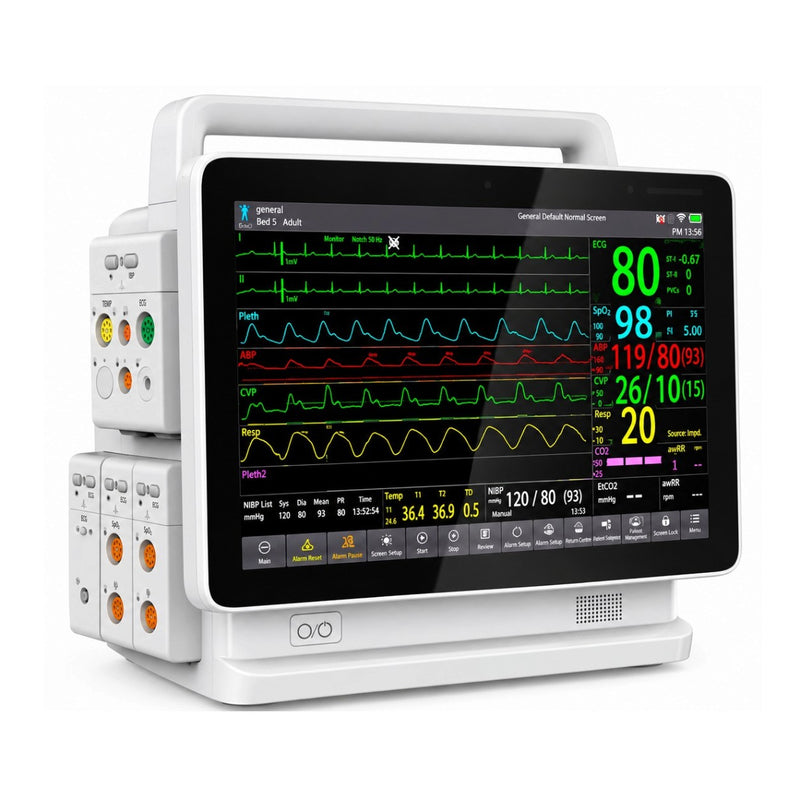

The Contec TS13 Modular Patient Monitor is an advanced, scalable vital signs monitoring system designed for comprehensive monitoring of adult, pediatric, and neonatal patients across clinical environments such as the ICU, operating room (OR), CCU, and emergency room (ER).
The TS13 features a 13.3-inch high-definition TFT touchscreen, five flexible module slots with hot-pluggable modules, and a fanless silent design. Its modular architecture allows parameter modules to be added or exchanged according to clinical requirements.
The monitor supports standard monitoring of ECG, RESP, SpO₂, PR, NIBP, and TEMP, with optional support for IBP, CO₂/EtCO₂, EEG, EMG, and a 3-channel thermal recorder.
✅ Key Features
- 13.3-inch HD TFT touchscreen
- Five flexible slots for hot-pluggable modules
- Designed for adult, pediatric and neonatal monitoring
- ECG with 5-lead monitoring
- Full-lead ST-segment analysis
- Pacing analysis
- RESP monitoring
- SpO₂ monitoring
- Pulse Rate (PR) monitoring
- NIBP monitoring
- Temperature (TEMP) monitoring
- Optional IBP
- Optional CO₂ / EtCO₂
- Optional EEG and EMG
- Optional 3-channel built-in thermal recorder/printer
- Detection of 23 types of arrhythmias
- Holographic waveform review and storage
- Waveform freezing
- Clinical calculation functions
- Three-level audible and visual alarm system
- Independent physiological and technical alarm indicators
- Wired and Wi-Fi connectivity
- Central Monitoring System connectivity
- USB and LAN ports
- HDMI output for large external displays
- AC/DC power input
- Built-in detachable large-capacity lithium-ion battery
- Fanless, quiet and energy-saving design
- Luminous ON/OFF button for night operation
13.3-Inch HD Touchscreen
The TS13 features a 13.3-inch high-definition TFT touch screen designed for clear visualization and convenient operation.
The interface includes:
- Multi-interface selection
- Touchscreen operation
- Single-button operation
- Luminous ON/OFF button
The illuminated button is particularly useful when operating the monitor in low-light or nighttime environments.
HDMI External Display
An HDMI port allows the TS13 to connect to a large external display, providing an additional option for viewing patient monitoring information.
Modular Five-Slot Design
The TS13 incorporates five flexible module slots.
Its modular architecture supports hot-pluggable parameter modules, allowing compatible modules to be inserted or exchanged without restarting the device, according to the supplied product information.
This provides flexibility for configuring the monitor according to different clinical requirements.
Standard Monitoring Parameters
The TS13 supports the following standard monitoring parameters:
ECG
The ECG system supports:
- 5-lead ECG
- Full-lead ST-segment analysis
- Pacing analysis
RESP
RESP monitoring provides respiration monitoring as part of the standard parameter configuration.
SpO₂
The TS13 supports SpO₂ monitoring as a standard parameter.
PR
Pulse Rate (PR) monitoring is included in the standard configuration.
NIBP
The monitor supports Non-Invasive Blood Pressure (NIBP) monitoring.
TEMP
Temperature (TEMP) monitoring is included in the standard parameter configuration.
Advanced & Optional Parameters
Depending on configuration, the TS13 can support additional parameters.
| Optional Parameter |
Function |
| IBP |
Invasive Blood Pressure |
| CO₂ / EtCO₂ |
Carbon dioxide monitoring |
| EEG |
Electroencephalography |
| EMG |
Electromyography |
| Thermal Recorder |
Optional 3-channel built-in printer |
The exact configuration should be confirmed according to the required modules.
ECG, ST & Arrhythmia Analysis
The TS13 provides advanced ECG analysis functions, including:
- 5-lead ECG monitoring
- Full-lead ST-segment analysis
- Pacing analysis
- Detection of 23 types of arrhythmias
These functions provide additional ECG analysis capabilities for clinical monitoring.
Waveform Review & Storage
The TS13 supports holographic waveform review and storage.
Additional waveform functions include:
- Waveform review
- Waveform storage
- Waveform freezing
These functions allow clinicians to review monitoring information and examine waveform data.
Clinical Calculation Functions
The monitor provides a range of clinical calculation functions, including calculations related to:
- Drug concentrations
- Titration tables
- Hemodynamics
The supplied information describes these as part of the monitor's extensive clinical calculation functions.
Three-Level Alarm System
The TS13 features three-level audible and visual alarms.
The alarm system provides independent indicators for:
- Physiological alarms
- Technical alarms
Central Monitoring Connectivity
The TS13 supports connectivity with a Central Monitoring System through:
The monitor also includes:
- USB port
- LAN port
- HDMI interface
Fanless Silent Design
The TS13 uses a fanless architecture designed for:
- Quiet operation
- Energy efficiency
- Reduced mechanical airflow
This makes the monitor suitable for clinical environments where quiet operation is desirable.
Power & Battery Backup
The monitor supports AC/DC power input from 100–240V.
It also incorporates a detachable large-capacity lithium-ion battery, providing battery backup for continued monitoring when required.
Technical Specifications
| Specification |
Details |
| Product |
Contec TS13 Modular Patient Monitor |
| Type |
Modular Patient Monitor |
| Patient Types |
Adult, Pediatric, Neonatal |
| Display |
13.3-inch HD TFT touchscreen |
| Module Slots |
5 |
| Module Type |
Hot-pluggable parameter modules |
| Standard ECG |
5-lead |
| ST Analysis |
Full-lead ST-segment analysis |
| Pacing Analysis |
Supported |
| Arrhythmia Detection |
23 types |
| Standard Parameters |
ECG, RESP, SpO₂, PR, NIBP, TEMP |
| Optional Parameters |
IBP, CO₂/EtCO₂, EEG, EMG |
| Thermal Recorder |
Optional 3-channel built-in recorder |
| Waveform Review |
Holographic waveform review/storage |
| Waveform Freeze |
Supported |
| Clinical Calculations |
Drug concentration, titration, hemodynamics, etc. |
| Alarm |
Three-level audible & visual |
| Alarm Indicators |
Independent physiological & technical |
| Central Monitoring |
Supported |
| Connectivity |
Wired & Wi-Fi |
| Ports |
USB, LAN, HDMI |
| Power Input |
AC/DC 100–240V |
| Battery |
Detachable large-capacity lithium-ion |
| Cooling |
Fanless |
| Clinical Environments |
ICU, OR, CCU, ER and other clinical settings |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
