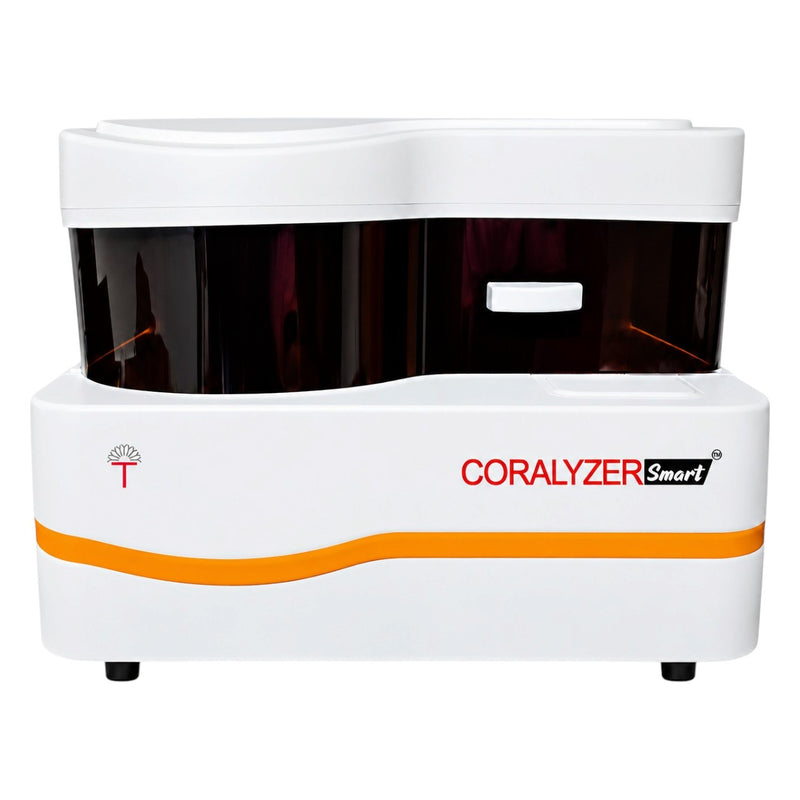

The Coral Coralyzer Smart Fully Automatic Biochemistry Analyzer is a random-access clinical chemistry analyzer designed for routine biochemical and turbidimetric testing in diagnostic laboratories. Its automated workflow helps reduce manual intervention while supporting efficient processing of clinical chemistry assays and immunoturbidimetric tests using compatible reagents.
The analyzer features refrigerated reagent storage, a Teflon-coated mixer, and a reaction system with 50 plastic cuvettes. With a compact laboratory footprint relative to many larger automated systems, it is designed for clinical laboratories that need automated biochemical testing and onboard reagent management.
Key Features of Coral Coralyzer Smart
-
Fully automatic operation: Designed to reduce manual intervention during routine testing.
-
Random-access testing: Allows tests to be run as needed.
-
Clinical chemistry and turbidimetry: Supports routine biochemical and compatible immunoturbidimetric assays.
-
Flexible test methods: Supports end-point, fixed-time, and kinetic methods.
-
Teflon-coated mixer: Designed to simplify cleaning and help reduce contamination.
-
Reaction cuvettes: Uses 50 plastic cuvettes.
-
Flexible reagent handling: Supports reagent volumes from 20–300 µL in 1 µL increments.
-
Optional barcode reader: A reagent barcode reader is listed as an optional feature.
-
Halogen lamp optics: Uses a halogen lamp as the light source.
-
Automated workflow: Helps laboratories streamline routine testing processes.
Test Menu and Applications
The Coral Coralyzer Smart is designed to support the following testing categories, depending on compatible reagents and configured methods:
-
Routine clinical chemistry: Liver function, kidney function, and metabolic assays.
-
Colorimetric assays: Biochemical testing using colorimetric measurement.
-
Turbidimetric assays: Selected immunoturbidimetric tests.
-
End-point tests: Assays measured at a defined endpoint.
-
Fixed-time tests: Assays measured over a specified time interval.
-
Kinetic tests: Assays evaluated by monitoring reaction changes over time.
Technical Specifications
| Specification |
Details |
| Brand |
Coral |
| Model |
Coralyzer Smart |
| Analyzer type |
Fully automatic random-access analyzer |
| Applications |
Clinical chemistry and turbidimetry |
| Test principle |
Colorimetric and turbidimetric |
| Test methods |
End-point, fixed-time, kinetic |
| Test speed |
100 tests/hour in the supplied technical specifications |
| Throughput note |
Approximately 200 tests/hour is also stated in the product description; confirm the rated throughput for the offered configuration |
| Reagent positions |
40 listed in the technical specifications |
| Reagent capacity note |
Up to 80 positions is stated in the product highlights; confirm the exact configuration |
| Reagent barcode reader |
Optional |
| Sample positions |
Up to 40, according to the product highlights |
| Reaction cuvettes |
50 plastic cuvettes |
| Mixing system |
Teflon-coated mixer |
| Optical light source |
Halogen lamp |
| Reagent refrigeration |
2–8°C, as stated in the product description |
| Power supply |
AC 110/220 V, 50/60 Hz |
| Dimensions |
74.5 × 54 × 53 cm |
| Weight |
48.4 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
