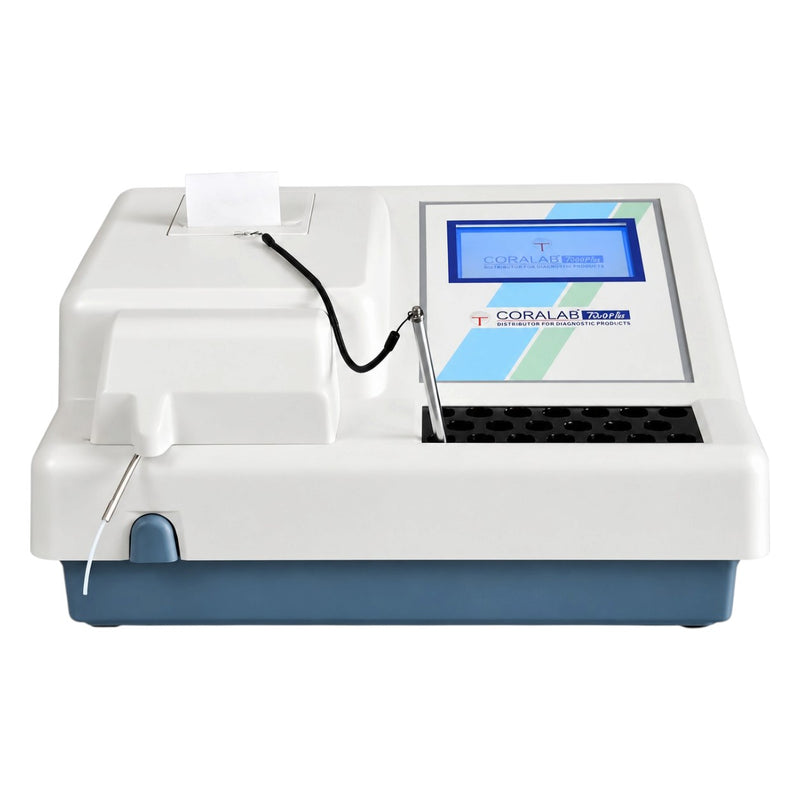

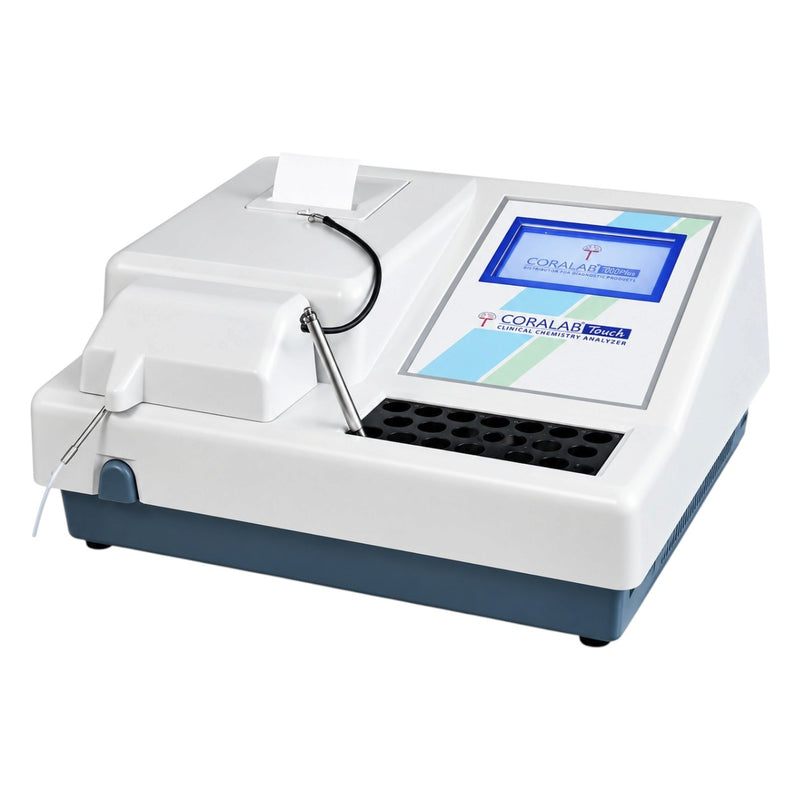

The Coralab Touch Biochemistry Analyzer is a semi-automated clinical chemistry and turbidimetry analyzer manufactured by Coral Clinical Systems, a division of Tulip Diagnostics Pvt. Ltd.
The Coralab Touch features a 7-inch color touchscreen, an open-system configuration compatible with reagents from different manufacturers, and an optical system with automatic filter selection. It supports up to 180 programmable test parameters and stores up to 6,000 test results, making it suitable for routine laboratory testing.
Key Features of Coralab Touch
-
Semi-Automatic Operation: Designed for clinical chemistry and turbidimetry testing.
-
7-Inch Color Touchscreen: Provides a touchscreen interface for convenient operation.
-
180 Programmable Test Parameters: Allows programming of up to 180 test items.
-
6,000 Test Result Memory: Stores up to 6,000 test results.
-
Open-System Configuration: Supports the use of reagents from different manufacturers.
-
Automatic Filter Selection: Simplifies wavelength selection during operation.
-
Stable Optical System: Designed for consistent photometric measurements.
-
Multiple Operating Modes: Supports absorbance, end-point, fixed-time, kinetic, multipoint, and sample blank modes.
-
Built-In Thermal Printer: Enables direct printing of test results.
-
RS-232 Serial Output: Provides a standard serial communication port.
-
Compact Benchtop Design: Measures 35.0 × 39.0 × 18.4 cm.
-
Lightweight Construction: Weighs approximately 6 kg.
Technical Specifications
| Specification |
Details |
| Product Name |
Coralab Touch Biochemistry Analyzer |
| Brand |
Coral Clinical Systems |
| Model |
Touch |
| Analyzer Type |
Semi-automatic biochemistry analyzer |
| Applications |
Clinical chemistry and turbidimetry |
| Operating Principle |
Absorbance photometry |
| Operating Modes |
Absorbance, End-point, Fixed Time, Kinetic, Multipoints, Sample Blank |
| Programmable Test Parameters |
180 |
| Test Result Storage |
Up to 6,000 results |
| Optical Wavelengths |
340, 405, 492, 510, 546, 578, 620 nm |
| Light Source |
6 V, 10 W halogen lamp |
| Display |
7-inch color touchscreen |
| Software Interface |
Touchscreen interface, English version |
| Reagent System |
Open system |
| Printer |
Built-in thermal printer |
| Serial Output |
Standard RS-232 port |
| Power Supply |
220 V / 110 V ±10%, 50–60 Hz |
| Dimensions (W × L × H) |
35.0 × 39.0 × 18.4 cm |
| Weight |
6 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
