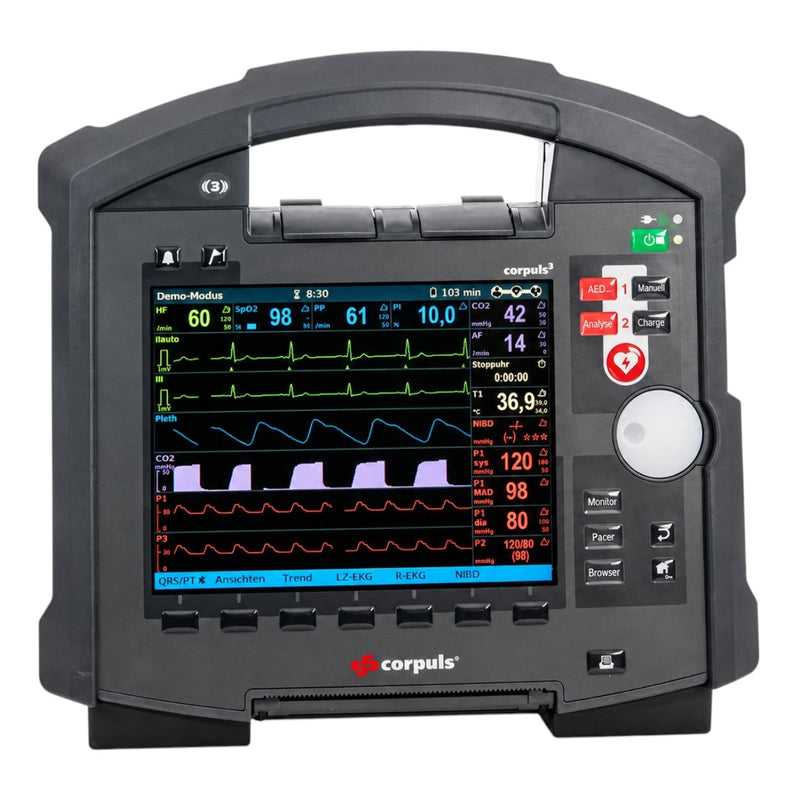

The corpuls3T is a modular emergency medical system built around three distinct, wirelessly communicating modules: the Monitoring Unit, Patient Box, and Defibrillator/Pacer.
This modular architecture separates the control/display functions from the patient-connected data collection and defibrillation/pacing functions. The result is a flexible system designed for emergency transport and critical-care workflows.
Key Features
- Three-module modular architecture
- Wireless communication between modules
-
Monitoring Unit with 8.4-inch Touch'N'Dial display
-
Up to 6 curves and 13 vital parameters
- Integrated 4G modem, WLAN and LAN
- Wide 106 mm thermal printer
- Simultaneous real-time printing of up to 6 curves
-
Patient Box stays with the patient during transport
- Continuous collection of patient vital parameters
- Independent monochrome display on Patient Box
- Local data storage
- 12-lead ECG, SpO₂, CO₂/capnography, NIBP and temperature monitoring
-
Removable Defibrillator/Pacer
-
Biphasic defibrillation from 2–200J
- AED and manual defibrillation modes
- Transcutaneous pacing
-
primeCPR feedback sensor integration
- IP55 protection on the Monitoring Unit
-
Operating temperature of −20°C to +55°C for the Monitoring Unit
Three-Module Modular Design
The corpuls3T separates into three distinct modules that communicate wirelessly.
This architecture consists of:
- Monitoring Unit – Control Center
- Patient Box – Data Collector
- Defibrillator/Pacer
Each module has a dedicated role within the emergency-care system.
1. Monitoring Unit – Control Center
The Monitoring Unit serves as the primary control and visualization center.
8.4-Inch Touch'N'Dial Display
The unit features an 8.4-inch Touch'N'Dial color display that supports both:
- Touch operation
- Button operation
It can display up to:
- 6 curves
- 13 vital parameters
This provides a comprehensive view of the patient's monitored information.
Connectivity
The Monitoring Unit incorporates multiple communication interfaces:
-
Integrated 4G modem
- WLAN
- LAN port
These connectivity options support data transmission and telemedicine workflows, including corpuls.mission LIVE.
Integrated Printer
A wide 106 mm printer is integrated into the Monitoring Unit.
It can provide simultaneous real-time printouts of up to 6 curves.
Monitoring Unit Specifications
| Parameter |
Specification |
| Weight |
2.9 kg including battery and printer paper |
| Display |
8.4-inch Touch'N'Dial color display |
| Display capacity |
Up to 6 curves / 13 vital parameters |
| Printer |
106 mm wide printer |
| Printer capability |
Up to 6 curves simultaneously |
| Connectivity |
4G, WLAN, LAN |
| Protection |
IP55 |
| Operating temperature |
−20°C to +55°C |
2. Patient Box – Data Collector
The Patient Box is designed to remain directly with the patient during transport.
Its modular placement helps eliminate trailing cables between the patient and the Monitoring Unit.
Patient Box Functions
The Patient Box provides continuous collection of patient information and includes:
- Independent monochrome display
- Local data storage
- Patient-connected sensors and interfaces
Supported Parameters
The supplied specifications identify monitoring for:
- 12-lead ECG
- SpO₂
- Capnography / CO₂
- NIBP
- Temperature
Patient Box Specifications
| Parameter |
Specification |
| Weight |
1.1–1.4 kg |
| Primary function |
Patient-side data collection |
| Display |
Independent monochrome display |
| Data storage |
Local |
| ECG |
12-lead |
| SpO₂ |
Supported |
| Capnography |
CO₂ |
| NIBP |
Supported |
| Temperature |
Supported |
The supplied information does not specify the exact operating temperature, IP rating or battery runtime for the Patient Box.

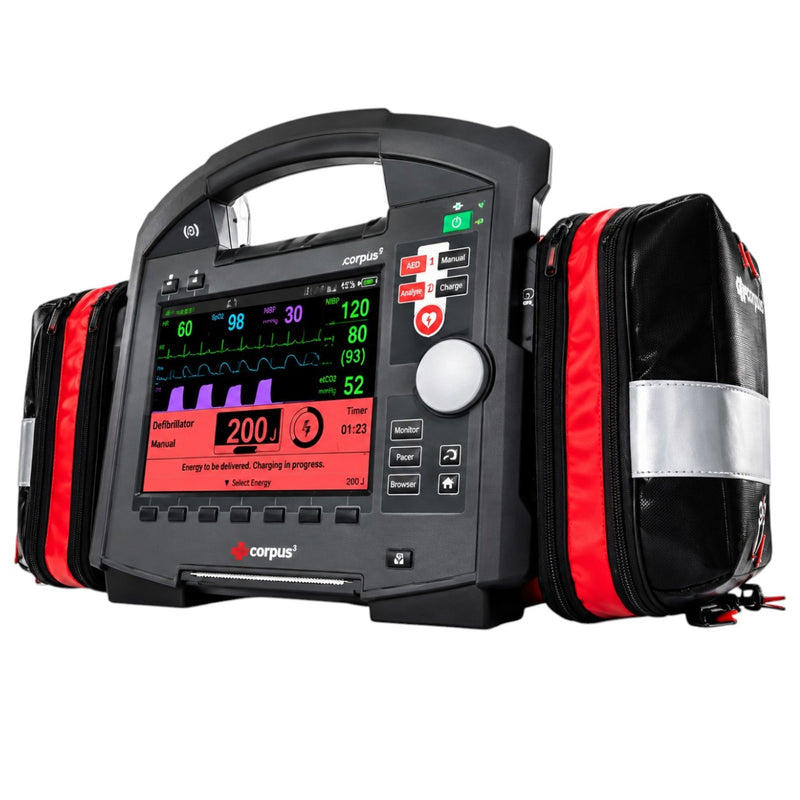

3. Defibrillator / Pacer
The third module is the removable Defibrillator/Pacer.
It provides emergency cardiac intervention capabilities independently within the modular system.
Defibrillation
The device uses a biphasic waveform with an energy range of:
2–200 Joules
It supports:
- AED mode
- Manual defibrillation
Transcutaneous Pacing
The Defibrillator/Pacer also provides transcutaneous pacing, allowing external cardiac pacing when clinically indicated.
primeCPR Feedback
The system supports integration with the primeCPR feedback sensor, providing CPR-related feedback during resuscitation.
Technical Specifications
| Specification |
Details |
| Product |
corpuls3T |
| System type |
Modular monitor-defibrillator |
| Architecture |
3 wirelessly communicating modules |
| Monitoring Unit |
Control center |
| Patient Box |
Patient-side data collector |
| Defibrillator/Pacer |
Defibrillation and pacing |
| Monitoring display |
8.4-inch Touch'N'Dial color display |
| Display capacity |
Up to 6 curves / 13 vital parameters |
| Printer |
106 mm wide |
| Connectivity |
4G, WLAN, LAN |
| Patient ECG |
12-lead |
| SpO₂ |
Yes |
| CO₂ |
Capnography |
| NIBP |
Yes |
| Temperature |
Yes |
| Defibrillation |
Biphasic |
| Defibrillation energy |
2–200J |
| Defibrillation modes |
AED and Manual |
| Pacing |
Transcutaneous |
| CPR feedback |
primeCPR sensor integration |
| Monitoring Unit protection |
IP55 |
| Monitoring Unit operating temperature |
−20°C to +55°C |
| Monitoring Unit weight |
2.9 kg |
| Patient Box weight |
1.1–1.4 kg |
| Defibrillator/Pacer weight |
2.5 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
