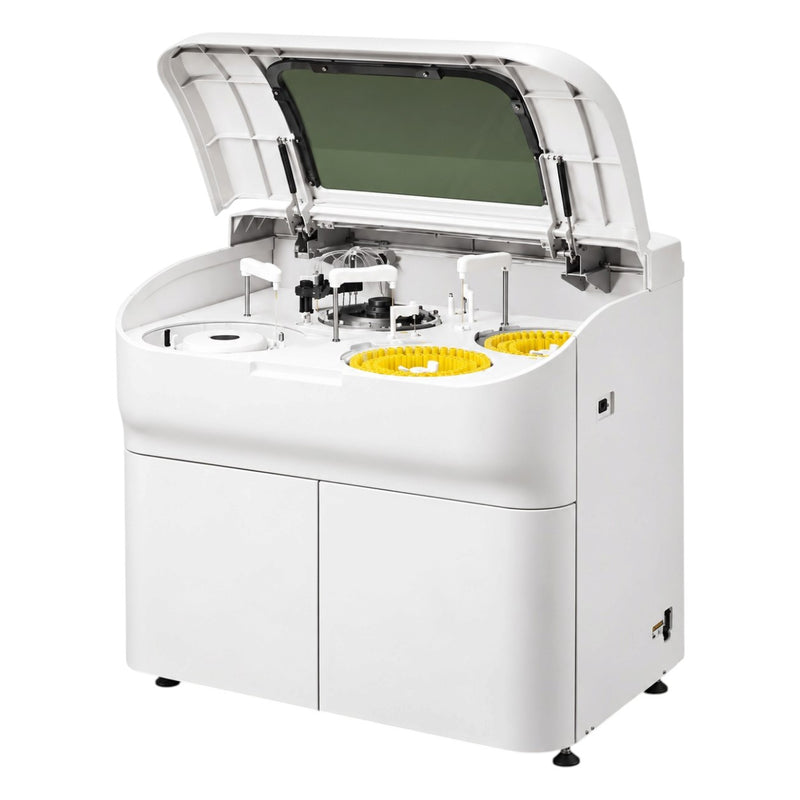

The DIRUI CS-400 is a fully automatic, high-performance biochemistry analyzer designed for medium to large laboratories. It delivers fast, accurate testing through advanced photometry, precise pipetting, and stable temperature control. It helps labs process a high volume of samples quickly with reliable results.
Key Highlights
-
Up to 400 tests/hour throughput
-

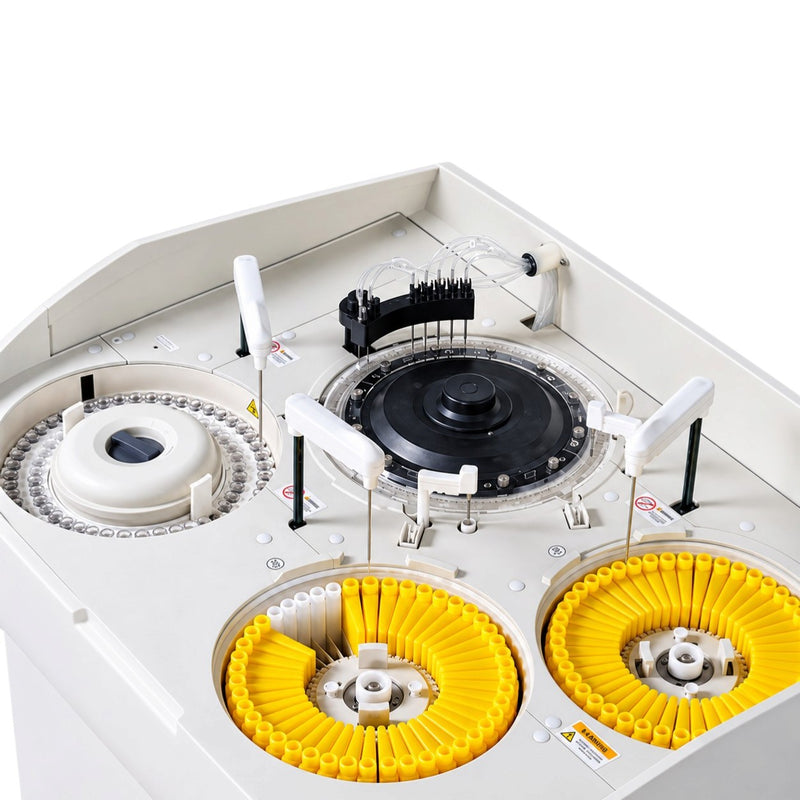

Dual reagent disk with continuous cooling (5–15°C)
-
115 sample positions with STAT priority
-
High-precision sampling using ceramic pistons
-
Automatic dilution, rerun, clot detection, and volume detection
-
12-channel photodiode array for fast multi-wavelength reading
-
Low reagent consumption: total reaction volume as low as 150 µL
-
Water-degassing technology for ultra-precise pipetting
-
Multiple QC functions including Westgard rules
-
User-friendly English graphical software
Test Menu
-
Colorimetric tests
-
Turbidimetric tests
-
End-point assays
-
Kinetic assays
-
Fixed-time assays
-
Electrolytes (Na⁺, K⁺, Cl⁻) – optional ISE module
-
Supports single, double, and multi-reagent testing
-
Compatible with a wide range of clinical chemistry assays
Technical Specifications
| Specification |
Details |
| Type |
Fully automatic, discrete, STAT-priority analyzer |
| Throughput |
400 tests/hour (photometry) |
| ISE Throughput (Optional) |
Up to 400 tests/hour |
| Principles |
Colorimetry, turbidimetry |
| Methods |
End-point, Kinetics, Fixed-time |
| OD Linear Range |
0–3.3 Abs |
| Light Source |
20W/12V long-life lamp, water-cooled |
| Monochromator |
Holographic concave flat-field grating |
| Detector |
12-channel photodiode array |
| Wavelengths |
340, 380, 405, 450, 480, 570, 600, 660, 700, 750 or 800 nm |
| Photometry Technology |
Rear spectrophotometry, cluster-optical path |
| Total Sample Positions |
115 |
| Routine Samples |
50 |
| STAT Samples |
20 |
| Calibration Positions |
34 |
| QC Positions |
8 |
| Supported Tube Size |
Ø12–16 mm × 25–100 mm |
| Sample Volume |
2–35 µL (0.1 µL steps) |
| Functions |
Liquid level detection, clot detection, collision protection, automatic dilution and rerun |
| Reagent Disk |
Double disk, 45 × 2 positions (90 total) |
| Reagent Cooling |
Continuous cooling at 5–15°C |
| Reagent Volume |
20–350 µL (1 µL steps) |
| Reagent Barcode |
Code-128 |
| Reagents per Test |
Up to 4 reagents (R1–R4) |
| Reaction Volume |
150–450 µL |
| Reaction Temperature |
37°C ± 0.1°C |
| Stirring |
2 stirrers, Teflon-coated, flat-paddle design |
| Cuvette |
Long-life rigid plastic, UV-compatible |
| Cuvette Washing |
7 stops, 11-step warm water rinsing |
| Water Degassing |
Built-in degassing device |
| Temperature Control |
PID precision heating |
