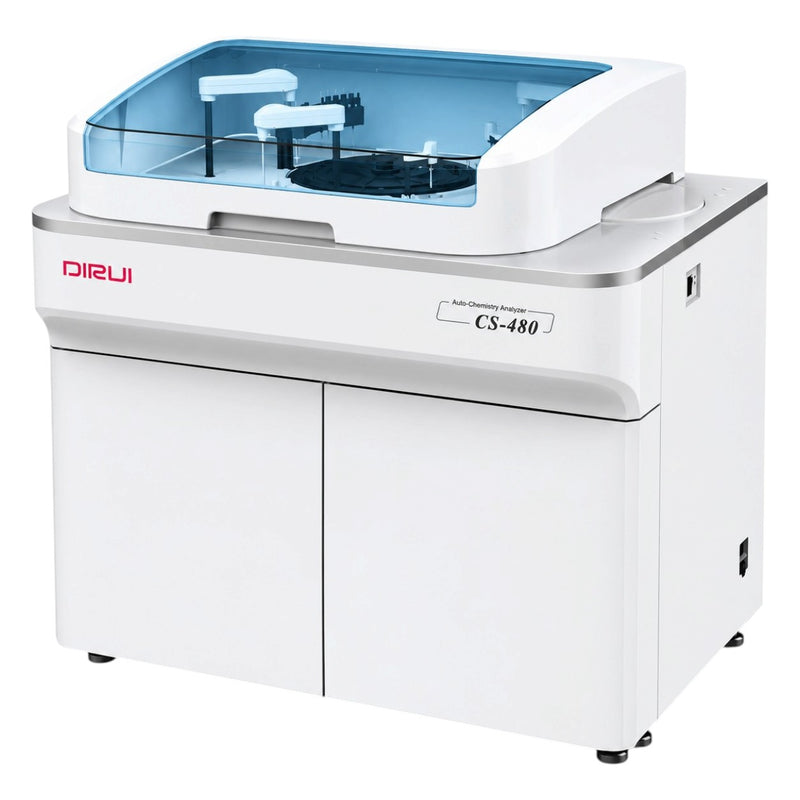

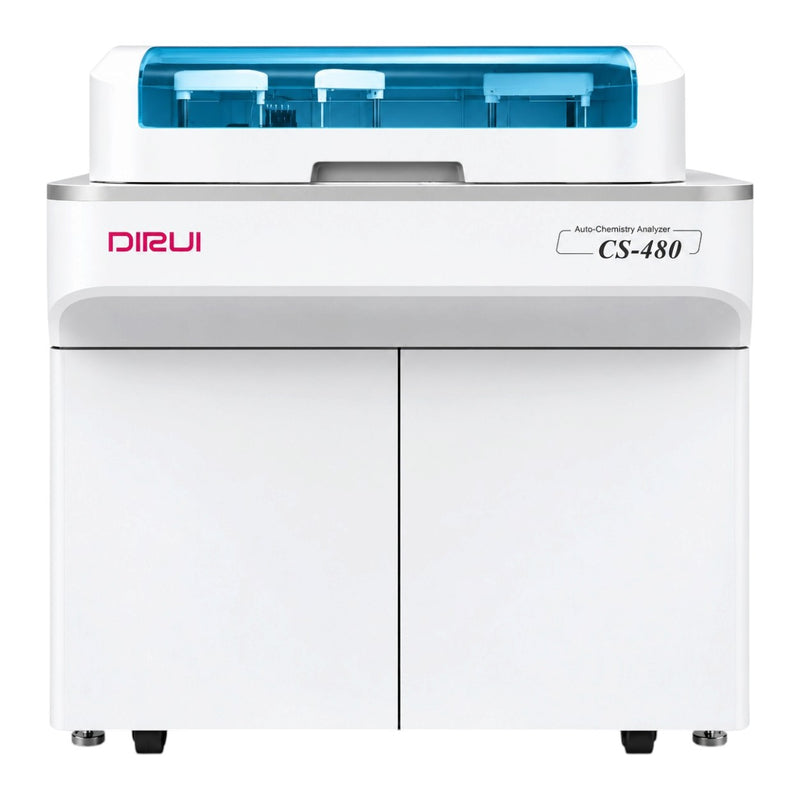

The Dirui CS-480 Auto-Chemistry Analyzer is a fully automatic, high-throughput biochemistry analyzer designed for medium to large laboratories. It offers fast testing, accurate results, advanced optical technology, STAT priority, and support for photometric and electrolyte tests. With a compact size and robust performance, it ensures smooth workflow and reliable diagnostics.
Test Menu
-
Hepatic panel (ALT, AST, ALP, GGT, CHE, TB, DB, TBA, GLDH, ICDH, etc.)
-
Renal panel (BUN, UA, CRE, Cystatin C, etc.)
-
Diabetes panel (Glucose oxidase, Hexokinase, HbA1c, Fructosamine)
-
Lipid panel (TC, TG, HDL-C, LDL-C, APOA1, APOB, LP(a))
-
Cardiac panel (CK, CK-MB, LDH, HBDH, HCY, cTnI, Myoglobin)
-
Pancreatitis panel (Amylase, P-AMY, Lipase)
-
Immune panel (IgA, IgG, IgM, C3, C4)
-
Inorganic & anemia panel (Calcium, Mg, Phosphorus, CO₂, Zinc, Iron, TIBC, Ferritin, Transferrin)
Key Highlights
-
Compact system with powerful functions
-
High throughput: up to 400 tests/hour (photometric) and 800 tests/hour with ISE
-
115 sample positions with flexible tube support
-
112 reagent positions with barcode tracking
-
Whole blood HbA1c testing, no centrifugation needed
-
Intelligent reagent management with volume tracking
-
Real-time QC with Westgard rules
-
Fully automatic cuvette cleaning with 11-step warm-water wash
-
Liquid level, clot detection, and collision protection for safety
Technical Specifications
| Specification |
Details |
| Type |
Fully automatic, discrete, STAT priority |
| Throughput |
400 T/H photometry; 800 T/H with ISE |
| Principles |
Colorimetry, Turbidimetry, ISE |
| Methods |
End-point, Kinetics, Fixed-time |
| On-board items |
110 colorimetric + 3 ISE |
| Optical system |
20W/12V halogen lamp, photodiode LED array |
| Wavelength range |
340–800 nm |
| OD linear range |
0–3.6 Abs |
| Reaction cuvettes |
120 optical plastic cuvettes |
| Reaction volume |
120–450 µL |
| Reaction temperature |
37°C ± 0.1°C |
| Cuvette washing |
7 stations / 11 steps |
| Waste management |
High & low concentration waste separation |
| Sample positions |
115 |
| Sample volume |
1.5–35 µL (0.1 µL steps) |
| Tube types |
Standard cups, blood tubes Ø10–13 mm × 75–100 mm |
| Sample detection |
Liquid-level detection, clot detection, collision protection |
| Sample barcode types |
Code 128, Code 39, Code 93, I 2of5, UPC/EAN |
| Reagent positions |
112 (double disk) |
| Reagent volume |
20–350 µL (1 µL steps) |
| Reagent barcode |
Code128 |
| Reagent management |
Real-time reagent volume calculation |
| PC operating system |
Windows 7 / Windows 10 |
| Software |
English language GUI |
| Connectivity |
RJ45 |
| Printing |
Custom report formats |
| Dimensions |
106 × 79 × 115 cm |
| Weight |
300 kg |
| Power supply |
AC 220 ± 22 V, 50 Hz ± 1 Hz, 2000 VA |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
