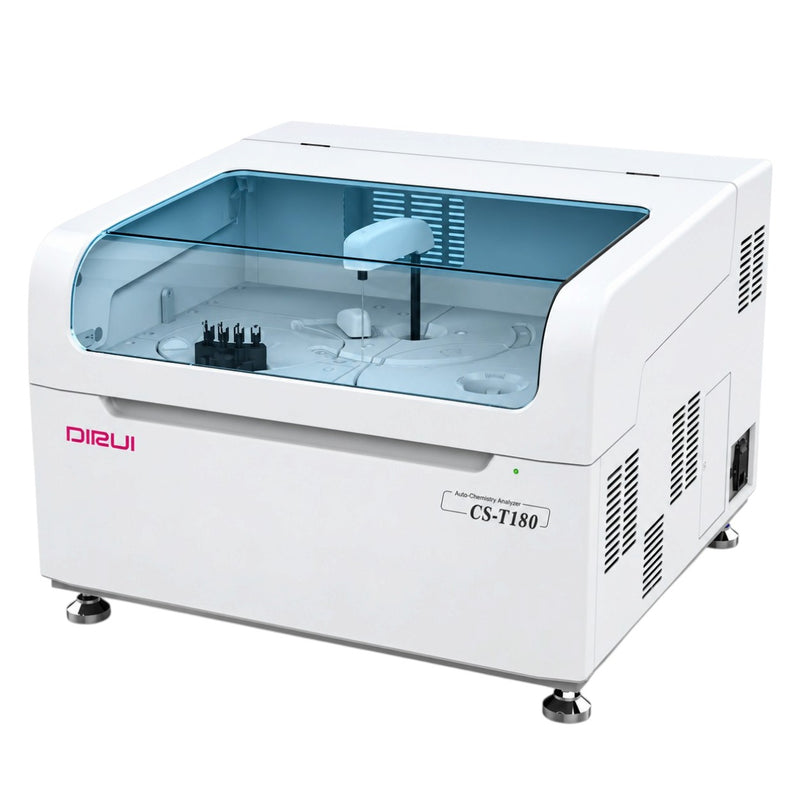

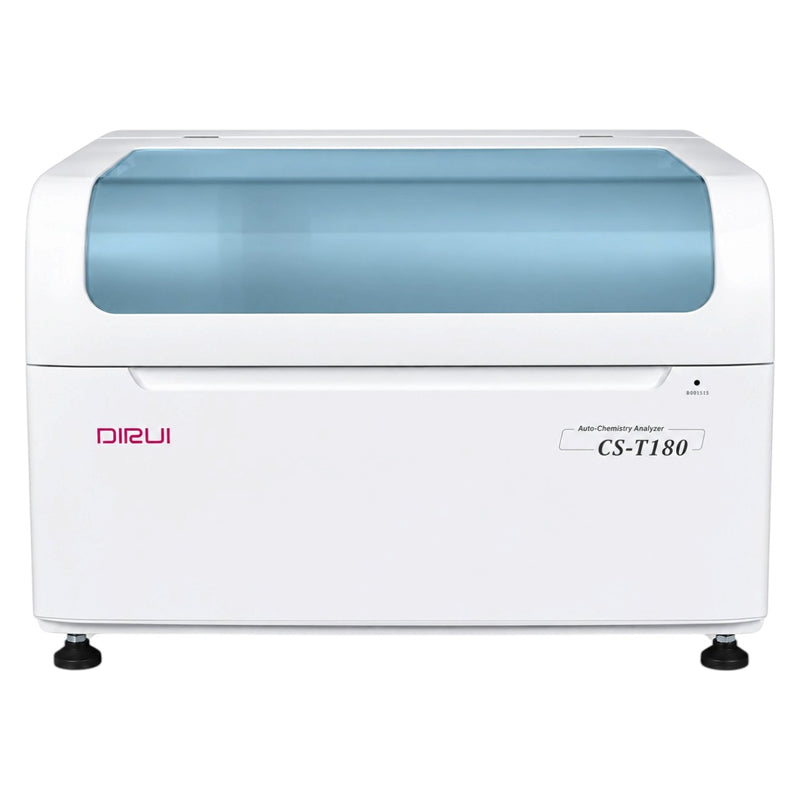

The DIRUI CS-T180 is a fully automatic biochemistry analyzer designed for small and medium-sized laboratories. It performs routine blood and urine chemistry tests quickly and accurately. The system is compact, user-friendly, and supports continuous random access, enabling it to run multiple tests simultaneously. It uses advanced optical technology to measure different biochemical reactions and delivers fast results. With its optional ISE module, it can also test electrolytes like sodium, potassium, and chloride. The machine requires very little manual work—just load samples, load reagents, and start the run.
Test Menu
-
Basic metabolic panel (glucose, urea, creatinine)
-
Liver function tests (AST, ALT, ALP, bilirubin)
-
Lipid profile (cholesterol, HDL, LDL, triglycerides)
-
Enzymes, proteins, and electrolytes (Na⁺, K⁺, Cl⁻)
-
HbA1c via whole blood on-board hemolysis
-
End-point, kinetic, fixed-time, and turbidimetric assays
Key Highlights
-
Fully automatic, random-access benchtop analyzer with integrated ISE option for electrolytes.
-
Throughput up to ~180 tests/hour for colorimetric assays, and up to ~540 tests/hour when ISE module is included.
-
High sample/reagent capacity: up to 80 sample positions and 80 reagent positions.
-
Minimal reaction volume (100 µL to 360 µL typical) and uses 340–800 nm spectrophotometry for broad test compatibility.
-
Compact footprint relative to high-throughput machines: approx 744 × 703 × 530 mm and weight ~100 kg.
-
Whole-blood HbA1c capability without prior centrifugation thanks to onboard hemolysis.
-
Network (LIS/HIS) connectivity and smart reagent/sample tracking.
Technical Specifications
| Specification |
Details |
| Equipment Type |
Fully automatic, discrete, random-access analyzer with optional ISE module |
| Throughput (Colorimetric) |
~180 tests/hour |
| Throughput (With ISE Module) |
~540 tests/hour |
| Sample Positions |
Up to 80 |
| Reagent Positions |
Up to 80 |
| Reaction Cuvette Volume |
100 µL to 360 µL |
| Wavelength Range |
340 nm to 800 nm |
| Dimensions (L × W × H) |
74.4 × 70.3 × 53.0 cm |
| Weight |
~100 kg |
| Power Supply |
AC 100–240V, 50/60Hz, approx. 600 VA |
| Sample Types Supported |
Serum, plasma, urine, ascites, CSF, whole blood (for HbA1c) |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
