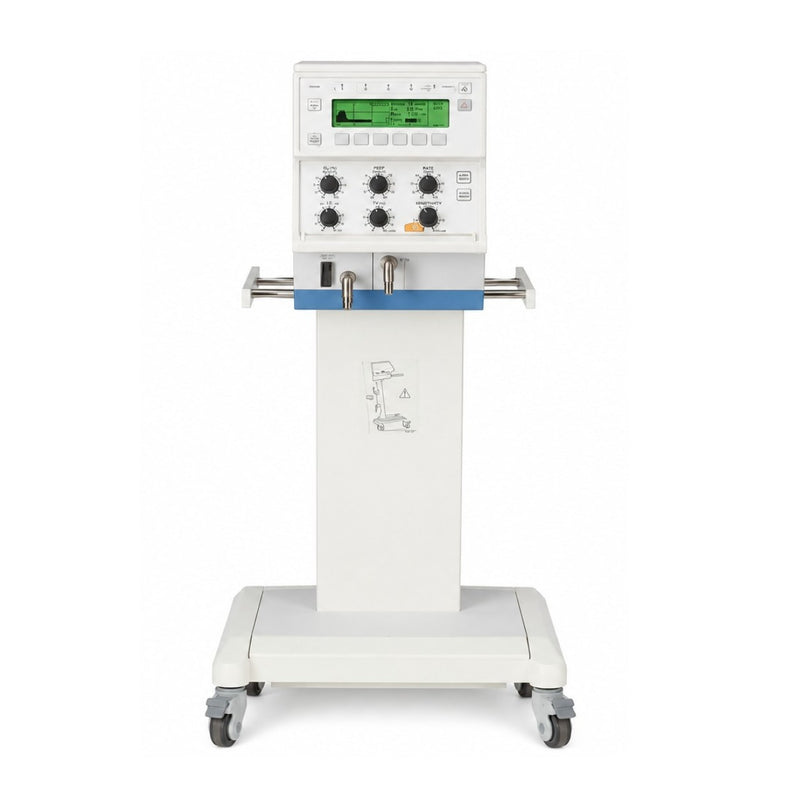

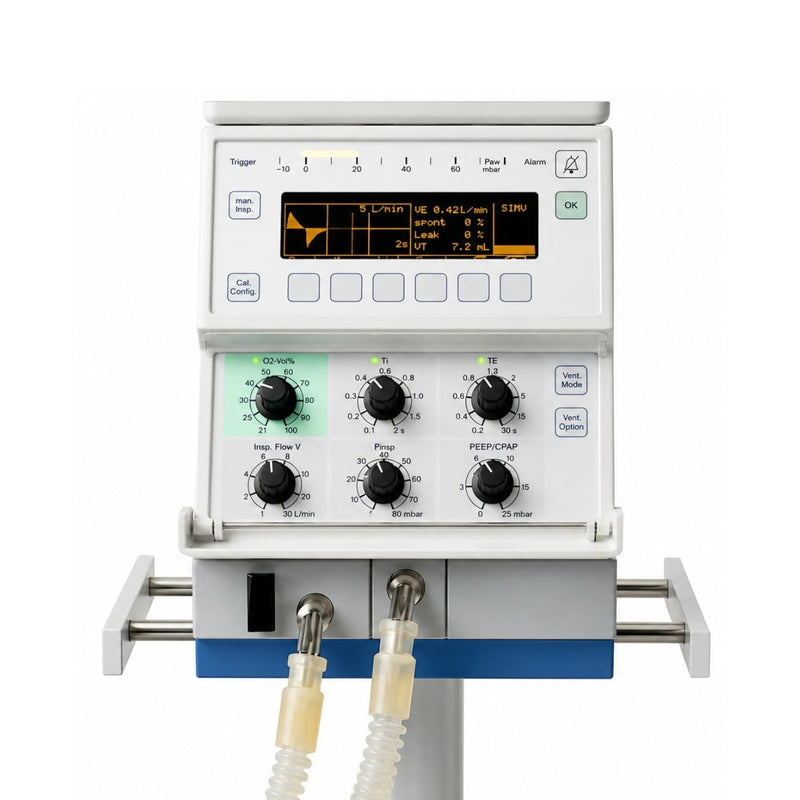

The Refurbished Dräger Babylog 8000 Plus is a specialized neonatal and pediatric ventilator designed for hospital and intensive-care applications. Its continuous-flow, pressure-limited and time-cycled operating principle supports conventional ventilation as well as high-frequency ventilation (HFV).
The unit is designed for neonatal and pediatric respiratory support and provides adjustable inspiratory and expiratory times, inspiratory flow, oxygen concentration, and airway pressure. The white housing configuration gives the equipment a clean clinical appearance while maintaining its portable installation-grade design.
✅ Key Features
- Refurbished Dräger Babylog 8000 Plus
- Specialized neonatal and pediatric ventilator
- Designed for hospital and ICU applications
- White housing configuration
- Aluminum body configuration
- Portable installation-grade design
- Continuous-flow ventilation principle
- Pressure-limited and time-cycled ventilation
- Conventional ventilation modes
- High-frequency ventilation capability
-
CPAP + HFV and IMV + HFV
- Inspiratory time: 0.1–2 seconds
- Expiratory time: 0.2–30 seconds
- Inspiratory flow: 1–30 L/min
- O₂ concentration: 21–100%
- Peak pressure: up to 99 mbar
- Approximate height: 690 mm
Conventional Ventilation
The Babylog 8000 Plus supports conventional neonatal and pediatric ventilation using:
IMV / IPPV
Intermittent mandatory ventilation and intermittent positive-pressure ventilation provide mechanically delivered respiratory support according to the configured ventilation parameters.
CPAP
Continuous positive airway pressure supports spontaneously breathing patients by maintaining positive airway pressure throughout the respiratory cycle.
High-Frequency Ventilation
The Babylog 8000 Plus also supports high-frequency ventilation, providing additional respiratory-support options for neonatal and pediatric critical-care applications.
Available high-frequency configurations include:
The exact mode and settings should be selected according to the patient's clinical requirements and the configuration of the individual ventilator.
Continuous-Flow, Pressure-Limited Ventilation
The ventilator uses a continuous-flow, pressure-limited and time-cycled control principle.
This operating approach allows clinicians to configure respiratory timing and pressure-related parameters for neonatal and pediatric ventilation.
Adjustable Inspiratory & Expiratory Times
The Babylog 8000 Plus provides broad timing adjustment ranges:
-
Inspiratory time: 0.1–2 seconds
-
Expiratory time: 0.2–30 seconds
These settings allow ventilation timing to be configured according to patient requirements.
Inspiratory Flow
The specified inspiratory-flow range is:
1–30 L/min
The appropriate flow setting depends on the selected ventilation mode, patient category, and clinical requirements.
Oxygen Concentration
The ventilator supports an oxygen concentration range of:
21%–100% O₂ by volume
This provides adjustable oxygen delivery for neonatal and pediatric respiratory-support applications.
Peak Pressure
The supplied specification indicates a maximum peak pressure of:
Up to 99 mbar
Actual operating pressure should be configured according to the selected ventilation mode and clinical requirements.
Technical Specifications
| Specification |
Details |
| Brand |
Dräger |
| Model |
Babylog 8000 Plus |
| Condition |
Refurbished |
| Color |
White |
| Application |
Hospital / ICU |
| Patient Category |
Neonatal & Pediatric |
| Body Material |
Aluminum body configuration |
| Design |
Portable installation-grade |
| Control Principle |
Continuous flow, pressure-limited, time-cycled |
| Conventional Modes |
IMV/IPPV, CPAP |
| High-Frequency Modes |
CPAP + HFV, IMV + HFV |
| Inspiratory Time |
0.1–2 seconds |
| Expiratory Time |
0.2–30 seconds |
| Inspiratory Flow |
1–30 L/min |
| O₂ Concentration |
21–100% by volume |
| Peak Pressure |
Up to 99 mbar |
| Height |
Approx. 690 mm |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
