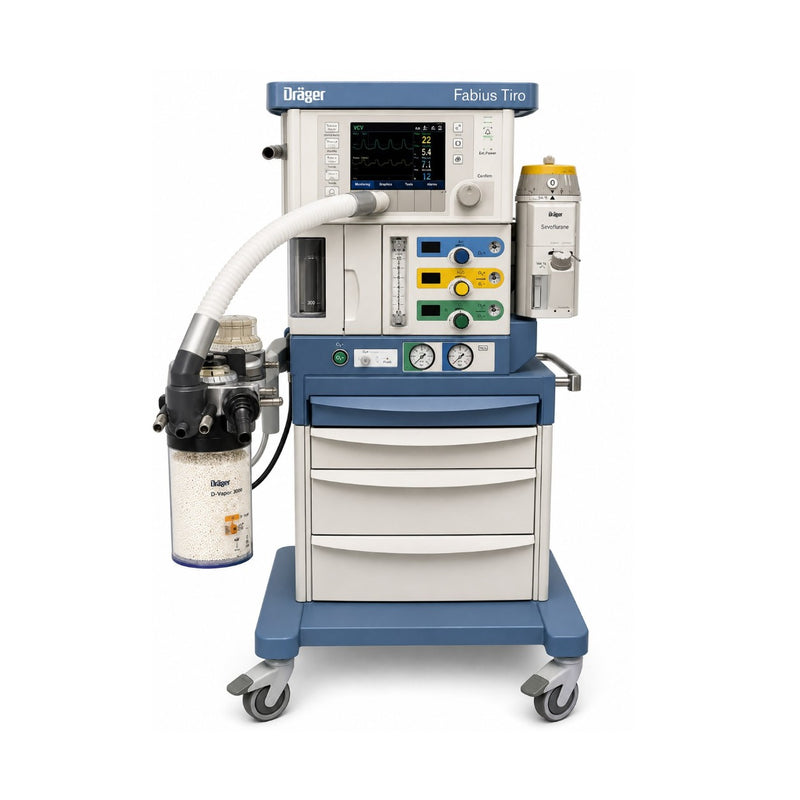

The Refurbished Dräger Fabius Tiro is a compact, space-saving anesthesia workstation designed for professional operating-room and anesthesia applications. It combines an electrically driven E-Vent piston ventilator, integrated COSY breathing system, precision gas-delivery controls, vaporizer compatibility, and integrated respiratory monitoring in a flexible workstation configuration.
The E-Vent ventilator uses an electrically driven and electronically controlled piston mechanism that does not require drive gas, helping optimize the use of available gas supplies. The integrated COSY breathing system incorporates a CO₂ absorber and modular components designed for convenient handling and cleaning.
The gas supply system supports O₂, N₂O and Air from either a central pipeline or backup cylinders. The workstation is compatible with Dräger Vapor series and Selectatec-compatible vaporizers, depending on the exact configuration.
The integrated monitoring display provides real-time information including airway pressure, tidal volume, breathing frequency and inspiratory oxygen concentration (FiO₂).
As a refurbished anesthesia workstation, the exact condition, installed options, ventilator configuration, vaporizer compatibility, battery condition, accessories and calibration status should be confirmed before procurement and clinical use.
✅ Key Features
- ✅ Refurbished Dräger Fabius Tiro Anesthesia Workstation
- ✅ Compact, space-saving workstation design
- ✅ Electrically driven E-Vent piston ventilator
- ✅ Electronically controlled ventilation
- ✅ Ventilator does not require drive gas
- ✅ Integrated COSY breathing system
- ✅ Integrated CO₂ absorber
- ✅ Modular breathing-system components
- ✅ Supports O₂, N₂O and Air
- ✅ Central pipeline and backup-cylinder gas supply
- ✅ Dräger Vapor series vaporizer compatibility
- ✅ Volume Control (VC / IPPV)
- ✅ Pressure Control (PCV)
- ✅ Pressure Support (PS)
- ✅ SIMV / PS
- ✅ Mobile trolley mounting
- ✅ Wall-mount configuration
- ✅ Ceiling-integration option
- ✅ AC power operation
- ✅ Internal battery backup
E-Vent Ventilator
The Dräger Fabius Tiro incorporates an electrically driven, electronically controlled E-Vent piston ventilator.
Unlike pneumatic drive systems, the E-Vent does not require a separate drive-gas supply. This design can help conserve available medical gas supplies and extend cylinder runtime in appropriate operating conditions.
COSY Breathing System
The integrated COSY breathing system is a compact breathing-system platform incorporating a CO₂ absorber.
Its modular construction is designed to facilitate handling, cleaning and routine maintenance of the breathing system.
The supplied specification indicates a CO₂ absorber capacity of approximately 1.5 litres.
Gas Supply System
The Fabius Tiro supports delivery of commonly used medical gases:
- Oxygen (O₂)
- Nitrous Oxide (N₂O)
- Air
Gas can be supplied through a central pipeline system or backup cylinders, depending on the installed configuration.
Ventilation Modes
The Refurbished Dräger Fabius Tiro supports the following ventilation modes:
Manual / Spontaneous
Allows manual or spontaneous breathing operation according to the clinical setup.
Volume Control – VC / IPPV
Provides volume-controlled mandatory ventilation.
Pressure Control – PCV
Provides pressure-controlled ventilation.
Pressure Support – PS
Provides pressure-supported spontaneous breathing.
SIMV / PS
Provides synchronized intermittent mandatory ventilation with pressure-support capability.
The exact mode availability should be verified according to the specific refurbished configuration.
Power & Battery Backup
The workstation operates from standard AC power.
| Power Specification |
Details |
| Power Input |
100–240 VAC |
| Frequency |
50/60 Hz |
| Battery Backup |
Minimum 45 minutes up to 120 minutes |
| CO₂ Absorber Capacity |
Approx. 1.5 L |
Battery runtime on a refurbished unit may vary depending on battery age, condition, workload and configuration.
Mounting & Installation Options
The Dräger Fabius Tiro offers flexible installation options:
- Mobile trolley / cart
- Wall mounting
- Ceiling integration
This makes the platform adaptable to different operating-room and anesthesia-workstation layouts.
Technical Specifications
| Specification |
Details |
| Product Name |
Dräger Fabius Tiro |
| Condition |
Refurbished |
| Device Type |
Anesthesia Workstation |
| Ventilator Type |
E-Vent Piston Ventilator |
| Ventilator Drive |
Electrically Driven |
| Breathing System |
COSY |
| CO₂ Absorber |
Integrated |
| CO₂ Absorber Capacity |
Approx. 1.5 L |
| Gas Supply |
O₂, N₂O & Air |
| Gas Source |
Central Pipeline / Backup Cylinders |
| Vaporizer Compatibility |
Dräger Vapor / Selectatec-Compatible |
| Ventilation Modes |
Manual/Spontaneous, VC/IPPV, PCV, PS, SIMV/PS |
| Monitoring |
Airway Pressure, Tidal Volume, Frequency, FiO₂ |
| Power Input |
100–240 VAC |
| Frequency |
50/60 Hz |
| Battery Backup |
45–120 Minutes |
| Mounting Options |
Trolley, Wall Mount, Ceiling Integration |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
