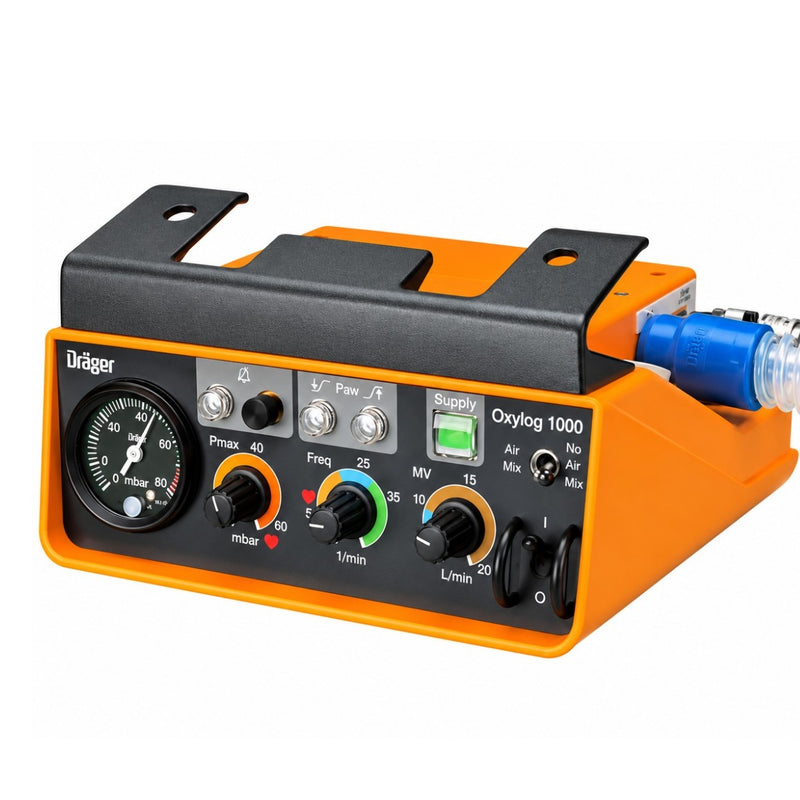

The Refurbished Dräger Oxylog 1000 is a rugged, portable and purely pneumatic emergency transport ventilator designed for demanding field and outdoor environments. Its durable high-strength plastic housing protects the pneumatic control system during transport and emergency use.
Unlike electrically dependent ventilators, the Oxylog 1000 operates using compressed medical gas, with its core ventilation functions controlled pneumatically. This makes it particularly suitable for emergency transport situations where external electrical power may not be readily available.
✅ Key Features
-
Purely pneumatic operation: Core ventilation functions operate without batteries or electronic circuits.
-
Emergency & transport design: Built for field, outdoor and patient-transport applications.
-
Rugged housing: High-impact orange and black plastic casing designed for demanding conditions.
-
Time-cycled ventilation: Provides time-cycled, volume-constant mechanical ventilation.
-
IPPV / CMV mode: Provides controlled mandatory ventilation.
-
Manual controls: Dedicated knobs and dials for respiratory rate, minute volume and pressure limits.
-
Pneumatic alarm system: Provides visual and audible warnings for supply-pressure drops and airway-pressure limits.
-
Wide respiratory-rate range: Adjustable from 4 to 54 breaths/minute.
-
Minute-volume range: Adjustable from 3 to 20 L/min.
-
Lightweight construction: Approximately 3.15 kg.
-
Compressed-gas operation: Can operate using medical-grade oxygen or compressed air.
-
No external electrical power required: The core breathing function does not depend on mains electricity or a battery.
Pneumatic Operating System
The Oxylog 1000 uses a pneumatic control block containing mechanical and gas-driven valves. These components regulate the ventilator's timing and gas delivery.
The pneumatic architecture provides:
- Gas-driven ventilation control
- Mechanical valve operation
- Time-controlled breath delivery
- Volume-constant ventilation
- Pneumatically driven alarm functions
This design makes the Oxylog 1000 particularly suited to environments where simplicity, portability and independence from electrical power are important.
Ventilation Mode
IPPV / CMV
The Oxylog 1000 provides Intermittent Positive Pressure Ventilation (IPPV), also described as Controlled Mandatory Ventilation (CMV).
It is intended for controlled mechanical ventilation using the selected respiratory rate, minute volume and pressure-limit settings.
Controls & Adjustments
The ventilator incorporates manual control knobs and dials for adjustment of key ventilation parameters.
| Control |
Function |
| Respiratory Rate |
Adjusts the number of mandatory breaths per minute |
| Minute Volume |
Adjusts the target minute ventilation |
| Pressure Limit |
Sets the applicable airway-pressure limit |
| Pneumatic Controls |
Regulate gas-driven ventilation functions |
Integrated Pneumatic Alarm System
The Oxylog 1000 includes a pneumatically driven visual and audible alarm system.
The alarm system provides warnings associated with:
- Supply-pressure drop
- Airway-pressure limits
Because the alarm mechanism is pneumatic, the core warning functions do not rely on conventional electronic circuitry.
Drive Gas Requirements
The Oxylog 1000 is designed to operate from a compressed medical-gas supply.
Supported drive gases include:
- Medical-grade oxygen
- Compressed air
The supplied operating pressure range is:
2.7–6 bar
Always verify the gas source, connector configuration and pressure requirements of the specific refurbished unit before use.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Dräger |
| Model |
Oxylog 1000 |
| Equipment Type |
Emergency & transport ventilator |
| Condition |
Refurbished |
| Operating Principle |
Purely pneumatic |
| Ventilation Type |
Time-cycled, volume-constant |
| Ventilation Mode |
IPPV / CMV |
| Respiratory Rate |
4–54 breaths/min |
| Minute Volume |
3–20 L/min |
| Weight |
Approx. 3.15 kg |
| Drive Gas |
Medical-grade oxygen or compressed air |
| Supply Pressure |
2.7–6 bar |
| Power Requirement |
No external electrical power required for core ventilation |
| Housing |
Rugged high-strength plastic |
| Alarm System |
Pneumatic visual & audible alarms |
| Alarm Functions |
Supply-pressure drop and airway-pressure limits |
| Controls |
Manual knobs and dials |
| Primary Application |
Emergency & transport ventilation |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
