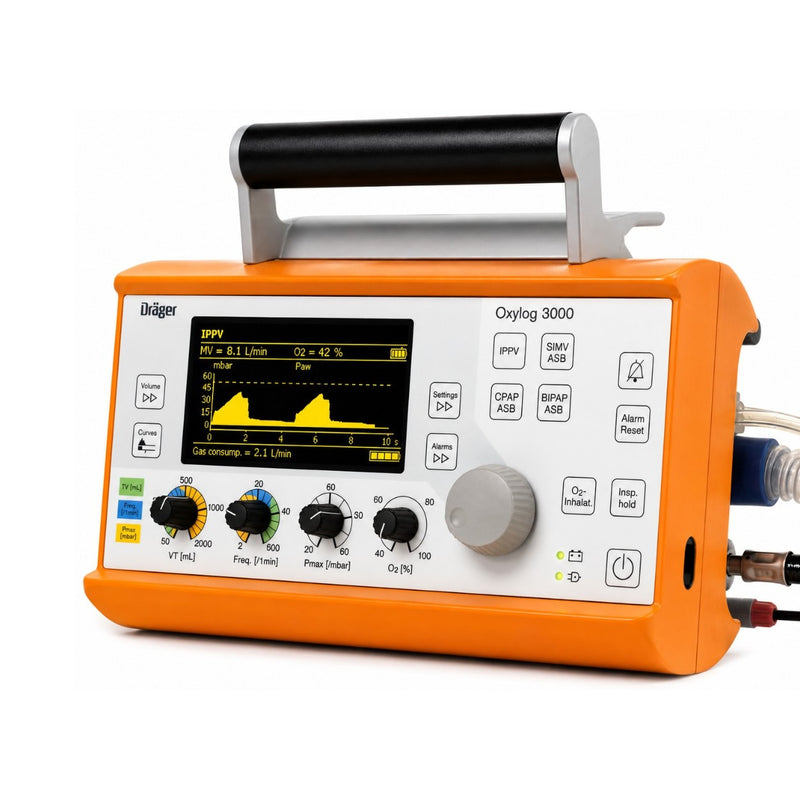

Dräger Oxylog 3000 Plus Emergency & Transport Ventilator

The Refurbished Dräger Oxylog 3000 Plus is a versatile emergency and transport ventilator designed to support both invasive ventilation and non-invasive ventilation (NIV). It combines volume- and pressure-controlled ventilation modes with integrated leak compensation, AutoFlow functionality, apnea ventilation, and comprehensive respiratory monitoring.

With a tidal volume range starting from 50 mL, the Oxylog 3000 Plus is suitable for a broad range of emergency, transport, and critical-care applications. Its compact design and intuitive rotary-control interface make it practical for use where reliable ventilation support is required.

✅ Key Features

• Refurbished Dräger Oxylog 3000 Plus ventilator
• Suitable for emergency and transport ventilation
• Supports invasive and non-invasive ventilation (NIV)
• Tidal volume starting from 50 mL
• Volume-controlled and pressure-controlled ventilation
• Integrated leak compensation for NIV applications
• AutoFlow for optimized gas flow and pressure delivery
• Adjustable tidal volume (VT), respiratory rate, PEEP, and inspiratory pressure
• Apnea ventilation with automatic backup ventilation
• Comprehensive airway-pressure and respiratory alarms
• Dedicated parameter buttons and central rotary control
• Designed for professional healthcare environments

Invasive Ventilation Modes

The refurbished Oxylog 3000 Plus supports several invasive ventilation configurations for controlled and assisted ventilation.

VC-CMV / VC-AC

Volume-controlled ventilation provides a target tidal volume with mandatory breaths delivered according to the configured respiratory parameters.

VC-SIMV

Synchronized intermittent mandatory ventilation combines mandatory volume-controlled breaths with spontaneous breathing between mandatory breaths.

PC-BIPAP / PC-SIMV+

Pressure-controlled ventilation modes provide pressure-based respiratory support while allowing spontaneous breathing according to the selected configuration.

AutoFlow

Non-Invasive Ventilation (NIV)

The Oxylog 3000 Plus can be configured for non-invasive ventilation using an appropriate patient interface.

SPN CPAP / PS / NIV

NIV can be activated through the ventilator settings. When NIV is enabled, the ventilator applies dedicated leak compensation and adjusts relevant alarm behavior to account for intentional and unintentional mask leakage.

NIV Parameters

Depending on the selected configuration, clinicians can adjust:

• PEEP
• Trigger sensitivity
• Pressure Support / ASB
• Spontaneous breathing support
• NIV-related alarm parameters

The supplied information indicates a trigger sensitivity of approximately 3 L/min as a default example, although actual settings may vary according to configuration and clinical requirements.

Integrated Leak Compensation

A major feature of the Oxylog 3000 Plus for NIV applications is its integrated leak compensation.

Mask leakage can interfere with pressure delivery and patient-triggering during non-invasive ventilation. The leak-compensation system helps the ventilator compensate for leakage and maintain more reliable pressure support.

This makes the unit suitable for applications where NIV is required during emergency care and patient transport.

Safety & Monitoring

The Oxylog 3000 Plus incorporates respiratory monitoring and alarm functions designed to alert clinicians to potentially significant changes in ventilation.

Alarm Monitoring Includes

• High airway pressure
• Low airway pressure
• High respiratory rate
• Apnea
• Patient disconnection
• High minute volume
• Low minute volume
• Other ventilation-related limit conditions depending on configuration

These alarms help clinicians identify changes in patient ventilation, circuit integrity, and respiratory performance.

Technical Specifications
