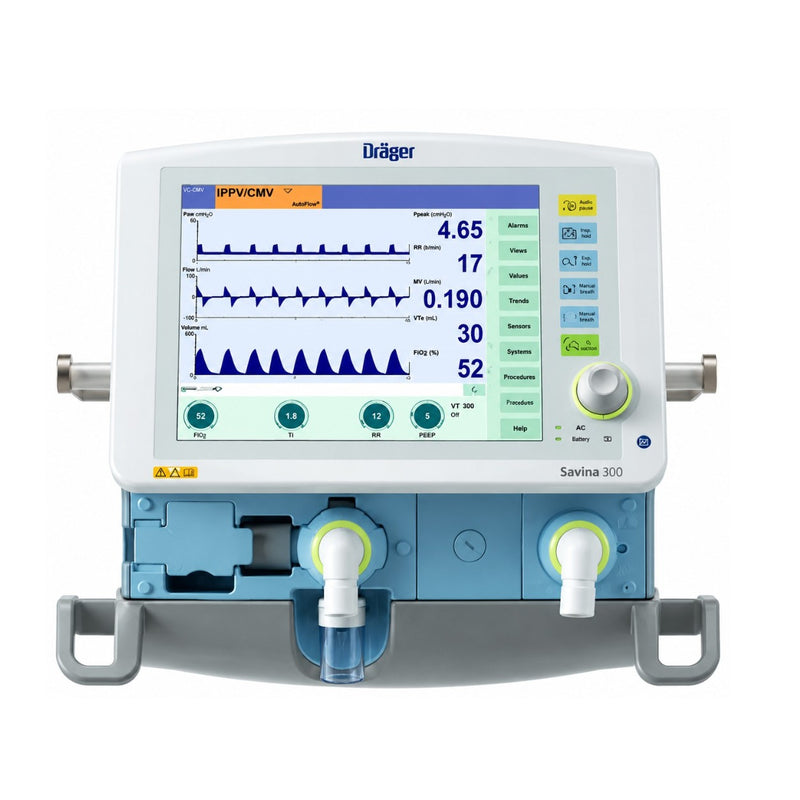

Dräger Savina 300 Intensive Care Ventilator

The Dräger Savina 300 is an advanced turbine-driven intensive care ventilator designed for adult and pediatric patients. It combines independent turbine-based gas generation with invasive and non-invasive ventilation, a responsive 12-inch color touchscreen, and battery-supported operation for greater flexibility in hospital and transport environments.

This refurbished Dräger Savina 300 ventilator supports a broad range of volume-controlled, pressure-controlled and spontaneous ventilation modes. Advanced functions such as AutoFlow and automatic leak compensation help support volume-constant ventilation and patient-ventilator synchrony during NIV.

✅ Key Features

• Turbine-driven ventilation: Built-in turbine generates ventilation gas flow without total reliance on a central gas pipeline.
• Adult & pediatric support: Designed for both adult and pediatric patients.
• Wide tidal-volume range: Supports tidal volumes from 20 to 2,000 mL.
• High inspiratory flow: Maximum inspiratory flow of up to 250 L/min.
• 12-inch color touchscreen: Responsive touchscreen provides an intuitive interface for clinical configuration.
• Invasive & non-invasive ventilation: Supports conventional invasive ventilation and NIV.
• AutoFlow: Automatically adapts ventilation to support volume-constant ventilation.
• Automatic leak compensation: Helps compensate for leaks during non-invasive ventilation.
• Flexible oxygen supply: Supports high-pressure oxygen (HPO) and low-pressure oxygen (LPO) options.
• Battery backup: Internal and external batteries provide up to 5 hours of independent ventilation.
• Multiple ventilation modes: Includes volume-controlled, pressure-controlled and spontaneous breathing modes.
• Hospital & transport flexibility: Turbine-based operation and battery support provide greater independence from fixed gas and power infrastructure.

Turbine-Driven Gas Generation

The Savina 300 incorporates a built-in turbine for independent gas generation.

This design reduces reliance on a central gas pipeline system and provides greater flexibility for hospital applications where an independent flow source is beneficial.

Key turbine features

• Integrated turbine
• Maximum inspiratory flow up to 250 L/min
• Independent gas generation
• Reduced reliance on central gas pipeline infrastructure
• Suitable for intensive-care applications

Ventilation Modes

The Savina 300 supports several categories of mechanical and spontaneous ventilation.

Spontaneous Breathing

• SPN-CPAP

AutoFlow

The Savina 300 includes AutoFlow, which provides automatic adaptation during volume-controlled ventilation.

This function is designed to help maintain a volume-constant ventilation strategy while adapting the delivery of inspiratory flow according to the selected ventilation requirements.

NIV & Automatic Leak Compensation

The Savina 300 supports non-invasive ventilation (NIV) and incorporates automatic leak compensation.

During mask ventilation, leaks can affect triggering and patient-ventilator synchrony. The automatic leak-compensation function is designed to compensate for such leaks and support effective NIV operation.

Oxygen Supply

The Savina 300 supports two oxygen supply options:

• HPO — High-Pressure Oxygen
• LPO — Low-Pressure Oxygen

The exact connection arrangement and oxygen-source requirements should be verified for the individual refurbished unit.

Battery & Transport Operation

The ventilator uses internal and external batteries, providing up to 5 hours of independent ventilation support according to the supplied specifications.

Actual operating time depends on battery condition, configuration and operating conditions.

Technical Specifications
