The Epsilon IITV C-Arm is a mobile image intensifier C-arm system designed for surgical and diagnostic imaging procedures. The Epsilon HD and Smart series combine mobile positioning, imaging features, and system safety for applications in orthopedics, urology, gastroenterology, abdominal procedures, and other surgical interventions.
Available with 3.5 kW and 6 kW high-frequency generator variants, the system features a 9-inch image intensifier, stationary or rotating anode X-ray tube options, and multiple image display and storage configurations.
The advanced 1K × 1K imaging configuration supports real-time image capture, storage, and display, with DICOM 3 compatibility and USB, LAN, CD, and DVD connectivity options.
Key Features
-
High-frequency generator: Available in 3.5 kW and 6 kW variants.
-
9-inch image intensifier: Provides high-resolution IITV imaging.
-
X-ray tube options: Stationary or rotating anode configurations.
-
ABS facility: Available for radiography and fluoroscopy.
-
Multiple imaging modes: Continuous, pulsed, and high-definition modes.
-
Image memory: Available in 100-frame and 32-frame configurations, with 100-frame USB and LAN support options.
-
Digital image processor: Supports digital image processing.
-
High-frequency technology: Uses high-frequency technology with constant high-voltage direct-current output and low ripple factor.
-
CMOS camera: High-resolution CMOS camera with 1K × 1K imaging.
-

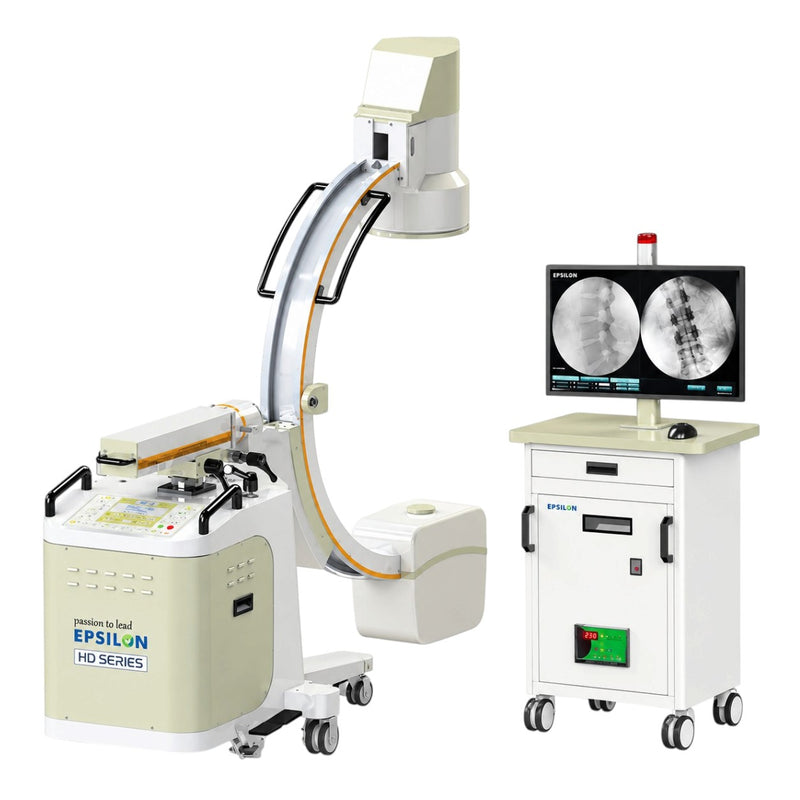

Monitor options: Single 27-inch Full HD LED monitor with split-screen functionality or 19-inch dual LED monitors.
-
Self-diagnostic program: Simplifies system maintenance.
-
Voltage stabilizer and isolation transformer: Included system components.
-
Compact mobile design: Suitable for operating rooms and areas with limited space.
Technical Specifications
| Specification |
Details |
| Brand |
Epsilon |
| Product category |
IITV C-Arm |
| Series |
HD / Smart |
| Models |
EP Victory HF – 3.5 Advance / EP Victory RA 6 |
| Generator type |
High-frequency |
| Generator ratings |
3.5 kW / 6 kW |
| Current rating |
80–100 mA |
| Image intensifier |
9-inch IITV |
| X-ray tube options |
Stationary / Rotating anode |
| Imaging modes |
Continuous, pulsed, high definition |
| Image memory options |
100 frames / 32 frames / 100 frames USB |
| Connectivity |
USB / LAN |
| Image processor |
Digital image processor |
| Camera |
High-resolution CMOS camera |
| Imaging resolution |
1K × 1K |
| Monitor option 1 |
Single 27-inch Full HD LED monitor with split screen |
| Monitor option 2 |
19-inch dual LED monitors |
| Voltage support |
Voltage stabilizer and isolation transformer |
| DICOM compatibility |
DICOM 3 compatible |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
