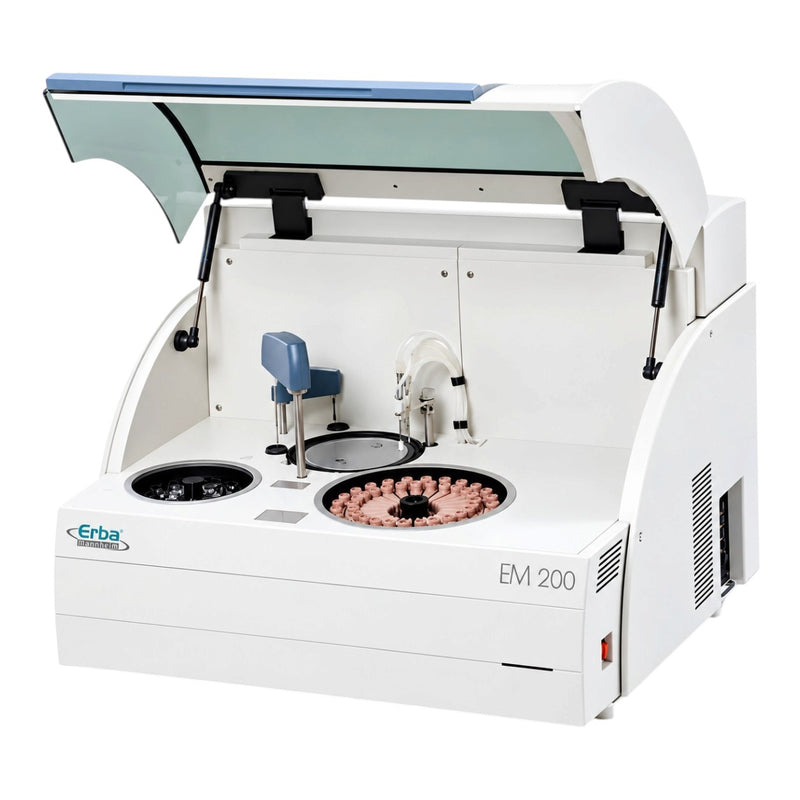

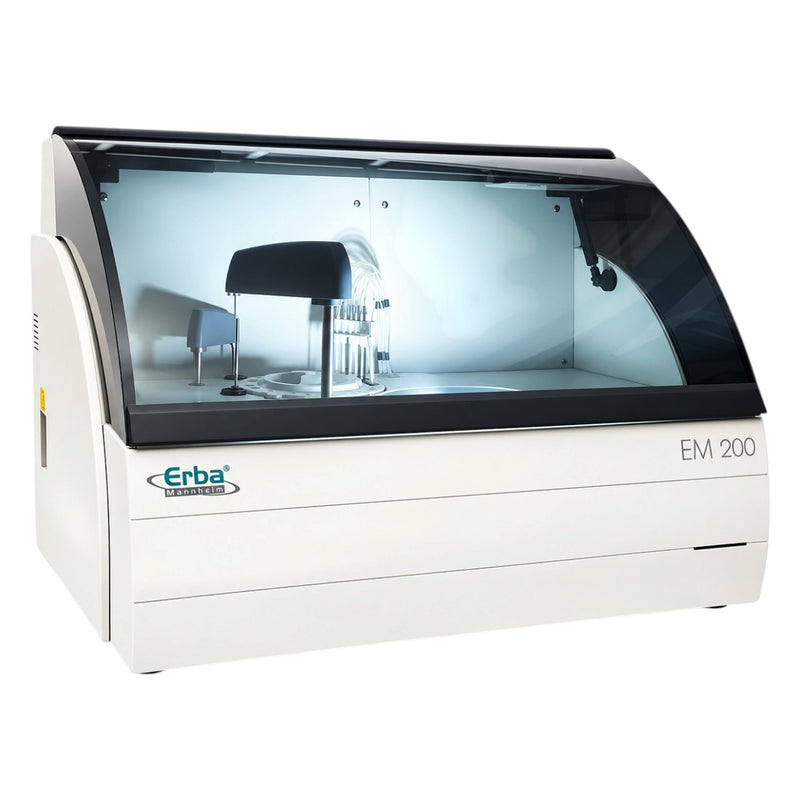

The Erba EM 200 Biochemistry Analyzer is a fully automated, random-access clinical chemistry analyzer designed for mid-size laboratories. It delivers a photometric throughput of 200 tests per hour and can process up to 400 tests per hour with an ISE module.
The Erba EM 200 clinical chemistry analyzer supports serum, plasma, urine, cerebrospinal fluid, and body fluid samples. Its features include reusable hard-glass reaction cuvettes, cooled reagent positions, barcode handling, smart service support, unlimited test result storage, and two-way Laboratory Information System (LIS) communication.
Key Features of Erba EM 200
-
Fully automatic, random-access clinical chemistry analyzer
-
Photometric throughput of 200 tests per hour
-
Throughput of up to 400 tests per hour with an ISE module
-
Supports serum, plasma, urine, cerebrospinal fluid, and body fluids
-
Two-way LIS communication
-
39 sample positions, including STAT, controls, and calibrators
-
50 cooled reagent positions
-
Unlimited test result storage
-
Multiple calibration methods
-
RS-232, USB, and TCP/IP connectivity
Technical Specifications
| Specification |
Details |
| Product Name |
Erba EM 200 |
| Analyzer Type |
Fully Automatic Biochemistry Analyzer |
| System |
Random-access clinical chemistry analyzer |
| Photometric Throughput |
200 tests/hour |
| Throughput with ISE Module |
Up to 400 tests/hour |
| Sample Types |
Serum, plasma, urine, cerebrospinal fluid, body fluids |
| Sample Positions |
39, including STAT, controls, and calibrators |
| Reagent Positions |
50 cooled reagent slots |
| Light Source |
Halogen lamp |
| Reaction Cuvettes |
Reusable hard-glass cuvettes with on-board washing |
| Reaction Tray |
45 hard-glass cuvettes |
| Data Storage |
Unlimited test result storage |
| Wavelengths |
340, 405, 505, 546, 578, 600, 660, and 700 nm |
| LIS Communication |
Two-way communication |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
