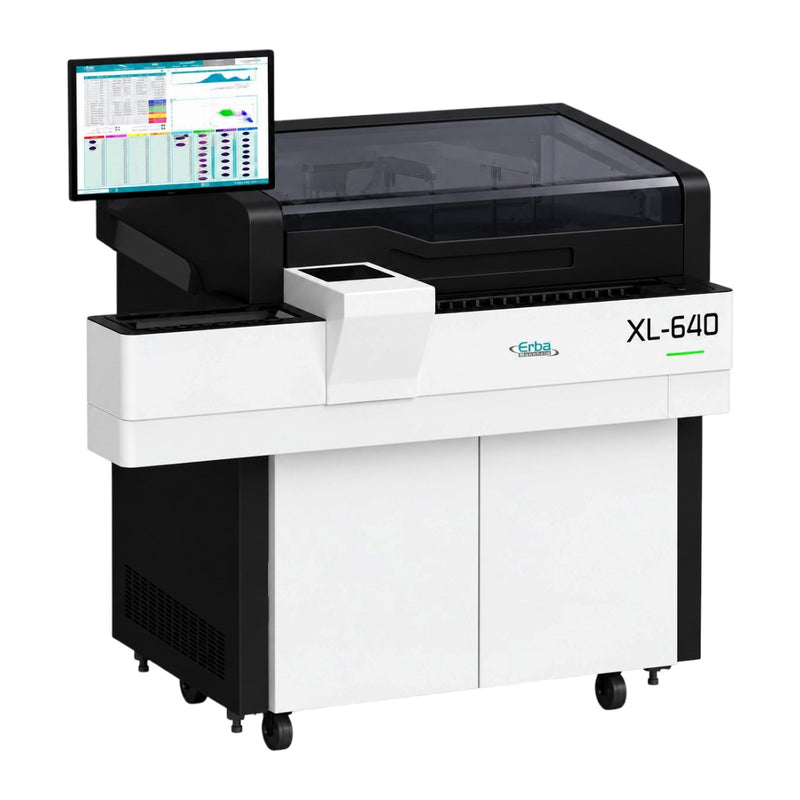

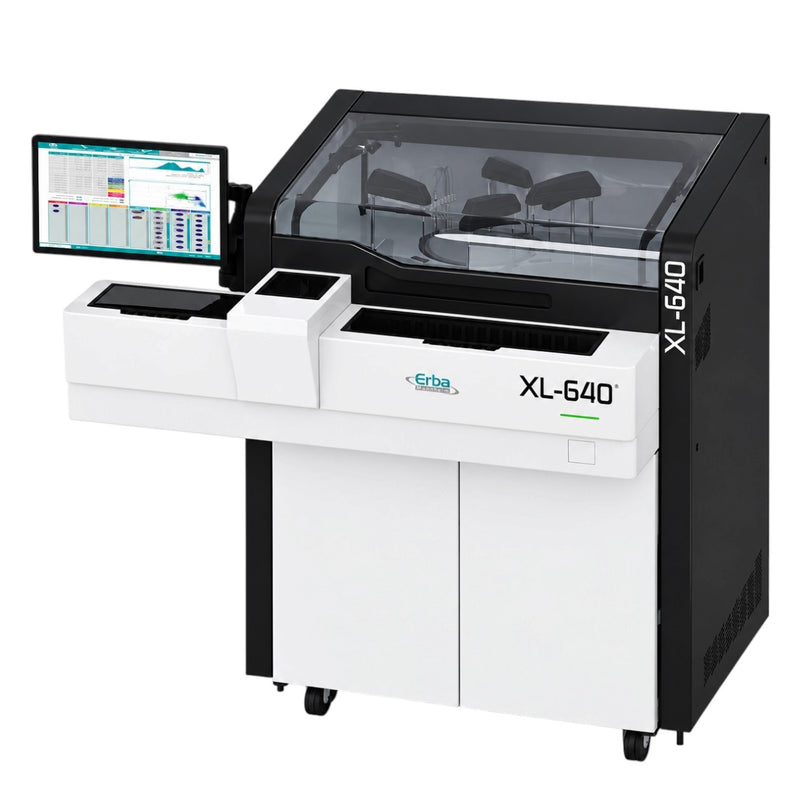

The Erba XL-640 Fully Automatic Chemistry Analyzer is a fully automatic clinical chemistry analyzer designed for routine and specialized laboratory testing. It offers a throughput of up to 400 photometric tests per hour, increasing to 640 tests per hour with the optional ISE module.
The Erba XL-640 is a fully automated random-access analyzer featuring 56 refrigerated reagent positions, approximately 80 sample positions, and 72 reusable hard-glass cuvettes. Its multi-wavelength photometric system supports 12 wavelengths across a 340–750 nm range. The analyzer also supports STAT sample processing, automatic sample dilution, rerun and reflex testing.
Key Features
-
Fully automatic clinical chemistry analyzer
-
Throughput of up to 400 photometric tests per hour
-
Throughput of up to 640 tests per hour with the optional ISE module
-
Fully automated random-access operation
-
56 refrigerated reagent positions
-
Approximately 80 sample positions
-
72 reusable hard-glass cuvettes
-
Multi-wavelength photometric system with 12 wavelengths
-
Factor, linear, and multipoint calibration
-
QC statistics with graphs based on Westgard QC rules
-
Less than 13.5 litres of water consumption per hour
-
Computer support for Intel Core i3 or higher, Windows 10 Professional, and minimum 4 GB RAM
-
Minimum 6 USB ports
Test Menu
The Erba XL-640 supports the following test categories:
-
Routine biochemistry tests
-
Liver function tests
-
Kidney function tests
-
Lipid profile
-
Electrolytes with the ISE module
-
Immunoturbidimetric assays
-
Special chemistry tests
-
Protein assays
-
Diabetes-related tests
-
Enzyme assays
Technical Specifications
| Specification |
Details |
| Analyzer Type |
Fully automatic clinical chemistry analyzer |
| Throughput |
Up to 400 photometric tests/hour |
| Throughput with ISE |
Up to 640 tests/hour |
| Cuvettes |
72 reusable hard-glass cuvettes |
| Photometry |
12 wavelengths |
| Wavelength Range |
340–750 nm |
| Reagent Positions |
56 refrigerated positions |
| Sample Positions |
Approximately 80 |
| Mixing |
Dual stirring systems |
| Water Consumption |
Less than 13.5 litres/hour |
| Safety |
Sample clot detection |
| Calibration |
Factor, linear, and multipoint calibration |
| Quality Control |
QC statistics with graphs based on Westgard QC rules |
| Computer |
Intel Core i3 or higher |
| Operating System |
Windows 10 Professional |
| Minimum RAM |
4 GB |
| Connectivity |
Minimum 6 USB ports |
