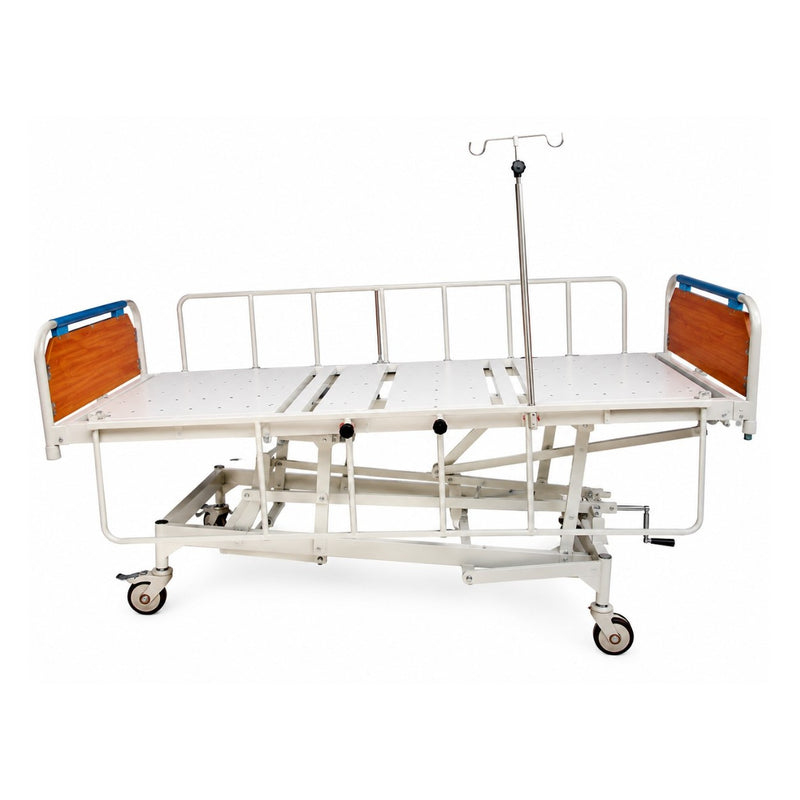

The Biotronix Instruments Four-Section Adjustable Hospital Bed is designed to provide practical positioning, patient comfort, and convenient operation in hospital and healthcare environments. The bed features a sturdy mild steel rectangular tube framework with a four-section perforated mild steel sheet top for durable everyday use.
The backrest, knee rest, Trendelenburg (TB), reverse Trendelenburg (RTB), and height adjustment can be maneuvered through separate screw mechanisms from the foot end. This allows healthcare professionals to adjust the bed according to patient-care requirements.
The bed is equipped with head and foot bows, up-and-down safety side railings, and a telescopic IV rod with four mounting locations. It is mounted on 125 mm diameter castors, including two castors with brakes for controlled positioning.
The epoxy powder-coated finish provides a practical surface suitable for routine healthcare environments.
Key Features
-
Strong MS Framework: Rectangular mild steel tube construction for durability.
-
Four-Section Top: Perforated mild steel sheet top supports versatile patient positioning.
-
Adjustable Backrest: Separate screw mechanism allows backrest positioning.
-
Adjustable Knee Rest: Provides flexible leg and knee positioning.
-
TB & RTB Positions: Trendelenburg and reverse Trendelenburg adjustments.
-
Hi-Lo Adjustment: Height can be adjusted through a separate screw mechanism.
-
Head & Foot Bows: Provides structured support at both ends of the bed.
-
Safety Side Railings: Up-and-down railings help provide bedside safety.
-
Telescopic IV Rod: Four-location IV rod arrangement for flexible placement.
-
125 mm Castors: Smooth mobility with two castors equipped with brakes.
-
Epoxy Powder Finish: Durable finish designed for healthcare environments.
Technical Specifications
| Specification |
Details |
| Product Name |
Four-Section Adjustable Hospital Bed |
| Brand |
Biotronix Instruments |
| Frame Material |
Rectangular Mild Steel Tube |
| Top |
4-Section Perforated Mild Steel Sheet |
| Adjustments |
Backrest, Knee Rest, TB, RTB & Hi-Lo |
| Adjustment Mechanism |
Separate Screw Mechanism |
| Head & Foot Bows |
Included |
| Safety Side Railings |
Up & Down Type |
| IV Rod |
Telescopic, Four Locations |
| Castor Diameter |
125 mm |
| Castor Brakes |
2 Castors With Brakes |
| Overall Size |
21 (L) Ć 90 (W) Ć 60ā80 (H) cm* |
| Finish |
Epoxy Powder Coated |
Ā
Disclaimer: Content is reviewed by our Biomedical Product Expert and verified against available manufacturer documentation. Specifications may vary by model or batch. Use the equipment strictly as directed by the manufacturer. This information is for general product guidance only and does not replace professional medical advice, diagnosis, or treatment.
