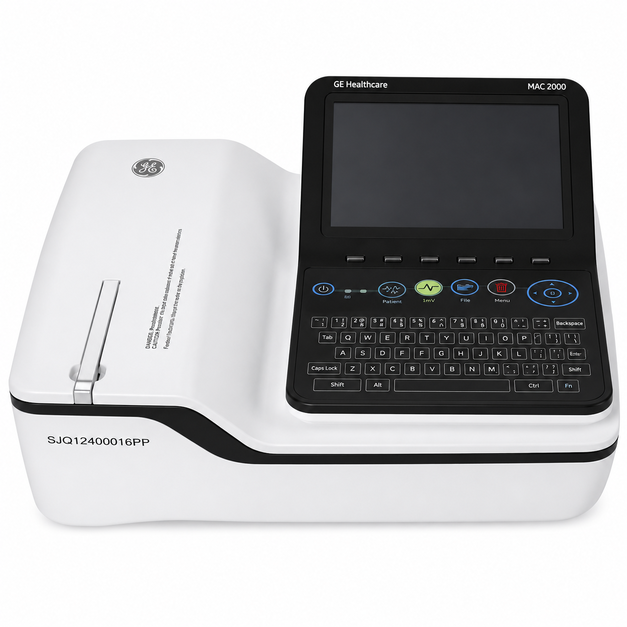

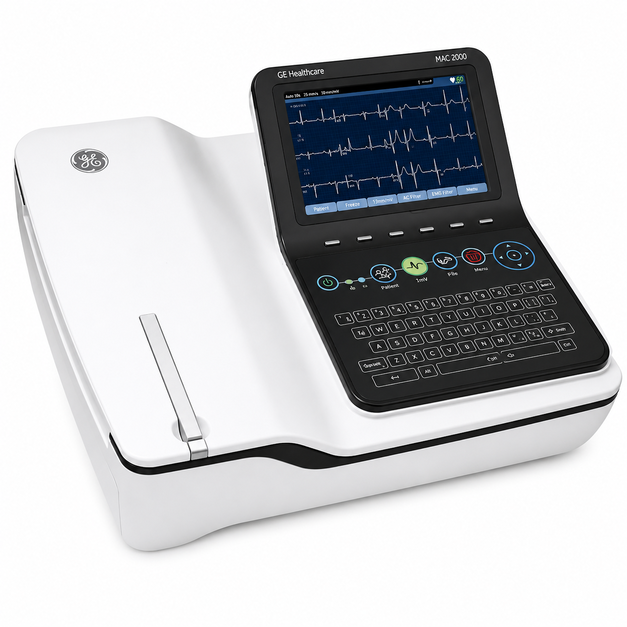

GE MAC 2000 12 Channel ECG Machine
Product Selection • Best Price • Technical Support
The GE MAC 2000 12 Channel ECG Machine is a high-performance resting electrocardiograph designed to deliver fast, accurate, and dependable cardiac diagnostics for hospitals, clinics, cardiology departments, emergency rooms, and diagnostic centers. Powered by GE Healthcare's trusted ECG technology, the MAC 2000 combines advanced signal acquisition with intelligent ECG analysis to help clinicians make confident diagnostic decisions.
Featuring simultaneous 12-channel ECG recording, the MAC 2000 captures comprehensive cardiac waveforms with exceptional clarity. Its 7-inch color TFT display provides a crisp, high-resolution view of ECG waveforms, while the full-size alphanumeric keyboard allows quick and efficient patient data entry in busy clinical environments.
The system incorporates the industry-renowned GE Marquette® 12SL ECG Analysis Program, delivering automatic ECG interpretation for both adult and pediatric patients. Advanced digital signal processing enhances waveform quality by reducing electrical interference and improving diagnostic accuracy.
The built-in thermal printer produces high-quality ECG reports instantly, while internal memory stores up to 200 ECG records for quick retrieval. Multiple connectivity options, including USB, LAN, SD Card, and optional Wi-Fi, allow seamless integration with Hospital Information Systems (HIS) and Electronic Medical Records (EMR), making patient data management simple and efficient.
Designed with portability and ease of use in mind, the GE MAC 2000 offers automatic and manual operating modes, fast startup in under 30 seconds, and reliable battery backup for uninterrupted ECG recording during power fluctuations. Compact, durable, and user-friendly, it is an ideal ECG solution for high-volume healthcare environments.

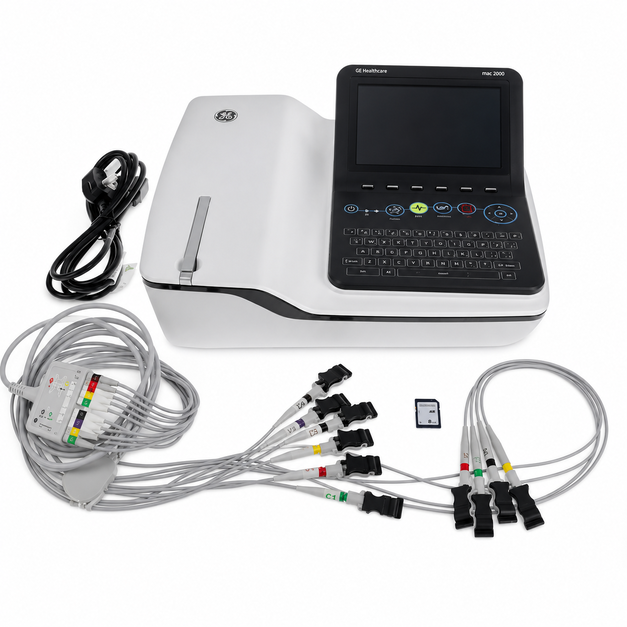

Compact GE MAC 2000 12 Channel ECG Machine for bedside, outpatient, and emergency cardiac diagnostics
Product Highlights
- Simultaneous 12-channel ECG recording
- 7-inch high-resolution color TFT display
- GE Marquette® 12SL automatic ECG analysis
- Built-in thermal dot-matrix printer
- Full-size alphanumeric keyboard
- Internal memory for up to 200 ECG records
- USB, LAN, SD Card, and optional Wi-Fi connectivity
- Automatic and manual ECG recording modes
- Fast startup in less than 30 seconds
- Battery backup for uninterrupted operation
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | GE MAC 2000 12 Channel ECG Machine |
| Brand | GE Healthcare |
| Model | MAC 2000 Basic |
| Instrument Type | 12-Lead, 12-Channel Resting ECG System |
| Display | 7-inch Color TFT (800 × 480 Resolution) |
| ECG Analysis | GE Marquette® 12SL (Adult & Pediatric) |
| Sampling Rate | 500/1000 Samples/sec/Channel |
| Frequency Response | 0.04–150 Hz |
| Internal Storage | Up to 200 ECG Records |
| Printer | Built-in Thermal Dot-Matrix Printer |
| Connectivity | USB, LAN, SD Card, Optional Wi-Fi |
| Startup Time | Less Than 30 Seconds |
| Input Impedance | >10 MΩ |
| Patient Leakage Current | <10 µA |
Box Contents
- 1 × GE MAC 2000 ECG Machine
- 1 × 10-Lead Patient Cable
- 1 × Power Adapter & Power Cord
- 1 × User Manual & Quick Start Guide
- 1 × Starter Thermal Printer Paper
- 1 × Starter Electrode/Gel Kit
- 1 × Warranty Card & Service Documentation
Warranty
1 Year Manufacturer Warranty covering manufacturing defects, as per GE Healthcare's warranty terms and service policy.
