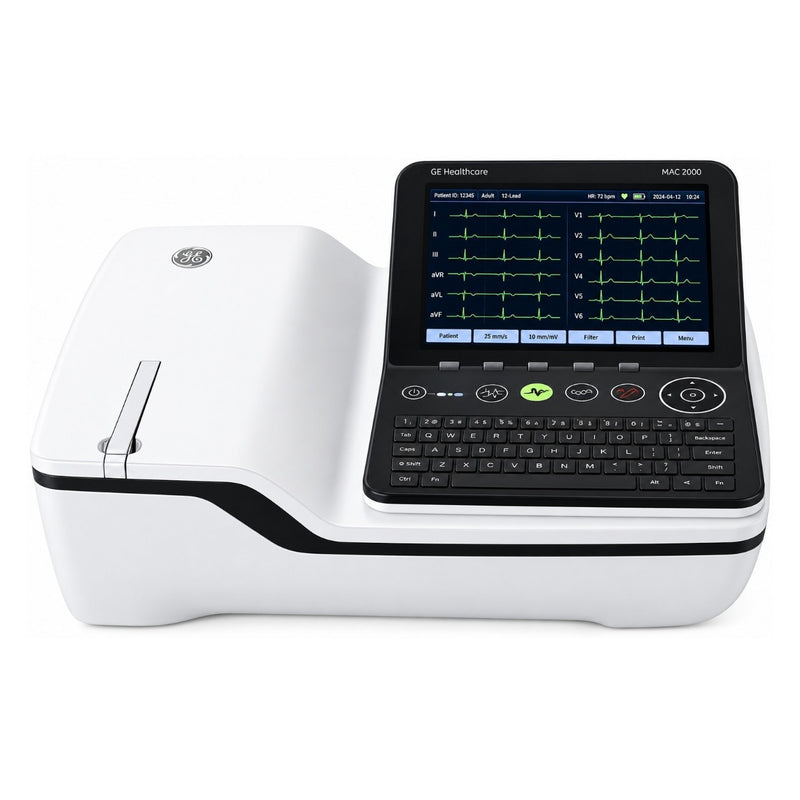

The Refurbished GE MAC 2000 12-Channel ECG Machine is a compact diagnostic cardiology system designed for simultaneous 12-lead resting ECG acquisition. It combines intuitive one-touch operation with the Marquette 12SL ECG Analysis Program for adult and pediatric ECG interpretation.
The system features a 7-inch color TFT display, full-size alphanumeric keyboard, integrated thermal printer, and internal storage for up to 200 ECG records. Connectivity options including LAN, USB, SD card, and optional Wi-Fi support ECG data export and potential EMR integration.
For a refurbished unit, the actual condition, battery health, installed software/functions, accessories, and connectivity configuration should be verified before purchase.
✅ Key Features
- 12-channel / 12-lead resting ECG acquisition
- Simultaneous 12-lead ECG recording
- Marquette 12SL ECG Analysis Program
- Adult and pediatric ECG interpretation
- 7-inch high-resolution color TFT display
-
800 × 480 display resolution
- Waveform preview
- Full-size alphanumeric keyboard
- One-touch operation
- Internal storage for up to 200 ECG records
- Integrated thermal dot-matrix printer
- Full-size ECG report printing
- Standard LAN connectivity
- USB connectivity
- SD card slot
- Optional Wi-Fi
- PDF and XML data export
- EMR integration capability
- Rechargeable Lithium-ion battery
-
100–240 VAC AC input
12-Lead ECG Acquisition
The GE MAC 2000 is designed for simultaneous 12-lead resting ECG acquisition, allowing clinicians to capture a complete standard resting ECG recording.
The system combines ECG acquisition with the Marquette 12SL Analysis Program, providing automated ECG analysis and interpretation for adult and pediatric patients.
Marquette 12SL ECG Analysis
The integrated Marquette 12SL ECG Analysis Program is designed to assist with ECG interpretation.
The supplied configuration supports:
- Adult ECG interpretation
- Pediatric ECG interpretation
- Automated ECG analysis
- Simultaneous 12-lead acquisition
Automated interpretation should be reviewed by an appropriately qualified healthcare professional and should not replace clinical assessment.
7-Inch Color Display
The MAC 2000 features a 7-inch high-resolution color TFT display with an 800 × 480 resolution.
The display provides:
- ECG waveform preview
- Patient information
- ECG acquisition information
- User interface for operating the system
Full-Size Alphanumeric Keyboard
A full-size alphanumeric keyboard is provided for convenient entry of patient information and system operation.
This can be useful in busy diagnostic environments where efficient patient data entry is required.
Internal ECG Storage
The system has internal memory capable of storing up to 200 ECG records.
Stored ECG records can be useful for:
- Reviewing previous ECGs
- Managing patient examinations
- ECG report handling
- Data transfer and export
Actual available storage can depend on the individual configuration and record format.
Integrated Thermal Printer
The GE MAC 2000 incorporates an integrated thermal dot-matrix printer for printing ECG reports.
The printer supports full-size ECG reports, allowing ECG results to be documented directly from the device.
Connectivity & Data Export
The system provides multiple connectivity options:
- LAN
- USB
- SD card
- Optional Wi-Fi
The available connectivity can support data transfer, export, and EMR integration depending on the configured system and compatible infrastructure.
The supplied specifications identify PDF and XML as supported export formats.
Rechargeable Battery & AC Power
The MAC 2000 supports both AC operation and rechargeable battery operation.
- AC input: 100–240 VAC
- Rechargeable Lithium-ion battery
- Battery backup for operation away from continuous AC power
For a refurbished ECG machine, battery capacity and charging performance should be tested before purchase because battery condition can vary with age and usage.
Technical Specifications
| Specification |
Details |
| Brand |
GE Healthcare |
| Model |
MAC 2000 |
| Equipment Type |
12-Channel ECG Machine |
| ECG Type |
Resting ECG |
| Acquisition |
Simultaneous 12-lead acquisition |
| ECG Analysis |
Marquette 12SL ECG Analysis Program |
| Interpretation |
Adult and Pediatric |
| Display |
7-inch Color TFT |
| Display Resolution |
800 × 480 |
| Waveform Display |
Waveform preview |
| Keyboard |
Full-size alphanumeric keyboard |
| Internal Storage |
Up to 200 ECG records |
| Printer |
Integrated thermal dot-matrix printer |
| Report Printing |
Full-size reports |
| Standard Connectivity |
LAN, USB, SD card |
| Optional Connectivity |
Wi-Fi |
| Data Export |
PDF, XML |
| EMR Integration |
Supported, subject to configuration |
| Battery |
Rechargeable Lithium-ion |
| AC Input |
100–240 VAC |
Disclaimer: Content is reviewed by our Biomedical Product Expert and verified against available manufacturer documentation. Specifications may vary by model or batch. Use the equipment strictly as directed by the manufacturer. This information is for general product guidance only and does not replace professional medical advice, diagnosis, or treatment.
