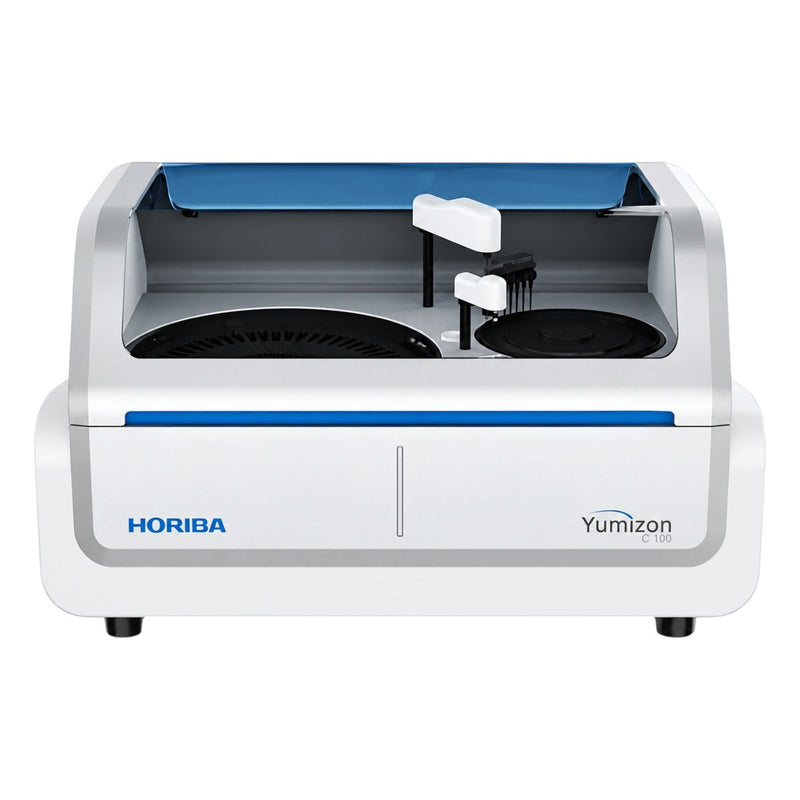

The HORIBA Yumizen C150 Automated Clinical Chemistry Analyzer is a compact, fully automated clinical chemistry analyzer designed for small and medium-sized laboratories. It performs routine biochemistry tests efficiently with high accuracy and minimal manual work. Its smart automation, reagent-cooling system, and efficient washing unit support reliable and fast diagnostic testing.
Features of HORIBA Yumizen C150
-
Throughput of up to 200 tests per hour
-
Compact bench-top design suitable for smaller laboratories
-
30 sample positions and 30 reagent positions with onboard refrigeration at 2–12°C
-

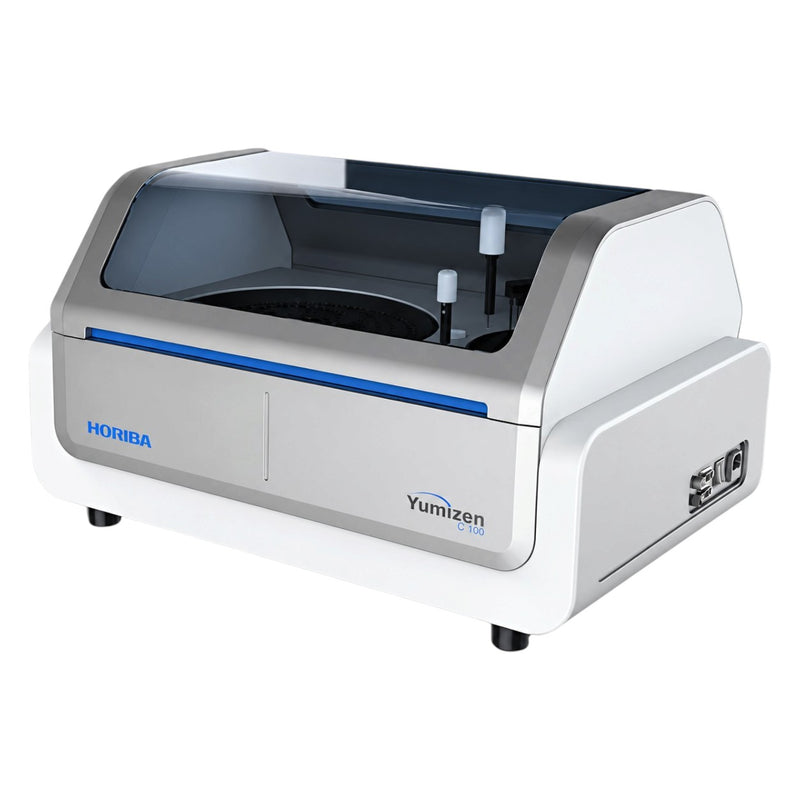

60 reusable cuvettes with a 7-step automatic washing system
-
9 wavelength filters ranging from 340 nm to 700 nm for photometric readings
-
Sample volume of 2–50 µL
-
Reaction volume of 180–550 µL
-
Multiple assay modes, including End Point, Fixed Time, Kinetic, Mono/Bichromatic
-
Automatic calibration and quality control functions
-
Low water consumption of approximately 5 L/hour
-
User-friendly touchscreen interface and LIS connectivity
Key Highlights
-
Increases test throughput for faster patient result delivery
-
Reduces manual handling and operator error
-
Saves space with a compact bench-top design
-
Built-in quality control and calibration enhance result accuracy
-
Handles a wide range of biochemical tests in one instrument
-
Suitable for hospitals, diagnostic centers, and clinical laboratories requiring consistent daily testing
Technical Specifications
| Parameter |
Specification |
| Analysis Method |
End Point, Fixed Time (2-Point), Kinetic Rate-A, Kinetic Rate-B |
| Assay Modes |
Colorimetry, Turbidimetry, Single and Double Reagent, Multi Standard, Monochromatic and Bichromatic |
| Measurement Principle |
Photometry |
| Light Source |
Halogen tungsten lamp with fiber optics |
| Wavelengths |
9 filters: 340, 405, 450, 510, 546, 578, 620, 670 and 700 nm |
| Calibration Points |
Multipoint curves up to 6 points (repeat runs or auto execution) |
| Auto Re-run |
Auto execution for abnormal marking or out-of-range values |
| Power Supply |
110/230 VAC, 50–60 Hz |
| Maximum Power |
250 W |
| Operating Temperature |
10°C–30°C |
| Humidity |
40%–80% (free from water dew formation) |
| Dimensions (W × D × H) |
62.5 × 45.0 × 42.4 cm |
| Weight |
25 kg |
| Sample Dilution |
2–40 times |
| Reaction Cuvettes |
60 reusable cuvettes |
| Cuvette Washing |
7-step automatic washing system |
| Throughput |
Up to 200 tests per hour |
| Water Consumption |
Approximately 5 L/hour |
| Interface |
Touchscreen |
| Connectivity |
LIS connectivity |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
