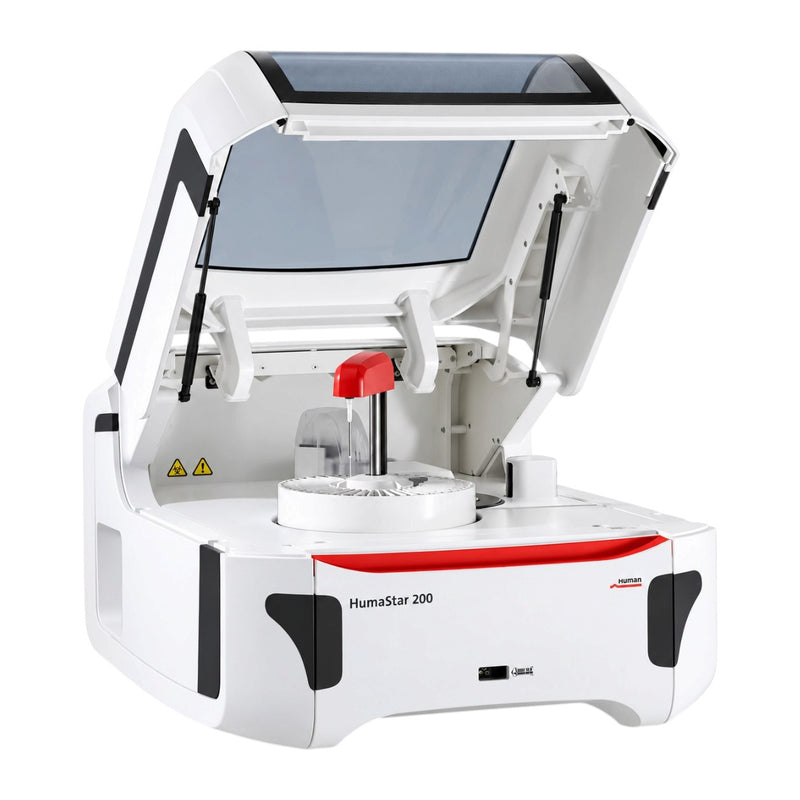

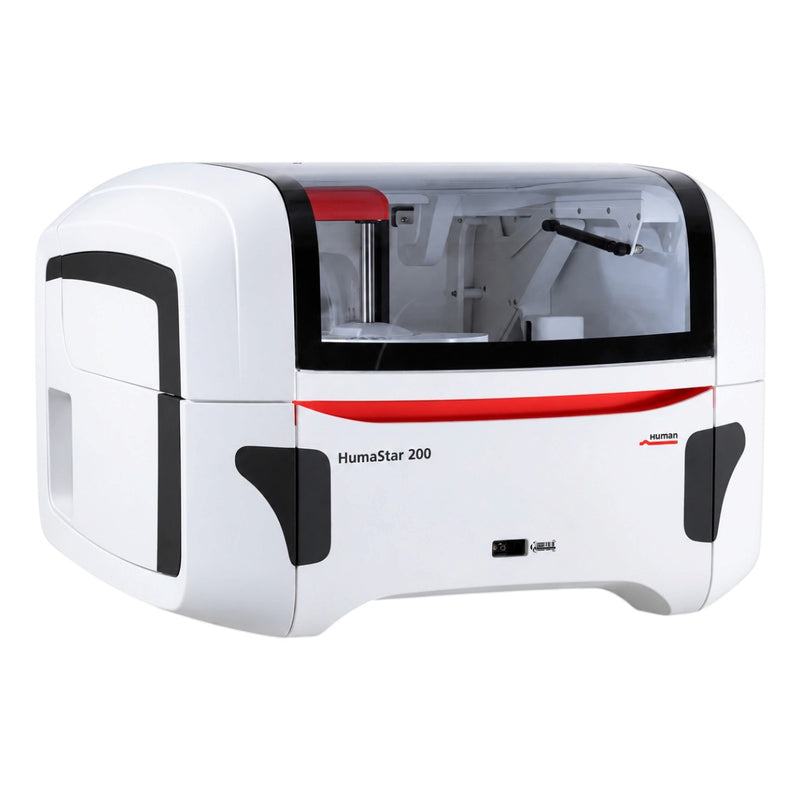

The Human HumaStar 200 Fully Automated Clinical Chemistry Analyzer is a fully automated, mid-range biochemistry analyzer designed for routine clinical testing. It delivers up to 200 tests per hour and supports up to 60 biochemistry parameters, including routine chemistry, special chemistry, enzymes, substrates, electrolytes by the indirect method, and immunoturbidimetric tests.
The HumaStar 200 features 60 sample positions for primary tubes and sample cups, 30 cooled reagent positions, reusable Bionex cuvettes, a touchscreen-based software interface, random-access and STAT sample capability, and bi-directional LIS connectivity. Its 8-step cuvette wash system and low water consumption of less than 2 L per hour support routine laboratory workflows.
Key Features
-
Fully automated clinical chemistry analyzer
-
Throughput of up to 200 tests per hour
-
Supports up to 60 biochemistry parameters
-
60 sample positions for primary tubes and sample cups
-
30 cooled reagent positions for 20 mL and 50 mL bottles
-
Random-access, batch, and STAT operation modes
-
Reusable Bionex cuvettes with an 8-step wash system
-
Built-in reagent cooling that operates independently
-
Touchscreen-based, multi-language software
-
2D sample barcode scanner
-
Supports continuous sample and reagent loading
-
Preventive maintenance alerts
Test Menu
The Human HumaStar 200 supports up to 60 biochemistry parameters across the following categories:
The analyzer uses open reagents, with HUMAN multipurpose reagents recommended.
Technical Specifications
| Specification |
Details |
| Analyzer Type |
Fully automated clinical chemistry analyzer |
| Throughput |
Up to 200 tests/hour |
| Test Parameters |
Up to 60 biochemistry parameters |
| Sample Positions |
60 |
| Reagent Positions |
30 |
| Reagent Bottle Sizes |
20 mL and 50 mL |
| Operation Modes |
Random-access, Batch, STAT |
| Reagent Cooling |
Built-in, power-independent cooling |
| Cuvettes |
Reusable Bionex cuvettes |
| Cuvette Washing |
8-step wash system |
| Barcode Reader |
2D sample barcode scanner |
| LIS Connectivity |
Bi-directional LIS, ASTM, Ethernet |
| Software |
Touchscreen, multi-language interface |
| QC and Calibration |
Automatic management |
| Water Consumption |
Less than 2 L per hour |
| Operating Temperature |
16ā30Ā°C |
| Operating Humidity |
Up to 80% non-condensing |
| Dimensions |
Approximately 69 Ć 76 Ć 52 cm |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
