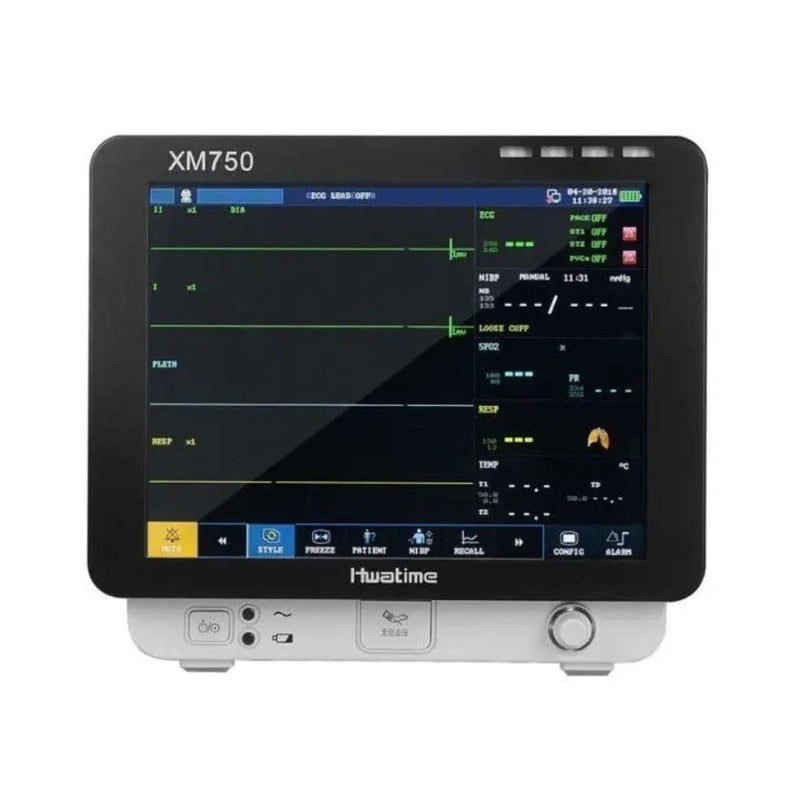

The Hwatime XM-750 is a bedside multi-parameter patient monitor designed for continuous monitoring of critical vital signs in adult, pediatric, and neonatal patients. It features a 12.1-inch color TFT display with multi-lead waveform and big-font viewing modes, making it suitable for use in ICUs, emergency wards, and operating rooms.
The monitor provides a standard combination of ECG, SpO₂, NIBP, respiration, pulse rate, and temperature monitoring, with optional modules for dual IBP, EtCO₂, 12-lead ECG interpretation, and thermal printing.
Key Features
- 12.1-inch color TFT LCD display
- Multi-lead waveform viewing
- Big-font display mode
- Standard multi-parameter monitoring
- 5-lead ECG
-
SpO₂ monitoring
-
NIBP monitoring
-
RESP monitoring
-
Pulse Rate (PR) monitoring
-
Temperature monitoring
- Supports adult, pediatric, and neonatal patients
- Optional dual-channel IBP
- Optional EtCO₂
- Optional 12-lead ECG interpretation
- Optional thermal printer
- Built-in rechargeable Lithium-ion battery
- Approximately 2–4 hours of continuous battery backup
- Adjustable audio and visual alarms
- Sensor-disconnection and low-battery alarms
-
Ethernet/LAN and USB connectivity
- Central Monitoring System (CMS) connectivity
- Protection against electrosurgical interference
- Defibrillator-discharge protection
12.1-Inch Color TFT Display
The Hwatime XM-750 incorporates a 12.1-inch TFT LCD color display designed to present vital parameters and waveforms clearly at the bedside.
The display supports:
- Multi-lead waveform viewing
- Big-font viewing
- Simultaneous display of monitored vital signs and waveforms
These viewing options allow healthcare professionals to select an appropriate layout for continuous patient observation.
Standard Patient Monitoring Parameters
ECG
The XM-750 supports 5-lead ECG monitoring for continuous observation of cardiac electrical activity.
SpO₂
Continuous oxygen saturation (SpO₂) monitoring provides information about the patient's oxygenation status.
NIBP
Non-Invasive Blood Pressure (NIBP) monitoring enables blood pressure assessment without an invasive arterial line.
Respiration
The RESP parameter provides continuous respiratory monitoring as part of the bedside vital-sign assessment.
Pulse Rate
Pulse Rate (PR) is monitored as part of the standard parameter set.
Temperature
The monitor also supports temperature monitoring, providing an additional vital sign for patient assessment.
Optional Monitoring Modules
The XM-750 can be configured with additional monitoring capabilities depending on the specific unit.
| Optional Module |
Function |
| Dual IBP |
Two invasive blood pressure channels |
| EtCO₂ |
End-tidal carbon dioxide monitoring |
| 12-lead ECG |
12-lead ECG acquisition/interpretation |
| Thermal Printer |
Printing of monitoring information |
Adult, Pediatric & Neonatal Monitoring
The XM-750 is designed to support:
- Adult patients
- Pediatric patients
- Neonatal patients
Appropriate patient-specific sensors, cuffs, probes, and monitoring settings should be used according to the patient's age, size, and clinical requirements.
Adjustable Audio & Visual Alarms
The monitor provides real-time audio and visual alarms with adjustable limits for monitored parameters.
Alarm functionality includes:
- Adjustable vital-parameter alarm limits
- Sensor-disconnection alerts
- Low-battery alerts
- Audio and visual notification of alarm conditions
Alarm settings should be appropriately configured by qualified clinical personnel before patient monitoring.
Battery Backup
The Hwatime XM-750 includes a built-in rechargeable Lithium-ion battery.
Specified battery backup: approximately 2–4 hours of continuous operation.
Actual runtime may vary depending on battery age, condition, and operating configuration. For a refurbished unit, battery performance should be checked before purchase.
LAN, USB & Central Monitoring Connectivity
The monitor provides Ethernet (LAN) and USB connectivity.
It can be linked to a Central Monitoring System (CMS), allowing bedside monitoring information to be integrated into a centralized monitoring environment, subject to compatible system configuration.
Safety Features
The XM-750 incorporates protection features for clinical environments, including:
- Electrosurgical interference protection
- Defibrillator discharge protection
These features are particularly relevant when the monitor is used in environments such as operating rooms and critical-care areas.
Technical Specifications
| Specification |
Details |
| Model |
Hwatime XM-750 |
| Equipment Type |
Multi-Parameter Bedside Patient Monitor |
| Display |
12.1-inch Color TFT LCD |
| Display Modes |
Multi-lead waveform, big-font viewing |
| Standard Parameters |
ECG, SpO₂, NIBP, RESP, PR, Temperature |
| ECG |
5-lead configuration |
| Patient Categories |
Adult, Pediatric, Neonatal |
| Optional Parameters |
Dual IBP, EtCO₂ |
| Optional ECG Function |
12-lead ECG interpretation |
| Optional Output |
Thermal printer |
| Battery |
Rechargeable Lithium-ion |
| Battery Backup |
Approximately 2–4 hours |
| Alarm System |
Adjustable audio and visual alarms |
| Connectivity |
Ethernet/LAN, USB |
| Central Monitoring |
CMS connectivity supported |
| Safety |
Electrosurgical interference and defibrillator-discharge protection |
Disclaimer: Content is reviewed by our Biomedical Product Expert and verified against available manufacturer documentation. Specifications may vary by model or batch. Use the equipment strictly as directed by the manufacturer. This information is for general product guidance only and does not replace professional medical advice, diagnosis, or treatment.
