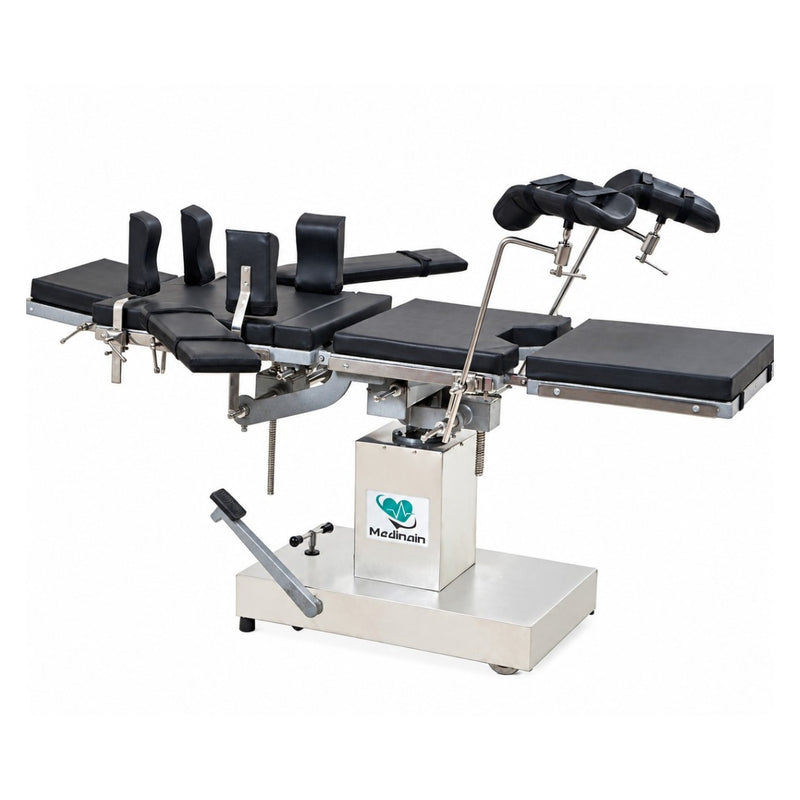

The Medinain ME-500H Hydraulic OT Table is a hydraulically and mechanically operated operating table designed for use in operating theatres and surgical environments. It features a centric stainless-steel base, detachable head and leg sections, an inbuilt kidney bridge, and multiple manual positioning adjustments for surgical procedures.
Its stainless-steel construction and easy-to-clean base and cover are designed to support practical operation and routine cleaning in the operating room.
✅ Key Features
-
Hydraulic and mechanical operation for table positioning
-
Centric base made from 202 stainless steel grade
-
Centric pillar with stainless-steel fittings
- Interchangeable leg and head sections
- Detachable head and leg sections
-
Inbuilt kidney bridge for required surgical positioning
-
Manual floor locking for securing the table
-
Stainless-steel base and cover with an easy-to-clean surface
-
Multiple adjustable positions including Trendelenburg, reverse Trendelenburg, lateral tilt, backrest, leg rest and head rest
- 150 kg patient weight capacity
Product Overview
The Medinain ME-500H Hydraulic OT Table combines hydraulic and mechanical operation with a stainless-steel construction suitable for operating-room applications. Its centric base and pillar design provide the structural foundation of the table, while detachable and interchangeable head and leg sections allow configuration according to procedural requirements.
The integrated kidney elevator provides 100 mm of adjustment, while the backrest, leg rest and headrest can be manually positioned to support different patient positions during surgery.
The table has a 1885 mm × 530 mm top, with height adjustment from 750 mm to 1000 mm without mattress.
Height Adjustment
The operating table height can be adjusted from 750 mm to 1000 mm without mattress.
Stainless-Steel Construction
The ME-500H features a centric base manufactured from 202 stainless steel grade. The base and cover are also specified as stainless steel with an easy-to-clean surface.
The table incorporates centric pillars with stainless-steel fittings, along with detachable head and leg sections.
Technical Specifications
| Specification |
Technical Details
|
| Brand |
Medinain |
| Model |
ME-500H
|
| Operation |
Hydraulic & Mechanical
|
| Top Dimension |
L 1885 × W 530 mm
|
| Height Adjustment |
750–1000 mm without mattress
|
| Trendelenburg |
30° |
| Reverse Trendelenburg |
25° |
| Lateral Tilt |
20° / 20°
|
| Kidney Elevator |
100 mm
|
| Backrest Up / Down |
80° / 8°
|
| Leg Rest Up / Down |
35° / 90°
|
| Head Rest Up / Down |
90° / 90°
|
| Patient Weight Capacity |
150 kg
|
| Base |
Centric, 202 stainless steel grade
|
| Head Section |
Detachable |
| Leg Section |
Detachable |
| Head & Leg Sections |
Interchangeable |
| Kidney Bridge |
Inbuilt |
| Floor Locking |
Manual |
| Pillar |
Centric with stainless-steel fittings
|
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
