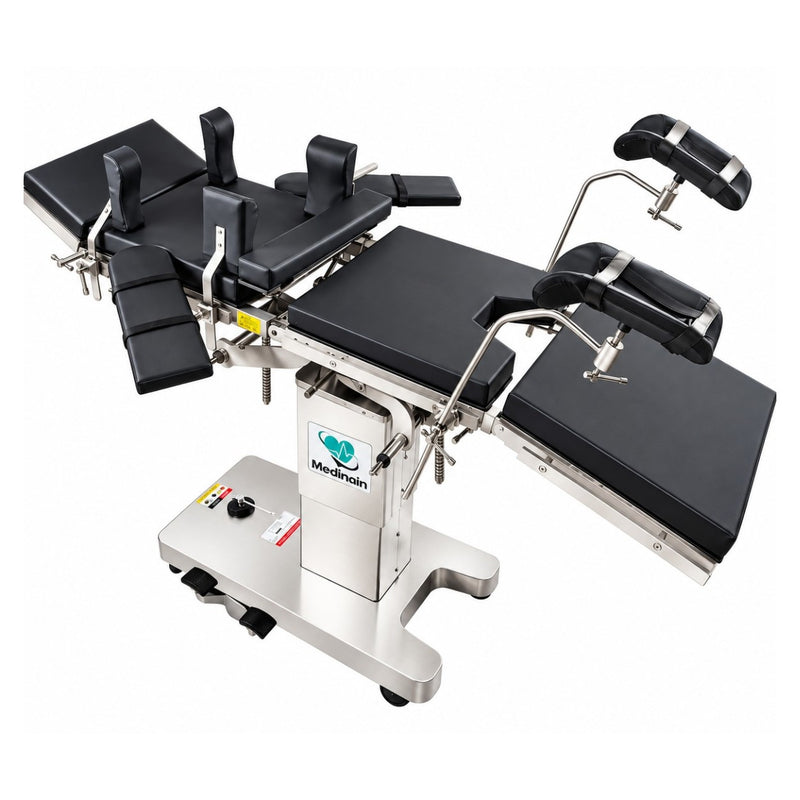

The Medinain ME-600E Hydraulic OT Table is a five-section operating theatre table designed for surgical environments requiring robust stainless-steel construction, multiple patient-positioning options and convenient height adjustment.
Major components of the table are made from 304 stainless steel grade, providing corrosion-resistant construction. The five-section stainless-steel tabletop is equipped with removable antistatic mattresses, while the table includes an inbuilt kidney bridge and a large perineal cut-out for drainage.
The up-down movement can be controlled through a remote system by Medinain, adding convenient control of table height during operating-room setup and use.
✅ Key Features
-
Major table components made from 304 stainless steel grade
- Five-section stainless-steel tabletop
-
Removable antistatic mattresses
- Mechanical driver for table positioning
- Robust stainless-steel shell
- Remote-controlled up-down movement
-
Inbuilt kidney bridge
- Large perineal cut-out for drainage
- Anatomically adaptable five-section tabletop
- Manual floor locking
-
Height adjustment from 750–1000 mm without mattress
- 200 kg patient weight capacity
- Multiple Trendelenburg, lateral tilt, backrest, leg-rest and headrest adjustments
304 Stainless-Steel Construction
Major parts of the ME-600E are manufactured from 304 stainless steel grade, as specified by Medinain. The table also features a hard and robust stainless-steel shell.
The stainless-steel construction is intended to provide a durable surface for operating-room use and routine cleaning.
Five-Section Tabletop
The ME-600E features a five-section stainless-steel tabletop equipped with removable antistatic mattresses.
According to the supplied product description, the five-section design provides anatomical adaptation to the patient's body.
Hydraulic Height Adjustment with Remote Control
The ME-600E provides a height adjustment range of 750 mm to 1000 mm without mattress.
Its up-down movement can be controlled through a remote system by Medinain, allowing convenient adjustment of table height.
Kidney Bridge & Perineal Cut-Out
The table incorporates an inbuilt kidney bridge with 130 mm elevation.
A large perineal cut-out for drainage is also included in the design.
Surgical Positioning
The ME-600E provides multiple positioning adjustments for surgical use:
-
Trendelenburg: 25°
-
Reverse Trendelenburg: 25°
-
Lateral tilt: 25° / 25°
-
Backrest: 90° up / 15° down
-
Leg rest: 10° up / 90° down
-
Headrest: 56° up / 90° down
-
Kidney elevator: 130 mm
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
ME-600E |
| Type |
Hydraulic OT Table |
| Tabletop |
Five-section stainless steel |
| Top Dimension |
L 1990 × W 535 mm |
| Height Adjustment |
750–1000 mm without mattress |
| Height Control |
Remote-controlled up-down movement |
| Trendelenburg |
25° |
| Reverse Trendelenburg |
25° |
| Lateral Tilt |
25° / 25° |
| Kidney Elevator |
130 mm |
| Backrest |
90° up / 15° down |
| Leg Rest |
10° up / 90° down |
| Head Rest |
56° up / 90° down |
| Patient Weight Capacity |
200 kg |
| Main Material |
304 stainless steel grade |
| Mattress |
Removable antistatic mattress |
| Kidney Bridge |
Inbuilt |
| Perineal Cut-Out |
Large cut-out for drainage |
| Floor Locking |
Manual |
| Positioning |
Mechanical driver |
| Tabletop Sections |
Five |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
