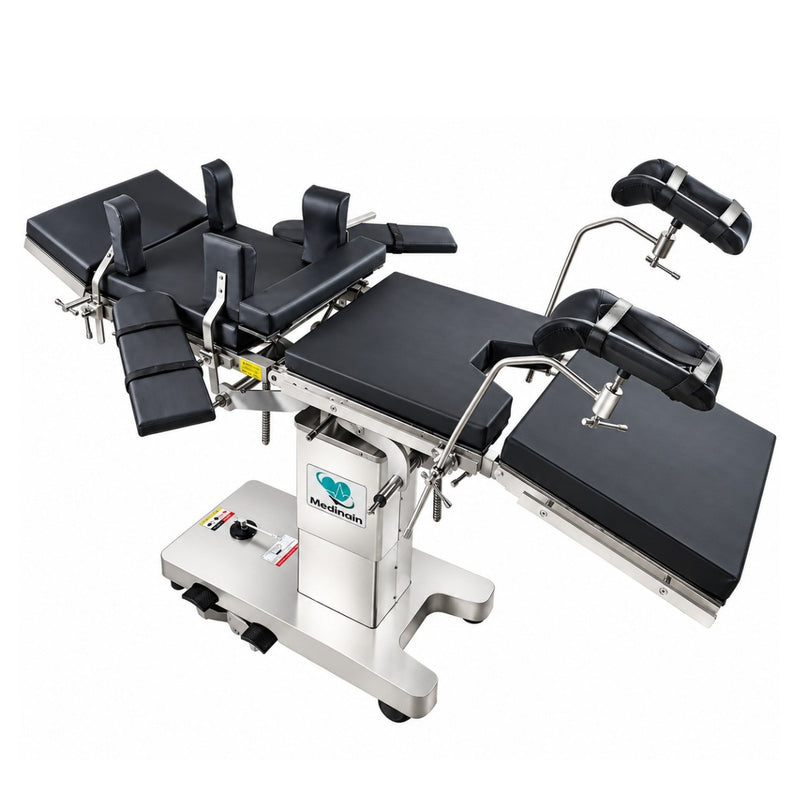

The Medinain ME-600H Hydraulic OT Table is a robust operating theatre table designed for surgical procedures requiring precise patient positioning and reliable hydraulic height adjustment. It features a five-section stainless-steel tabletop, removable antistatic mattresses, a precision hydraulic lifting system, an inbuilt kidney bridge, and a large perineal cut-out for drainage.
The table provides multiple mechanical positioning adjustments, including Trendelenburg, reverse Trendelenburg, lateral tilt, backrest, leg-rest and head-rest movements. With a specified patient weight capacity of 200 kg, the ME-600H is designed for operating room environments requiring a high-capacity surgical table.
✅ Key Features
-
Five-section stainless-steel tabletop for anatomical adaptation to the patient's body.
-
Removable antistatic mattresses supplied with the tabletop.
-
Mechanical positioning system for table adjustments.
-
Precision hydraulic system with single-lever hydraulic lift.
-
Hydraulic lift controlled through a foot pedal.
-
Inbuilt kidney bridge with 130 mm elevation.
-
Large perineal cut-out designed for drainage.
-
Robust stainless-steel shell for a durable operating-room construction.
-
Manual floor locking.
-
Height adjustment from 750–1000 mm without mattress.
-
200 kg patient weight capacity.
Five-Section Stainless-Steel Tabletop
The ME-600H features a five-section stainless-steel tabletop designed to provide anatomical adaptation to the patient's body. The tabletop is equipped with removable antistatic mattresses, providing a practical configuration for operating-room use.
Precision Hydraulic Height Adjustment
The table uses a precision hydraulic system with a single-lever hydraulic lift, controlled through a foot pedal. The specified height adjustment range is 750 mm to 1000 mm without mattress.
Surgical Positioning
The ME-600H provides multiple positioning adjustments to accommodate different surgical requirements:
-
Trendelenburg: 25°
-
Reverse Trendelenburg: 25°
-
Lateral tilt: 25° / 25°
-
Backrest: 90° up / 15° down
-
Leg rest: 10° up / 90° down
-
Head rest: 45° up / 90° down
Inbuilt Kidney Bridge & Perineal Cut-Out
The table incorporates an inbuilt kidney bridge with 130 mm elevation. It also features a large perineal cut-out for drainage, as specified for the ME-600H configuration.
Stainless-Steel Construction
The table is furnished with a hard, robust stainless-steel shell. The stainless-steel construction provides a practical surface for operating-room environments where routine cleaning and sanitation are important.
Manual Floor Locking
The ME-600H includes manual floor locking to secure the table during use.
Technical Specifications
| Specification |
Technical Details
|
| Brand |
Medinain |
| Model |
ME-600H
|
| Type |
Hydraulic OT Table
|
| Tabletop |
Five-section stainless steel
|
| Mattress |
Removable antistatic mattresses
|
| Top Dimension |
L 1990 × W 535 mm
|
| Height Adjustment |
750–1000 mm without mattress
|
| Trendelenburg |
25° |
| Reverse Trendelenburg |
25° |
| Lateral Tilt |
25° / 25°
|
| Kidney Elevator |
130 mm
|
| Backrest |
90° up / 15° down
|
| Leg Rest |
10° up / 90° down
|
| Head Rest |
45° up / 90° down
|
| Patient Weight Capacity |
200 kg
|
| Hydraulic Lift |
Single-lever hydraulic system
|
| Hydraulic Control |
Foot pedal
|
| Kidney Bridge |
Inbuilt |
| Perineal Cut-Out |
Large cut-out for drainage
|
| Floor Locking |
Manual |
| Construction |
Stainless-steel shell
|
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
