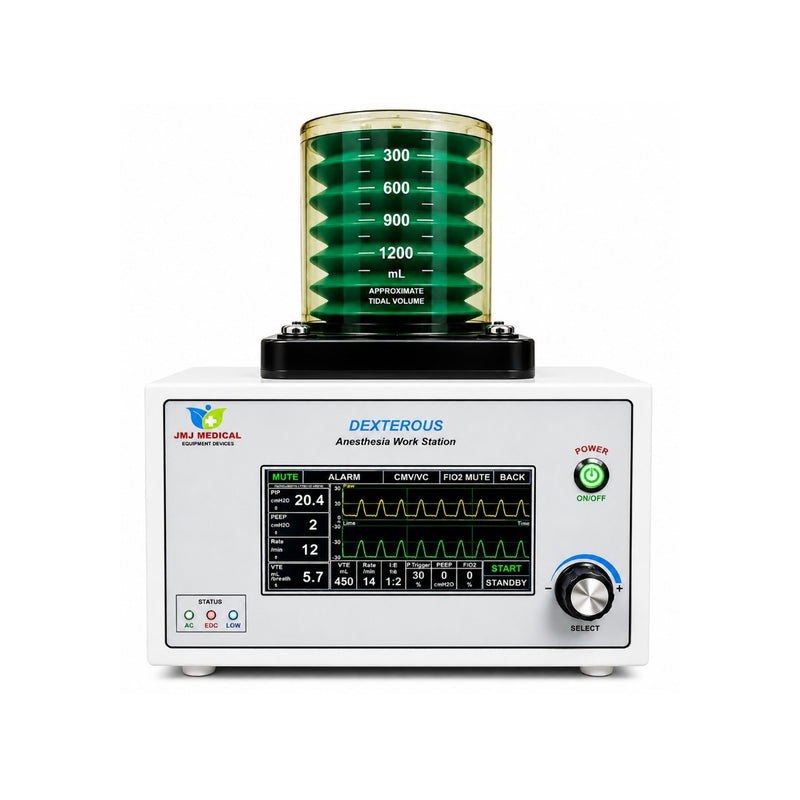

The JMJ Medical Dexterous Anesthesia Ventilator is an advanced anesthesia ventilation system designed for controlled and reliable ventilation during surgical procedures. With a 7-inch touchscreen display, multiple ventilation modes, adjustable ventilation parameters, and comprehensive safety alarms, it is designed to support anesthesia professionals in operating-room environments.
The integrated alarm system provides alerts for high and low airway pressure, patient disconnection, high/low tidal volume, FiO₂ failure or low FiO₂, and source failure, supporting safer ventilation management.
With a 7-inch touchscreen interface, AC 220V power supply, and up to 2 hours of battery backup, the Dexterous is designed for reliable operation in hospital operating theatres. The unit is manufactured in India and supplied with a 1-year warranty.
Key Features
- Advanced anesthesia ventilator for operating-room use
- 7-inch touchscreen display
- Multiple ventilation modes:
- CMV/VC
- CMV/PC
- ACV/VC
- ACV/PC
- SIMV/VC
- SIMV/PC
- Manual
- Wide tidal-volume range: 20–1500 mL
- Respiratory frequency: 1–60 bpm
- PIP range: 0–60 cmH₂O
- Adjustable I:E ratio
- Comprehensive ventilation alarms
- Patient-disconnect alarm
- FiO₂ failure/low-FiO₂ alarm
- Source-failure alarm
- Up to 2 hours battery backup
- AC 220V power supply
- Portable design
- Made in India
Ventilation Modes
| Mode |
Description |
| CMV/VC |
Continuous Mandatory Ventilation / Volume Control |
| CMV/PC |
Continuous Mandatory Ventilation / Pressure Control |
| ACV/VC |
Assist Control Ventilation / Volume Control |
| ACV/PC |
Assist Control Ventilation / Pressure Control |
| SIMV/VC |
Synchronized Intermittent Mandatory Ventilation / Volume Control |
| SIMV/PC |
Synchronized Intermittent Mandatory Ventilation / Pressure Control |
| Manual |
Manual ventilation mode |
Safety Alarm System
The Dexterous provides multiple alarms designed to alert clinicians to important ventilation conditions:
- High airway pressure
- Low airway pressure
- Patient disconnection
- High tidal volume
- Low tidal volume
- FiO₂ failure
- Low FiO₂
- Gas/source failure
Benefits
- Multiple ventilation modes provide clinical flexibility
- Touchscreen interface simplifies operation
- Wide tidal-volume range supports different patient requirements
- Comprehensive alarms help identify ventilation problems quickly
- Battery backup supports continued operation during temporary power interruptions
- Compact portable design is suitable for hospital operating rooms
- Suitable for controlled anesthesia ventilation
Applications
- Hospital Operating Theatres
- Surgical Centres
- Anesthesia Departments
- General Surgery
- Hospital Anesthesia Services
- Procedures Requiring Controlled Ventilation
Technical Specifications
| Specification |
Details |
| Brand |
JMJ Medical Equipment Devices |
| Model |
DEXTEROUS |
| Product Type |
Anesthesia Ventilator |
| Display |
7-inch Touchscreen |
| Ventilation Modes |
CMV/VC, CMV/PC, ACV/VC, ACV/PC, SIMV/VC, SIMV/PC, Manual |
| Tidal Volume |
20–1500 mL |
| Frequency |
1–60 bpm |
| I:E Ratio |
As specified for configuration |
| PIP |
0–60 cmH₂O |
| Alarms |
High/Low Pressure, Patient Disconnect, VT High/Low, FiO₂ Failure/Low, Source Failure |
| Power Supply |
AC 220V |
| Battery Backup |
Up to 2 Hours |
| Equipment Type |
Anesthesia Ventilator |
| Condition |
New |
| Portable |
Yes |
| Country of Origin |
India |
| Warranty |
1 Year |
Important Note
The supplied specifications list Sevoflurane Vaporizer under equipment type, but the provided product information primarily describes the DEXTEROUS as an anesthesia ventilator. Vaporizer inclusion and compatibility should be confirmed with the supplier before purchase.
