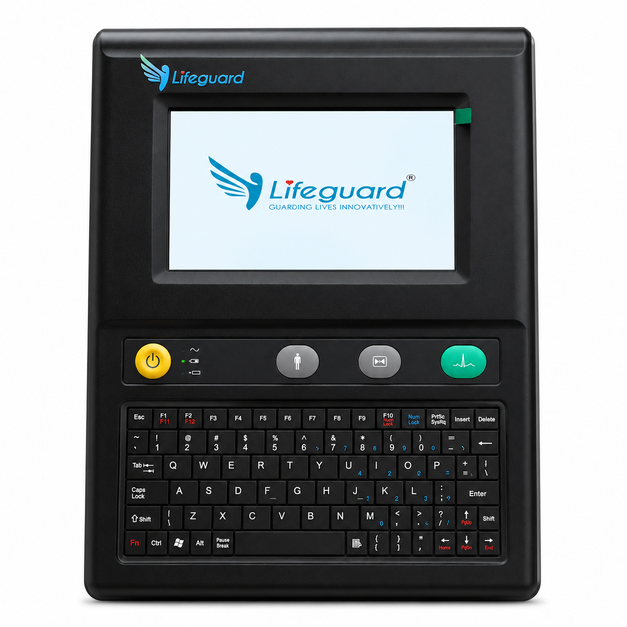

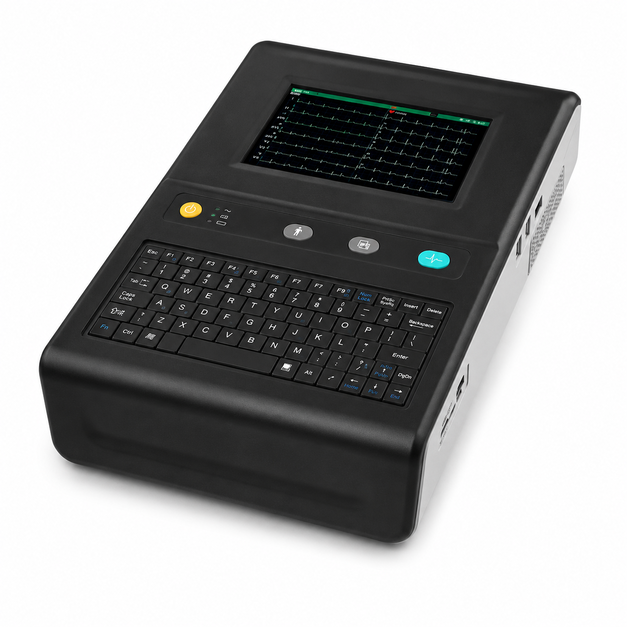

The Digital 12-Lead ECG Machine with 7-inch Touchscreen is an advanced hospital-grade ECG machine developed for accurate cardiac monitoring and comprehensive electrocardiographic analysis. Available at Health Yantra Store, this professional digital ECG machine is designed for cardiology departments, hospitals, emergency rooms, ICUs, diagnostic centres, physician clinics, and healthcare institutions requiring reliable ECG performance.
The ECG machine incorporates pacemaker detection, advanced digital filtering, automatic interpretation, and supports optional advanced cardiac analysis modules including VCG, TVCG, VLP, HRV, and Pharmacological Studies, making it suitable for comprehensive cardiovascular assessment.
Designed for seamless hospital integration, it supports PDF, XML, SCP, DAT, and DICOM formats, with optional HIS integration and Worklist support. Patient records can be transferred through Ethernet, USB, Wi-Fi (optional) or automatically uploaded via FTP or the Might-net ECG Management System.
With storage for up to 1,000 ECG records (expandable using SD cards and USB drives), dual rechargeable battery support, USB peripheral compatibility, and a high-resolution thermal printer, this ECG machine is ideal for continuous clinical use in demanding healthcare environments.
Key Features
Advanced 9/12-Lead ECG Acquisition
- Simultaneous 9 or 12-lead ECG recording
- 16,000 Hz high-speed sampling
- 24-bit A/D conversion
- High diagnostic accuracy
Intelligent ECG Interpretation
- Advanced Might-Gold automatic algorithm
- Accurate ECG measurements
- Automatic interpretation
- Pacemaker detection support
7-inch TFT Touchscreen
- 1024 × 600 high-resolution display
- Full touchscreen operation
- Full keyboard support
- Easy user interface
Superior Signal Quality
- Digital noise filtering
- High input impedance (≥50 MΩ)
- Excellent CMRR (≥120 dB)
- Stable ECG recordings
Advanced Cardiac Analysis (Optional)
- VCG Analysis
- TVCG Analysis
- VLP Analysis
- HRV Analysis
- Pharmacological Study
Large Internal Storage
- Stores up to 1,000 ECG records
- Expandable via SD card
- USB flash drive support
- Efficient patient data management
Hospital Connectivity
- Ethernet connectivity
- USB connectivity
- Optional Wi-Fi
- Supports PDF, XML, DAT, SCP & DICOM
- Optional HIS & Worklist integration
Portable Professional Design
- Rechargeable Lithium-ion battery
- Optional dual battery configuration
- USB printer support
- Compatible with keyboard, mouse & barcode scanner
Benefits
- High-precision 12-lead ECG acquisition
- Advanced automatic ECG interpretation
- Fast and accurate cardiac diagnosis
- Hospital information system compatibility
- Digital record management
- Large patient data storage
- Optional Wi-Fi and DICOM connectivity
- Reliable performance for high-volume hospitals
- Expandable storage and accessories
- Available from Health Yantra Store with expert support
Technical Specifications
| Specification |
Details |
| Product Type |
Digital 9/12 Lead ECG Machine |
| Display |
7-inch TFT Touchscreen |
| Resolution |
1024 × 600 Pixels |
| ECG Leads |
9 / 12 Lead Configurable |
| Sampling Frequency |
16,000 Hz |
| A/D Resolution |
24-bit |
| Heart Rate Range |
30–300 BPM |
| Accuracy |
±1 BPM |
| Input Impedance |
≥50 MΩ |
| CMRR |
≥120 dB |
| Frequency Response |
0.01–300 Hz |
| Pacemaker Detection |
Supported |
| Internal Storage |
Up to 1,000 ECG Records |
| Expandable Storage |
SD Card & USB Flash Drive |
| Connectivity |
Ethernet, USB, Optional Wi-Fi |
| Supported Formats |
DAT, SCP, PDF, XML, DICOM |
| Printer |
Thermal Dot Matrix |
| Paper Size |
210 × 140 mm Folded Thermal Paper |
| Battery |
Rechargeable Lithium-ion 2200 mAh |
| Optional Battery |
Dual 2200 mAh Batteries |
| Power Supply |
AC 100–240V, 50/60Hz |
| Dimensions |
369 × 260 × 83 mm |
| Weight |
Approx. 3.9 kg |
Ideal For
- Hospitals
- Cardiology Departments
- Cardiac Care Units (CCU)
- Intensive Care Units (ICU)
- Emergency Departments
- Diagnostic Centres
- Multispecialty Hospitals
- Medical Colleges
- Physician Clinics
- Corporate Health Check-up Centres
What's Included
- Digital 12-Lead ECG Machine
- Patient ECG Cable
- Rechargeable Lithium-ion Battery
- AC Power Adapter
- Folded Thermal ECG Paper
- User Manual
- Standard Accessories
Warranty
1-Year Manufacturer Warranty against manufacturing defects under normal operating conditions.
