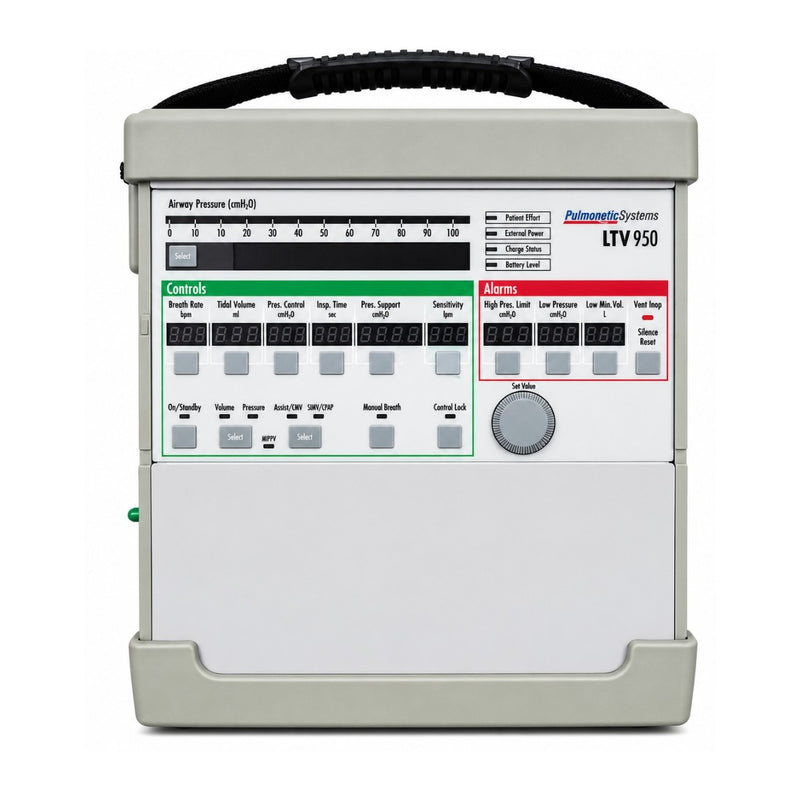

The Refurbished LTV 950 Ventilator is a lightweight, portable life-support ventilator weighing approximately 13.4 lbs (6.1 kg). It provides invasive and non-invasive ventilation for pediatric and adult patients and is designed for use across hospitals, patient transport, and home-care environments.
With volume and pressure-based breath types, NPPV support with leak compensation, multiple ventilation modes, comprehensive alarms, and flexible AC/DC power options, the LTV 950 is suited to applications requiring portable mechanical ventilatory support.
✅ Key Features
- Lightweight portable design — approximately 6.1 kg
- Invasive and non-invasive ventilation
- Suitable for pediatric and adult patients
- Hospital, transport, and home-care applications
- Control / Assist-Control (A/C)
- SIMV ventilation
- CPAP / PEEP
- NPPV with leak compensation
- Volume Control (VC)
- Pressure Control (PC)
- Pressure Support (PS)
- Spontaneous breath type
- Tidal volume range: 50–2,000 mL
- Respiratory rate: 0–80 breaths/min
- PEEP/CPAP: 0–20 cmH₂O
- Inspiratory time: 0.3–9.9 seconds
- Adjustable flow trigger sensitivity
- High- and low-pressure alarms
- Apnea backup
- Low minute-volume alarm
- Disconnect alarm
- External AC, internal battery, and DC transport power options
Ventilation Modes
Control / Assist-Control (A/C)
The LTV 950 can provide mandatory breaths according to the configured settings while also assisting patient-initiated breaths.
SIMV
Synchronized Intermittent Mandatory Ventilation (SIMV) combines mandatory ventilator breaths with opportunities for spontaneous breathing between mandatory breaths.
CPAP / PEEP
CPAP/PEEP maintains positive baseline airway pressure during spontaneous breathing to support the patient's respiratory status.
NPPV
The Non-Invasive Positive Pressure Ventilation (NPPV) function is designed for mask-based ventilatory support and includes leak compensation to accommodate leaks associated with non-invasive interfaces.
Breath Types
The LTV 950 supports several breath types:
-
Volume Control (VC) — volume-targeted ventilation
-
Pressure Control (PC) — pressure-targeted ventilation
-
Pressure Support (PS) — pressure-supported spontaneous breathing
-
Spontaneous — patient-initiated spontaneous breathing
Technical Specifications
| Specification |
Details |
| Brand |
LTV |
| Model |
LTV 950 |
| Condition |
Refurbished |
| Weight |
13.4 lbs / 6.1 kg |
| Patient Categories |
Pediatric and Adult |
| Ventilation |
Invasive & Non-Invasive |
| Tidal Volume |
50–2,000 mL |
| Respiratory Rate |
0–80 breaths/min |
| PEEP / CPAP |
0–20 cmH₂O |
| Inspiratory Time |
0.3–9.9 seconds |
| Flow Trigger / Sensitivity |
Off, 1–9 LPM |
| Ventilation Modes |
Control/A/C, SIMV, CPAP/PEEP, NPPV |
| Breath Types |
VC, PC, PS, Spontaneous |
| NPPV |
Leak compensation |
| High Pressure Alarm |
Supported |
| Low Peak Pressure Alarm |
Supported |
| Apnea Backup |
Supported |
| Low Minute Volume Alarm |
Supported |
| Disconnect Alarm |
Supported |
| Power |
External AC, internal battery, DC transport power |
Â
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
