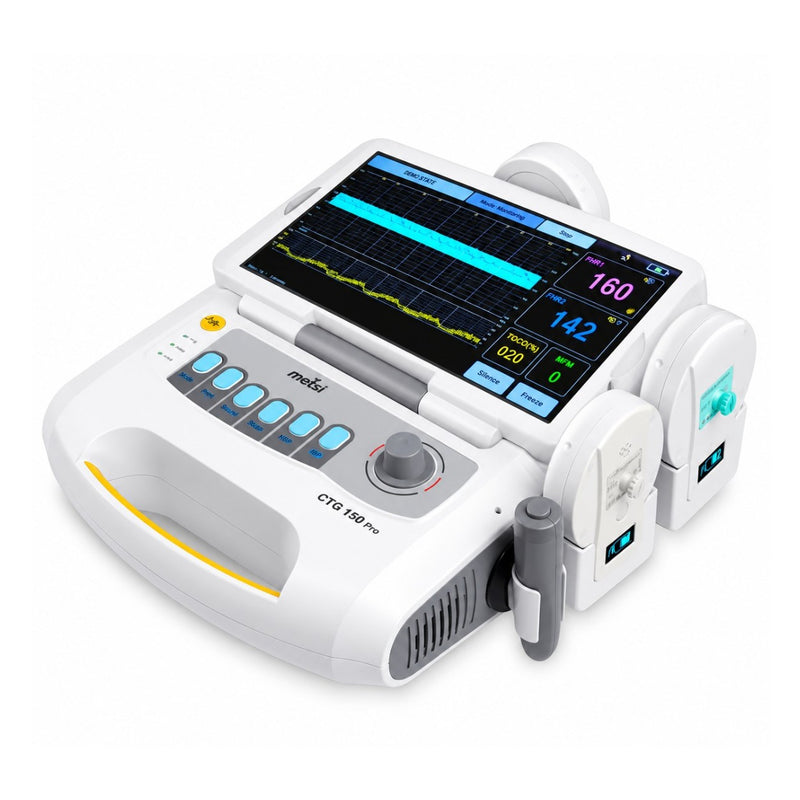

The Maestros CTG 150 Pro is an advanced cardiotocography (CTG) fetal monitor manufactured by Maestros Electronics, designed for prenatal and intrapartum fetal monitoring in hospitals and clinical settings.
The system combines a high-resolution color TFT display, wireless pulse Doppler technology with 9-element transducers, dual-channel Fetal Heart Rate (FHR) monitoring for twin applications, uterine monitoring, automated fetal movement detection, and automatic CTG analysis and scoring.
ā
Key Features
-
High-Resolution Color TFT Display ā Tiltable 10-inch/10.1-inch color TFT screen with optional touchscreen capability.
-
Wireless Pulse Doppler Technology ā Uses wireless pulse Doppler technology with 9-element transducers.
-
Twin FHR Monitoring ā Dual-channel FHR monitoring capability for twin fetal monitoring.
-
High-Sensitivity Transducers ā 9-element transducer technology designed for sensitive fetal heart rate detection.
-
Built-In Thermal Printer ā High-resolution, long-life thermal array printer supporting 150 mm wide paper.
-
Automatic Fetal Movement Detection ā Provides automated fetal movement detection.
-
Automatic CTG Analysis ā Integrated CTG analysis and scoring system.
-
Extended Patient Data Storage ā Patient data storage ranging from 10 to 24 hours according to configuration.
-
USB Connectivity ā Supports USB connectivity.
-
Wi-Fi Connectivity ā Wireless networking capability.
-
Optional Mobile Connectivity ā Optional real-time mobile connectivity is available.
-
Prenatal & Intrapartum Monitoring ā Designed for fetal monitoring during prenatal and intrapartum care.
Product Overview
The Maestros CTG 150 Pro Fetal Monitor is designed for comprehensive cardiotocography monitoring in clinical and hospital environments.
It combines fetal heart rate monitoring, twin fetal monitoring capability, automated fetal movement detection, CTG analysis, data storage, and thermal printing in an integrated fetal monitoring system.
Its wireless pulse Doppler technology with 9-element transducers provides the monitoring platform for fetal heart rate acquisition, while the dual-channel configuration supports monitoring of two fetal heart rates.
10-Inch / 10.1-Inch Color TFT Display
The CTG 150 Pro features a:
High-resolution tiltable 10-inch/10.1-inch color TFT screen
The supplied specifications identify the display as 10" or 10.1", with optional touchscreen capabilities.
Display Features
- High-resolution color TFT
- Tiltable screen
- 10-inch/10.1-inch display
- Optional touchscreen capability
- Designed for fetal monitoring visualization
Wireless Pulse Doppler & 9-Element Transducers
The CTG 150 Pro uses wireless pulse Doppler technology with 9-element transducers.
The supplied specifications identify these transducers as providing high sensitivity and supporting twin monitoring through dual-channel FHR capability.
FHR Monitoring Features
- Wireless pulse Doppler
- 9-element transducers
- High-sensitivity fetal monitoring
- Dual-channel FHR
- Twin monitoring capability
Twin Fetal Monitoring
The Maestros CTG 150 Pro supports dual-channel Fetal Heart Rate monitoring for twin applications.
The dual-channel configuration allows separate fetal heart rate monitoring for each fetus.
This makes the system suitable for clinical environments where twin fetal monitoring is required.

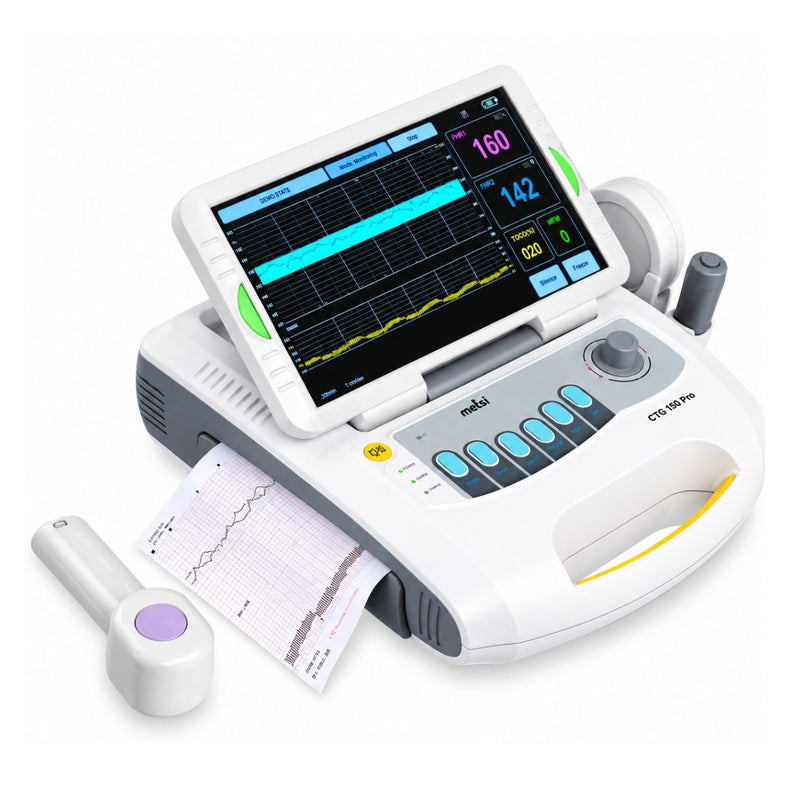

Built-In 150 mm Thermal Printer
The CTG 150 Pro includes a built-in:
High-resolution, long-life thermal array printer
The printer supports 150 mm wide paper and provides instant reporting of monitoring information.
Printer Features
- Built-in thermal array printer
- High-resolution printing
- Long-life thermal technology
- 150 mm wide paper support
- Instant reporting
Automatic CTG Analysis & Scoring
The Maestros CTG 150 Pro features an automatic CTG analysis and scoring system.
This allows the system to automatically analyse recorded cardiotocography data and provide an associated CTG score.
Patient Data Storage
The CTG 150 Pro supports patient data storage ranging from:
10 to 24 hours
The exact storage duration depends on the configuration.
This provides the ability to retain monitoring data for later review and documentation.
Connectivity
The CTG 150 Pro provides multiple connectivity options.
USB
USB connectivity is supported for compatible data-transfer workflows.
Wi-Fi
Integrated Wi-Fi provides wireless connectivity capabilities.
Real-Time Mobile Connectivity
Optional real-time mobile connectivity is available according to configuration.
The supplied information does not specify the mobile platform, wireless standard, server architecture, or data-transfer protocol.
Clinical Applications
The Maestros CTG 150 Pro is designed for prenatal and intrapartum fetal monitoring in hospitals and clinical settings.
Potential applications include:
- Prenatal fetal monitoring
- Intrapartum fetal monitoring
- Cardiotocography (CTG)
- Fetal Heart Rate monitoring
- Twin fetal monitoring
- Fetal movement monitoring
- Automated CTG analysis
- Continuous fetal surveillance
Technical Specifications
| Specification |
Maestros CTG 150 Pro |
| Product Type |
Advanced Cardiotocography (CTG) Fetal Monitor |
| Manufacturer |
Maestros Electronics |
| Display |
High-resolution color TFT |
| Display Size |
10-inch / 10.1-inch |
| Display Design |
Tiltable |
| Touchscreen |
Optional |
| FHR Technology |
Wireless Pulse Doppler |
| Transducer Technology |
9-element transducers |
| FHR Monitoring |
Dual-channel |
| Twin Monitoring |
Supported |
| Printer |
Built-in thermal array printer |
| Printer Type |
High-resolution, long-life thermal |
| Paper Width |
150 mm |
| Fetal Movement Detection |
Automatic |
| CTG Analysis |
Automatic CTG analysis and scoring |
| Patient Data Storage |
10ā24 hours, depending on configuration |
| USB Connectivity |
Supported |
| Wi-Fi |
Supported |
| Mobile Connectivity |
Optional real-time connectivity |
| Primary Application |
Prenatal & Intrapartum Monitoring |
