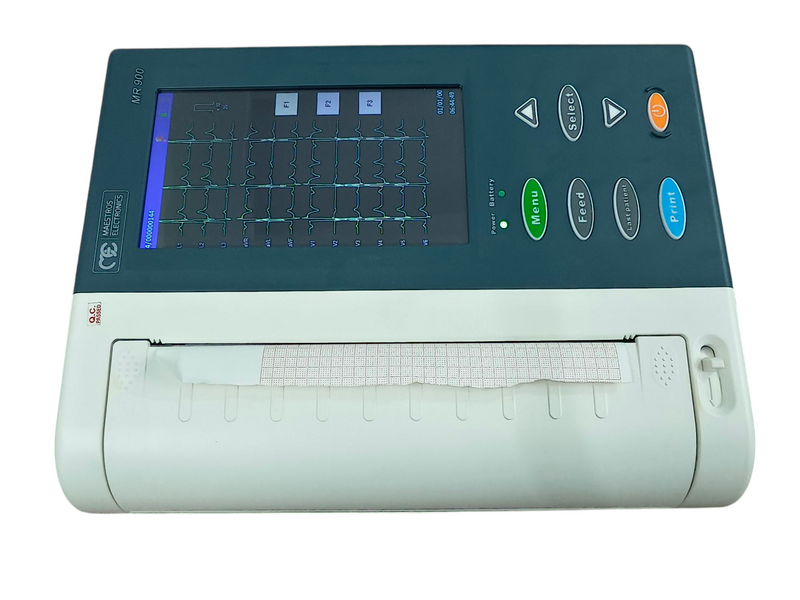

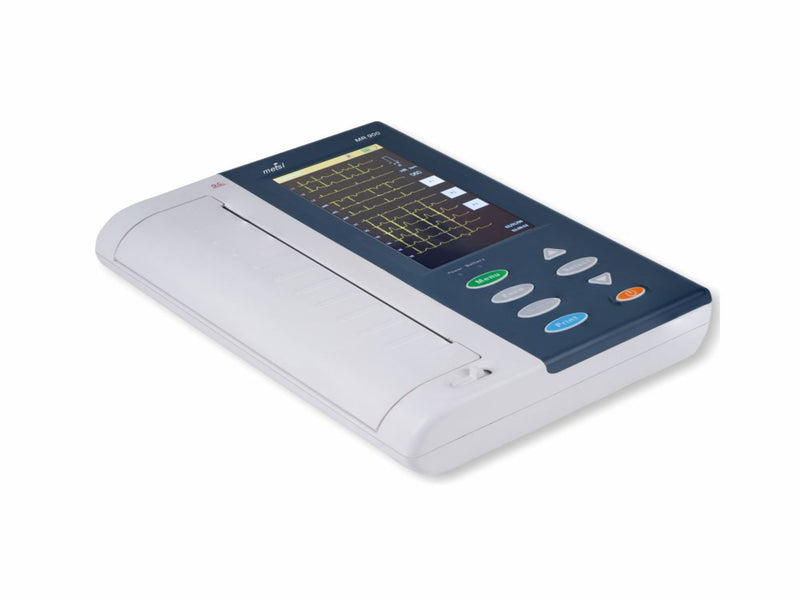

Elevate your cardiac diagnostic capabilities with the Maestros MR 900 12 Channel ECG Machine, an advanced, portable ECG machine engineered for precision, speed, and reliability. Designed by Maestros Electronics, a leading name in medical technology, the MR900 delivers simultaneous 12-lead ECG acquisition, a crisp color display, and built-in auto-interpretation to streamline clinical workflows in hospitals, diagnostic centers, and clinics.
Whether you need detailed A4-size thermal printing or seamless digital PDF exports via USB, the Maestros MR 900 offers versatile operation modes (Auto and Manual) to handle high-patient volumes with ease. Equipped with a long-lasting rechargeable Li-Ion battery capable of running over 50 ECGs on a single charge, this digital resting ECG machine is the ideal solution for both stationary and mobile medical setups.
Key Features
-

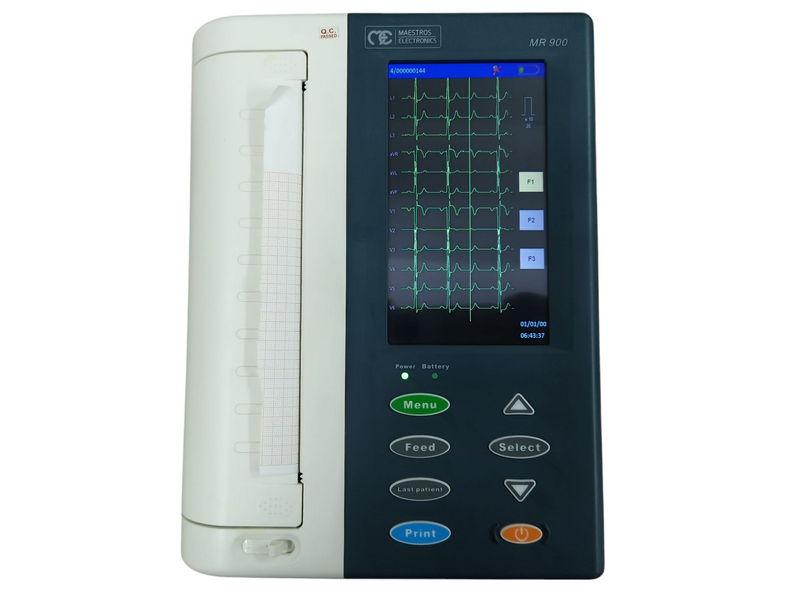

Real-Time 12-Lead Display: A vibrant 7-inch Color TFT Screen allows medical professionals to monitor all 12 leads simultaneously in real time before printing.
-
Auto-Interpretation & Analysis: Features built-in automated ECG measurement algorithms for fast cardiac assessment, calculating key parameters including HR, RR, PR, QRS, QT, and QTc intervals.
-

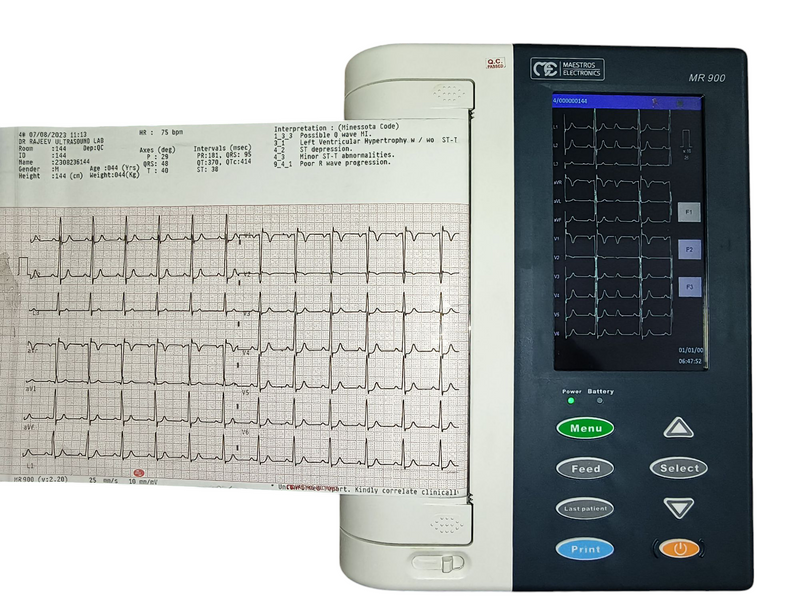

A4 Thermal Printing: Integrated high-resolution thermal array recorder prints full-page, clear reports directly onto standard A4 thermal paper for easy reading and archiving.
-
Versatile Printing Formats:
-
Auto Mode: 3×4+1R, 3×4+3R, 6×2, 12 channel.
-
Manual Mode: 3L, 6L, 12L formats for customized recording flexibility.
-

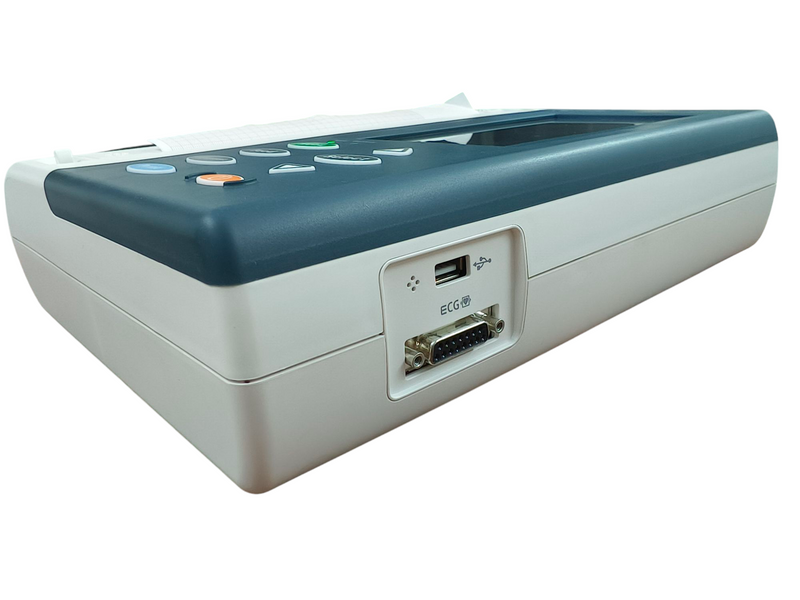

Inbuilt PDF Converter & USB Export: Effortlessly convert ECG waveforms into digital PDF format and transfer data via USB for electronic medical record (EMR) integration or digital sharing.
-
Lead-Off Detection: Automatic alerts inform the operator immediately if an electrode loses contact, ensuring accurate waveform capture every time.
-
Patient Data Management: Built-in memory stores up to 5 ECG records with easy patient data entry fields to streamline patient tracking.
-
Long Battery Backup: A high-capacity 4400 mAh Li-Ion battery supports >50 continuous ECG recordings on a single full charge, ideal for rounds and field operations.
Technical Specifications
| Feature / Parameter |
Details |
| Brand / Model |
Maestros Electronics / MR 900 |
| Type |
Digital, Portable, Resting ECG Machine |
| Channel Capacity |
12 Channel |
| Display |
7-inch Color TFT Screen |
| Operating Modes |
Automatic & Manual |
| Printing System |
Thermal Array Printing (A4 Size Paper) |
| CMRR |
>105 dB |
| Input Impedance |
>10 MΩ |
| Time Constant |
>3.2 Seconds |
| ECG Filters |
AC Filter included |
| ECG Analysis |
HR (bpm), RR, PR, QRS, QT/QTc Intervals, P/QRS/T Axis |
| Internal Memory |
Stores up to 5 ECG Records |
| Data Export |
PDF via USB Storage |
| Battery Type / Capacity |
Li-Ion / 4400 mAh |
| Battery Life |
>50 ECGs per full charge |

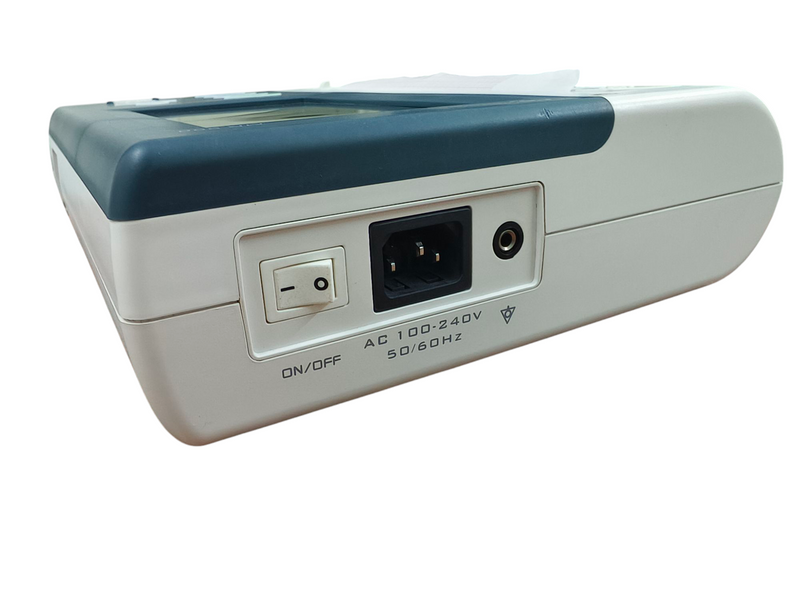

| Power Supply |
AC/DC Dual Operation |
| Dimensions (L × W × H) |
308 mm × 240 mm × 80 mm |
| Weight |
2.7 kg |
What’s in the Box?
When you order the Maestros MR 900 ECG Machine from Health Yantra, your package includes everything required for immediate setup:
-
1 × Maestros MR 900 ECG Main Unit
-
1 × 10-Lead Patient ECG Cable
-
1 Set × Chest Bulb Electrodes (6 Pcs)
-
1 Set × Limb Clamp Electrodes (4 Pcs)
-
1 × Power Cable
-
1 × Earthing Cable
-
1 × A4 ECG Thermal Paper Roll
-
1 × User Manual & Documentation Guide
.
