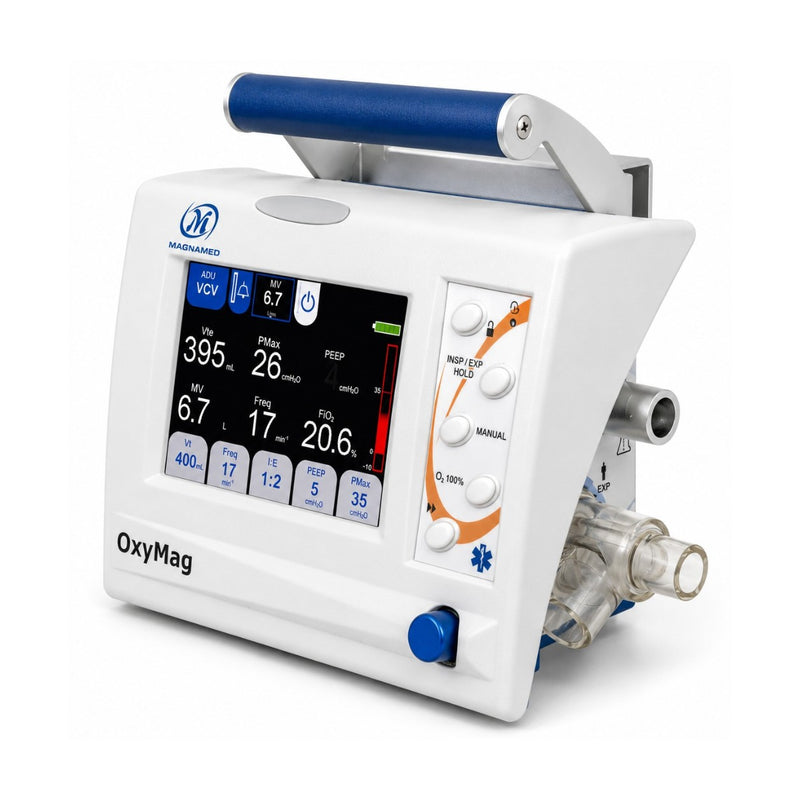

The Refurbished Magnamed Oxymag Transport Ventilator is a compact and lightweight emergency and transport ventilator designed to provide respiratory support for neonatal, pediatric, and adult patients. With a weight of approximately 3.25 kg (6.6 lbs), a 5.7-inch LCD touchscreen, comprehensive ventilation modes, and up to 6.5 hours of battery backup, the Oxymag is designed for portable critical-care applications.
The ventilator supports volume-controlled, pressure-controlled, pressure-limited, SIMV, CPAP/PSV, APRV, and non-invasive ventilation (NIV) modes. It also provides numerical and graphical ventilation monitoring, intelligent alarm functions, and built-in FiO₂ monitoring, with optional SpO₂ and EtCO₂ monitoring depending on configuration.
✅ Key Features
- Refurbished Magnamed Oxymag Transport Ventilator
- Compact and lightweight design
- Approximate weight: 3.25 kg / 6.6 lbs
- Designed for neonatal, pediatric, and adult patients
- 5.7-inch LCD touchscreen
- Tidal volume range: 10–2500 mL
- Respiratory-rate range: 0–150 bpm
- Battery backup of up to 6.5 hours
- Supports invasive and non-invasive ventilation
- Multiple volume-, pressure-, and pressure-limited ventilation modes
- SIMV with Pressure Support
- Dual PAP / APRV
- CPAP / PSV
- NIV mode
- Numerical and graphical ventilation monitoring
- Flow/pressure/volume graphics and loops
- Intelligent alarm system
- Built-in FiO₂ monitoring
- Optional SpO₂ and EtCO₂ monitoring
- Suitable for ground, air, and intra-hospital transport
Ventilation Modes
The Oxymag provides a broad selection of ventilation modes for different respiratory-support requirements.
VCV / VCV-AC
Volume Control Ventilation provides volume-targeted mechanical ventilation. VCV-AC provides assist/control functionality for supported patient-triggered breaths.
PCV / PCV-AC
Pressure Control Ventilation delivers pressure-controlled breaths, with PCV-AC providing assist/control functionality.
PLV / PLV-AC
Pressure Limited Ventilation provides pressure-limited respiratory support, with an assist/control configuration available.
V-SIMV + PS
Volume SIMV with Pressure Support combines synchronized mandatory volume-controlled breaths with pressure support for spontaneous breathing.
P-SIMV + PS
Pressure SIMV with Pressure Support combines synchronized mandatory pressure-controlled breaths with pressure-supported spontaneous breathing.
Dual PAP / APRV
The Oxymag supports Dual PAP / Airway Pressure Release Ventilation (APRV) for applications requiring this advanced pressure-based ventilation strategy.
CPAP / PSV
CPAP / Pressure Support Ventilation provides positive airway pressure and inspiratory assistance for spontaneously breathing patients.
NIV
The ventilator includes a dedicated Non-Invasive Ventilation (NIV) mode for respiratory support using an appropriate patient interface.
Comprehensive Ventilation Monitoring
The Oxymag provides ventilation monitoring using both numerical values and graphical displays.
Monitoring can include visualization of ventilation information through:
- Numerical parameters
- Waveforms
- Graphics
- Loops
These tools help clinicians evaluate ventilator operation and patient-ventilator interaction.
Intelligent Alarm System
The ventilator incorporates an intelligent alarm system designed to alert clinicians to relevant ventilation and patient conditions.
Alarm functionality should be checked during inspection and functional testing of a refurbished unit before clinical deployment.
FiO₂ Monitoring
The Oxymag includes built-in FiO₂ monitoring, allowing clinicians to monitor the oxygen concentration being delivered.
The supplied specifications do not provide a detailed FiO₂ measurement range, so the exact oxygen-monitoring specifications should be confirmed for the individual unit.
Optional SpO₂ & EtCO₂ Monitoring
Depending on configuration, the Oxymag can support optional:
- SpO₂ monitoring
- EtCO₂ monitoring
These optional parameters can extend the ventilator's monitoring capabilities during transport and critical-care applications.
Portable Transport Design
With an approximate weight of 3.25 kg, the Oxymag is designed for mobility in situations where respiratory support needs to continue while a patient is being transported.
The supplied application information includes:
- Ground transport
- Air transport
- Intra-hospital transport
- Emergency response
Its integrated battery provides up to 6.5 hours of battery operation, depending on operating conditions and battery condition.
Technical Specifications
| Specification |
Details |
| Product |
Magnamed Oxymag Transport Ventilator |
| Condition |
Refurbished |
| Device Type |
Emergency & Transport Ventilator |
| Patient Categories |
Neonatal, Pediatric & Adult |
| Weight |
Approx. 3.25 kg / 6.6 lbs |
| Display |
5.7-inch LCD touchscreen |
| Tidal Volume |
10–2500 mL |
| Respiratory Rate |
0–150 bpm |
| Battery Backup |
Up to 6.5 hours |
| Ventilation |
Invasive & Non-Invasive |
| Modes |
VCV/VCV-AC, PCV/PCV-AC, PLV/PLV-AC, V-SIMV+PS, P-SIMV+PS, Dual PAP/APRV, CPAP/PSV, NIV |
| FiO₂ Monitoring |
Built-in |
| SpO₂ |
Optional |
| EtCO₂ |
Optional |
| Monitoring |
Numerical values, graphics & loops |
| Alarms |
Intelligent alarm system |
| Transport Applications |
Ground, air & intra-hospital |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
