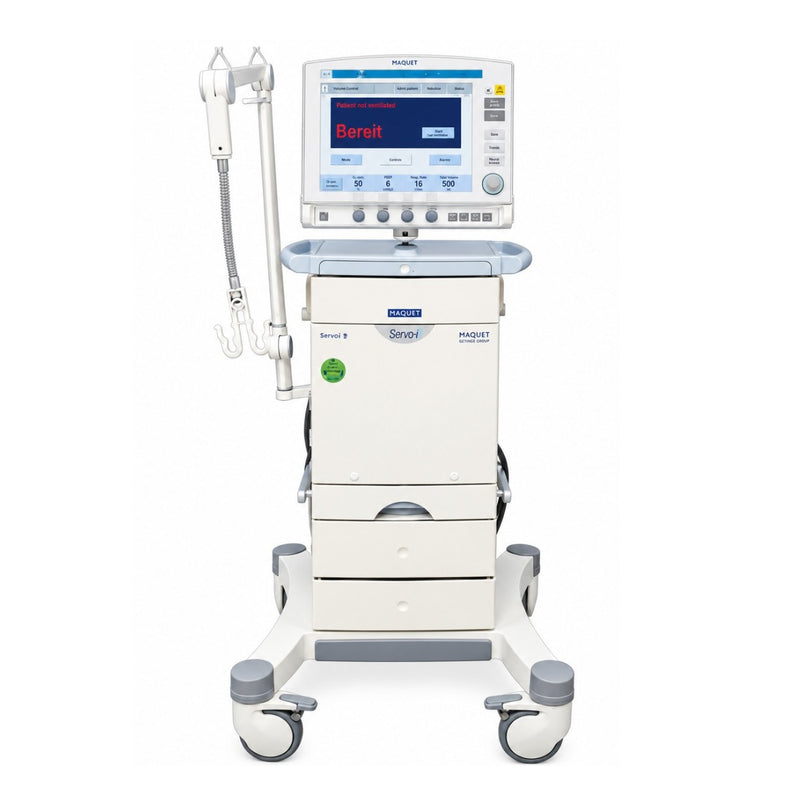

The Maquet Servo-i is an advanced intensive care mechanical ventilator designed for respiratory support across infant, pediatric, and adult patients. Originally manufactured by Maquet, the Servo-i is now associated with Getinge and is widely used for critical-care ventilation applications.
This refurbished Maquet Servo-i ventilator supports both invasive mechanical ventilation and non-invasive ventilation (NIV), with leak compensation for NIV applications. Its modular architecture allows the ventilator to be configured for different patient categories, while optional tools such as Open Lung Tool, Automode and CO₂ analyzers provide additional clinical functionality.
The Servo-i is mounted on a mobile tower cart with an adjustable display panel, while hot-swappable battery slots support continued operation during patient transport and power transitions.
✅ Key Features
-
Infant to adult ventilation: Designed for a broad patient population from very small infants to adults.
-
Modular configuration: Interchangeable software modules and settings allow adaptation to different patient categories.
-
Invasive ventilation: Supports conventional mechanical ventilation in critical-care environments.
-
Non-invasive ventilation: Provides NIV with leak-compensation functionality.
-
Open Lung Tool: Available as an advanced monitoring/assessment option.
-
Automode: Optional automated ventilation functionality.
-
CO₂ analysis: Optional CO₂ analyzer capability.
-
Hot-swappable batteries: Battery slots allow battery replacement during operation/transport without relying solely on mains power.
-
Wide tidal-volume capability: Approximately 10–4,000 mL, depending on patient setup.
-
Adjustable display: Touch/dial display panel can be adjusted and rotated for convenient viewing.
-
Mobile tower cart: Provides a transportable ICU workstation configuration.
-
Hospital applications: Suitable for ICU, emergency care and intra-hospital transport.
Patient Range
The Servo-i is designed to accommodate:
- Infant patients
- Pediatric patients
- Adult patients
Its modular configuration allows appropriate software and ventilation settings to be selected according to the patient category.
The supplied specification gives a broad tidal-volume range of approximately 10 mL to 4,000 mL, with the actual applicable range dependent on patient setup and configuration.
Invasive & Non-Invasive Ventilation
Invasive Ventilation
The Servo-i provides mechanical ventilation for patients requiring invasive respiratory support in critical-care environments.
Non-Invasive Ventilation (NIV)
The ventilator also supports NIV and includes leak compensation to help maintain effective patient-ventilator interaction when ventilation is delivered through a mask or other non-invasive interface.
Advanced Clinical Tools
Depending on the installed options, the Servo-i can be equipped with advanced functions including:
Open Lung Tool
The Open Lung Tool is an optional functionality intended to provide additional information for assessment and management of lung recruitment and respiratory mechanics.
Automode
Automode is an optional automated ventilation feature designed to adapt ventilation support according to patient interaction and selected settings.
CO₂ Analyzer
A CO₂ analyzer can be included as an option for monitoring carbon-dioxide-related respiratory parameters.
Availability of these functions depends on the specific software and hardware configuration of the refurbished unit.
Battery & Transport System
The Servo-i incorporates hot-swappable battery slots, supporting battery replacement during transport and power transitions.
This feature can be useful for:
- Intra-hospital transport
- ICU-to-ICU movement
- Emergency movement
- Temporary loss of mains power
- Continuous ventilation during battery changes
Display & Mobile Configuration
The Servo-i is mounted on a mobile tower cart and features an adjustable display panel.
The display can be:
- Rotated
- Adjusted for viewing position
- Operated using touch/dial controls
Technical Specifications
| Specification |
Details |
| Manufacturer |
Maquet |
| Current Brand/Company Association |
Getinge |
| Model |
Servo-i |
| Equipment Type |
ICU mechanical ventilator |
| Condition |
Refurbished |
| Patient Population |
Infant, pediatric & adult |
| Ventilation |
Invasive & non-invasive |
| NIV Leak Compensation |
Supported |
| Tidal Volume |
Approx. 10–4,000 mL |
| Tidal Volume Dependency |
Varies according to patient setup |
| Open Lung Tool |
Optional |
| Automode |
Optional |
| CO₂ Analyzer |
Optional |
| Battery System |
Hot-swappable battery slots |
| Display |
Adjustable touch/dial display |
| Display Movement |
Rotatable |
| Mounting |
Mobile tower cart |
| Primary Applications |
ICU, emergency care & intra-hospital transport |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
