The Mediana D100 Monitor Defibrillator is a portable 4-in-1 biphasic defibrillator and patient monitor designed for professional emergency and critical-care applications. It combines manual defibrillation, AED operation, external pacing, and essential patient monitoring in a compact unit suitable for adult, pediatric, and infant patients.
The D100 provides user-selectable biphasic defibrillation energy, synchronized cardioversion, demand or fixed pacing, ECG monitoring, respiration monitoring, and Nellcor™ OxiMax™ SpO₂ monitoring. Its integrated rechargeable battery, event/trend memory, convertible adult/pediatric paddles, and thermal recorder support emergency response workflows.
Key Features
-
4-in-1 emergency system: Manual defibrillator, AED, external pacer, and patient monitor
-
Biphasic defibrillation: 10J–200J across 12 selectable energy levels
-
Synchronized cardioversion capability
-
AED mode with voice and text prompts
-
Simultaneous ECG analysis during AED operation
-
External pacing: Fixed and demand modes
- 3-lead or 5-lead ECG monitoring
- Respiration rate monitoring
- Nellcor™ OxiMax™ SpO₂ monitoring
-
Suitable for adult, pediatric, and infant patients
- 7-inch TFT color LCD
-
Displays up to 3 real-time waveforms
-
5.5 kg including rechargeable battery
- Rechargeable lithium-ion battery
-
Over 5 hours of continuous monitoring or minimum 200 shocks at 200J
-
Internal memory for 250 events and 5,000 trends
- SD card expansion
- Convertible adult and pediatric external paddles
- Integrated thermal recorder/printer
Manual Defibrillation
The Mediana D100 provides manually selected biphasic defibrillation energy from 10J to 200J across 12 levels:
The system also supports synchronized cardioversion for clinical situations requiring synchronized shock delivery.
AED Mode
The integrated Automated External Defibrillator (AED) mode supports emergency resuscitation with:
- Voice prompts
- Text prompts
- Simultaneous ECG analysis
- High-voltage charging
- Designed to minimize shock delivery time
AED operation provides guided assistance while allowing trained healthcare professionals to respond to detected cardiac rhythms.
External Pacing
The D100 incorporates an external pacing function using multifunction chest pads.
It supports:
- Fixed pacing mode
- Demand pacing mode
- External pacing through multifunction chest pads
This makes the device suitable for emergency management where temporary non-invasive pacing may be required.
Patient Monitoring
The patient monitor section supports monitoring for adult, pediatric, and infant patients.
ECG
- 3-lead or 5-lead ECG
- Real-time ECG waveform display
- Up to 3 simultaneous real-time waveforms on the display
SpO₂
The device provides oxygen saturation monitoring using Nellcor™ OxiMax™ SpO₂ technology.
Respiration
The monitor also tracks respiration rate, providing an additional vital-sign parameter during emergency care.

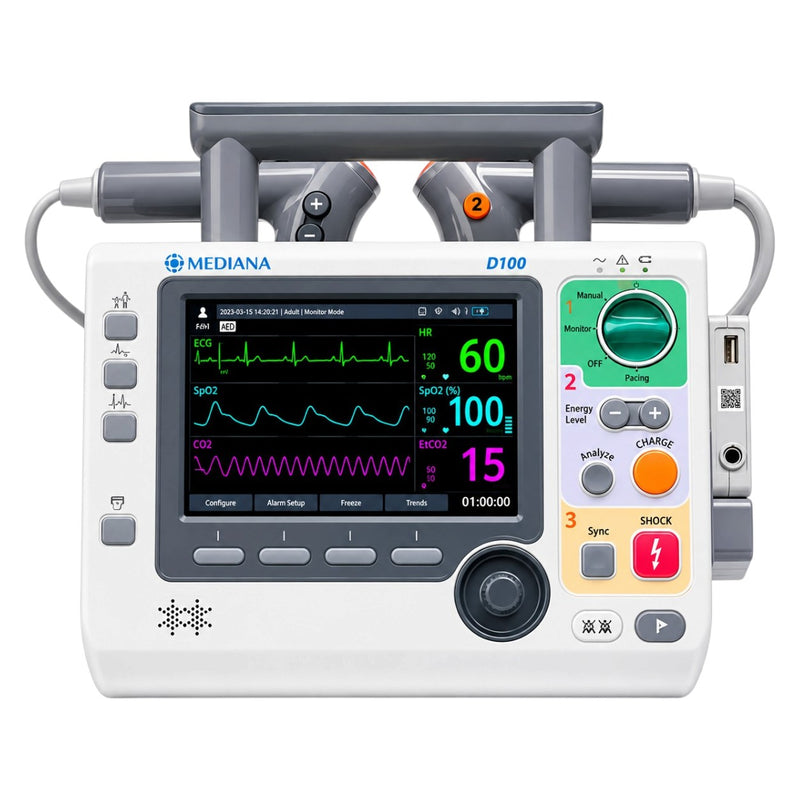

Display
The Mediana D100 features a 7-inch TFT color LCD designed to present key monitoring and defibrillation information clearly.
The display can show up to 3 real-time waveforms, allowing clinicians to view multiple parameters simultaneously.
Battery & Power
The D100 uses a rechargeable lithium-ion battery.
According to the supplied specifications, one fully charged battery provides:
-
More than 5 hours of continuous monitoring, or
-
A minimum of 200 shocks at 200J
Actual operating performance can vary depending on operating mode, monitoring configuration, battery condition, and usage.
Data Storage
The D100 incorporates internal memory for recording clinical events and trends.
- 250 events
- 5,000 trends
- SD card expansion capability
This provides a means of reviewing stored emergency and monitoring information.

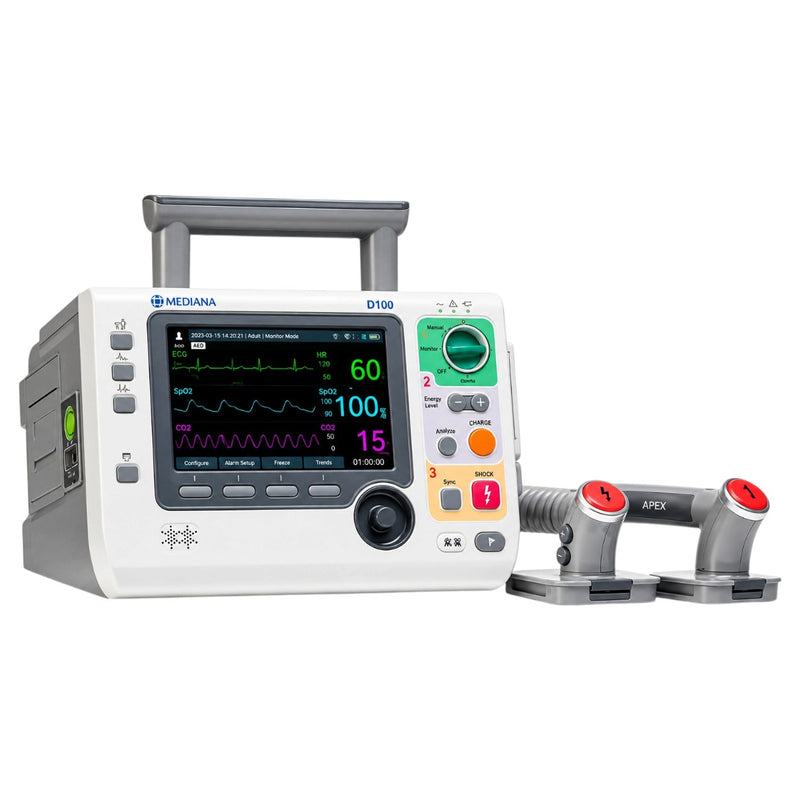

Paddles & Thermal Recorder
The system includes convertible adult and pediatric external paddles, allowing the same paddle system to accommodate different patient sizes.
An integrated thermal recorder/printer is also provided for recording relevant clinical information.
Technical Specifications
| Specification |
Mediana D100 |
| Device Type |
4-in-1 Monitor Defibrillator |
| Defibrillation |
Biphasic |
| Manual Energy |
10J–200J |
| Energy Levels |
12 |
| Synchronized Cardioversion |
Yes |
| AED |
Yes |
| External Pacing |
Fixed & Demand |
| ECG |
3-lead / 5-lead |
| SpO₂ |
Nellcor™ OxiMax™ |
| Respiration |
Yes |
| Display |
7-inch TFT Color LCD |
| Waveform Display |
Up to 3 real-time waveforms |
| Patient Types |
Adult, Pediatric, Infant |
| Battery |
Rechargeable Lithium-ion |
| Monitoring Runtime |
Over 5 hours |
| Battery Shock Capacity |
Minimum 200 shocks at 200J |
| Internal Memory |
250 events / 5,000 trends |
| Memory Expansion |
SD Card |
| External Paddles |
Convertible Adult/Pediatric |
| Recorder |
Integrated Thermal Recorder/Printer |
| Weight |
5.5 kg including battery |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
