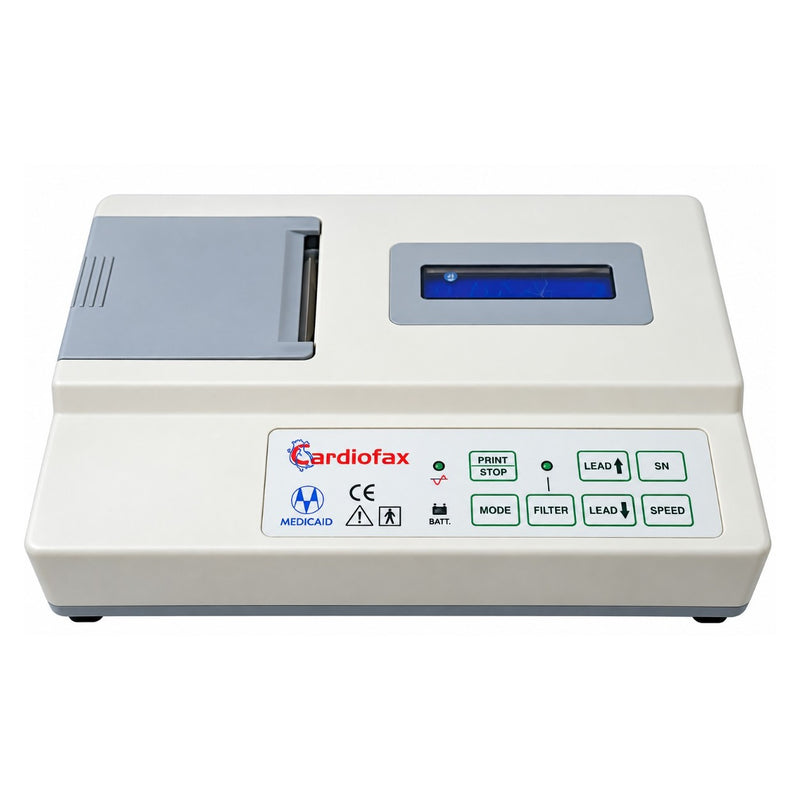

The Medicaid Cardiofax-1Ch is a compact single-channel digital ECG machine designed for clinics, small hospitals, and mobile healthcare settings. It supports 12-lead simultaneous ECG acquisition, automatic and manual operating modes, waveform preview, parameter calculations, thermal printing, and USB connectivity for computer-based data export.
Its compact design, built-in rechargeable battery, and integrated charger make it suitable for portable and emergency ECG recording applications.
Product Description
The Cardiofax-1Ch combines a single-channel ECG recording format with simultaneous 12-lead acquisition. A backlit LCD provides waveform and patient-data viewing, while the feather-touch membrane keypad enables simple operation.
The machine supports both automatic and manual modes, along with automatic and manual parameter calculations. Its thermal array printer provides hard-copy ECG recording, while USB connectivity enables computer data export.
✅ Key Features
- Compact single-channel digital ECG machine
- 12-lead simultaneous acquisition
- High-quality thermal array printing
- Automatic and manual operating modes
- Automatic and manual parameter calculations
- Backlit LCD display
- Waveform preview
- Patient-data display
- One-button operation
- Feather-touch membrane keypad
- Built-in rechargeable battery
- Integrated battery charger
- USB connectivity
- Computer data export
- Copy facility
- EMG filter
- Baseline filter
12-Lead Simultaneous Acquisition
Although the Cardiofax-1Ch uses a single-channel recording format, it supports simultaneous acquisition of all 12 ECG leads.
This allows ECG data to be acquired for routine clinical assessment while maintaining a compact machine configuration.
Thermal Array Printing
The Cardiofax-1Ch incorporates a thermal array printer for ECG recording.
Thermal printing provides a convenient paper-based format for reviewing and documenting recorded ECG waveforms.
Automatic & Manual Modes
The ECG machine supports both:
- Automatic operation
- Manual operation
Automatic and manual parameter calculation functions are also available, providing flexibility for different ECG recording workflows.
LCD Display
A backlit LCD display allows users to view patient information and preview ECG waveforms during operation.
The display provides a practical interface for reviewing parameters before or during ECG recording.
One-Button Operation
The Cardiofax-1Ch uses a feather-touch membrane keypad and supports one-button operation, helping simplify routine ECG acquisition.
Rechargeable Battery
A built-in rechargeable battery and integrated charger support portable operation.
This makes the Cardiofax-1Ch suitable for mobile healthcare environments and situations where AC power may not be immediately available.
USB Connectivity
The system provides USB connectivity for computer-based ECG data export. A copy facility is also included according to the supplied specifications.
ECG Filters
The Cardiofax-1Ch includes:
-
EMG filter for reducing muscle-related interference
-
Baseline filter for minimizing baseline-related artifacts
These filtering functions can help improve the clarity of ECG recordings under appropriate operating conditions.
Clinical Applications
The Medicaid Cardiofax-1Ch can be used in:
- General clinics
- Small hospitals
- Primary healthcare facilities
- Cardiology departments
- Outpatient departments
- Mobile healthcare services
- Emergency healthcare settings
- Routine ECG screening and recording
Technical Specifications
| Specification |
Details |
| Brand / Manufacturer |
Medicaid |
| Model |
Cardiofax-1Ch |
| Condition |
New / configuration dependent |
| Machine Type |
Digital ECG Machine |
| Recording Channels |
Single Channel |
| ECG Acquisition |
12-lead simultaneous acquisition |
| Printing |
Thermal array printing |
| Operating Modes |
Automatic & Manual |
| Parameter Calculation |
Automatic & Manual |
| Display |
Backlit LCD |
| Waveform Preview |
Available |
| Operation |
One-button operation |
| Keypad |
Feather-touch membrane keypad |
| Battery |
Built-in rechargeable battery |
| Charger |
Integrated |
| Connectivity |
USB |
| Computer Data Export |
Available |
| Copy Facility |
Available |
| Frequency |
50 Hz |
| Polarization Voltage |
220 V enduring polarization voltage |
| Recording Speed |
5 mm/s |
| Filters |
EMG and baseline filters |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
