Product Description

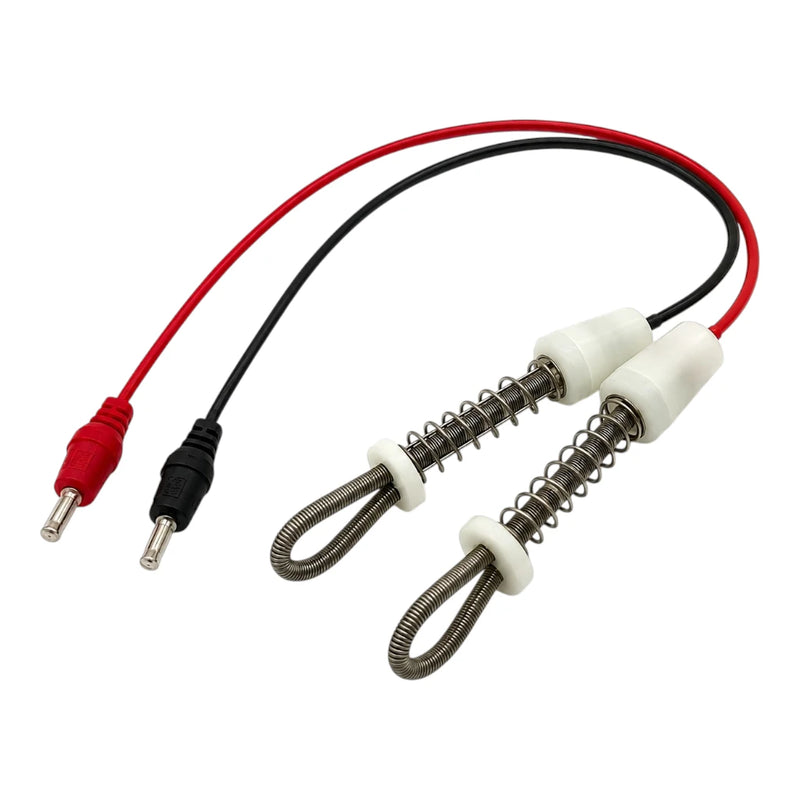

The Medicaid EMG Sensory Ring Electrodes are specialized, reusable NCV ring electrodes designed for sensory nerve conduction velocity (NCV) and electromyography (EMG) examinations. These ring-shaped electrodes are designed to fit securely around fingers or toes and can be used for both sensory nerve stimulation and recording of sensory nerve action potentials (SNAPs).
The electrodes feature adjustable stainless steel rings with a smooth-moving slider that allows the ring size to be adjusted and locked securely into position. The design helps provide stable electrode placement during neurodiagnostic examinations while supporting patient comfort.

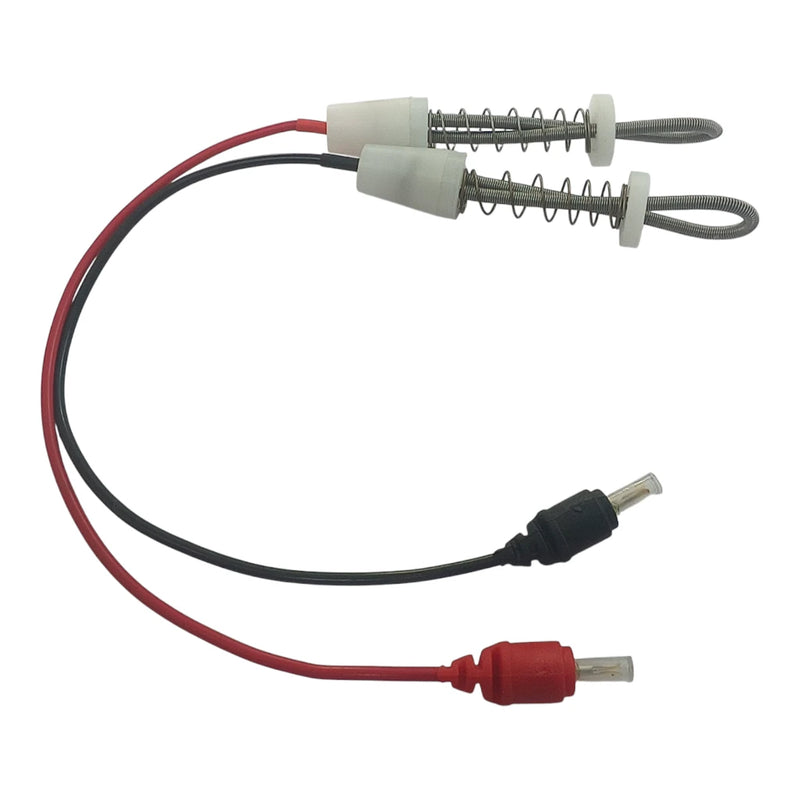

The set includes two ring electrodes, comprising a red active electrode and black reference electrode, with extra-flexible red-and-black twisted lead wires approximately 30 cm in length. These reusable EMG sensory ring electrodes are specifically designed for Medicaid Systems EMG/NCV/EP equipment, including Neurostim Ultra and Neuroperfect Plus.
Conductive gel should be applied to the electrode contact area during use to help establish appropriate electrical contact.
Key Features
-
Designed for sensory NCV and EMG examinations
-
Suitable for both stimulation and recording of sensory nerve responses
-
Adjustable circular ring design for fingers or toes
-
Smooth-moving slider locks securely into position
-
Durable conductive stainless steel construction
-
Extra-flexible red-and-black twisted lead wires
-
Red electrode for active connection and black electrode for reference
-
Approx. 30 cm lead length
-
Reusable design for repeated clinical use
-
Conductive gel required during application
-
Designed for Medicaid EMG/NCV/EP systems
-
Compatible with Medicaid Neurostim Ultra and Neuroperfect Plus
-
Pack contains two ring electrodes
Technical Specifications
| Specification |
Details |
| Product Name |
EMG Sensory Ring Electrodes |
| Brand |
Medicaid |
| Product Type |
NCV Sensory Ring Electrodes |
| Application |
EMG / Sensory NCV |
| Function |
Stimulation & Recording |
| Material |
Conductive Stainless Steel |
| Design |
Adjustable Circular Ring |
| Adjustment |
Sliding Mechanism |
| Lead Wire |
Extra-Flexible Red & Black Twisted |
| Lead Length |
Approx. 30 cm |
| Electrodes |
Red Active + Black Reference |
| Pack Size |
2 Ring Electrodes |
| Reusable |
Yes |
| Conductive Gel |
Required during application |
| Compatibility |
Medicaid EMG/NCV/EP Machines |
| Compatible Models |
Neurostim Ultra, Neuroperfect Plus |
| Application Site |
Fingers / Toes |
Use Guide
-
Connect the red active and black reference ring electrodes according to the EMG/NCV machine's connection requirements.
-
Apply suitable conductive gel to the electrode contact surfaces.
-
Place the rings around the appropriate finger or toe as required for the sensory NCV examination.
-
Adjust the slider to achieve a secure and comfortable fit without excessive pressure.
-
Perform stimulation or recording according to the applicable EMG/NCV testing protocol.
-
After use, clean the electrodes according to the manufacturer's recommended cleaning procedure.
-
Dry completely and store in a clean, dry location.
-
Inspect the rings, sliders and lead wires for damage before subsequent use.
Important: These electrodes should be used by trained healthcare professionals and in accordance with the instructions for the compatible electrodiagnostic equipment.
