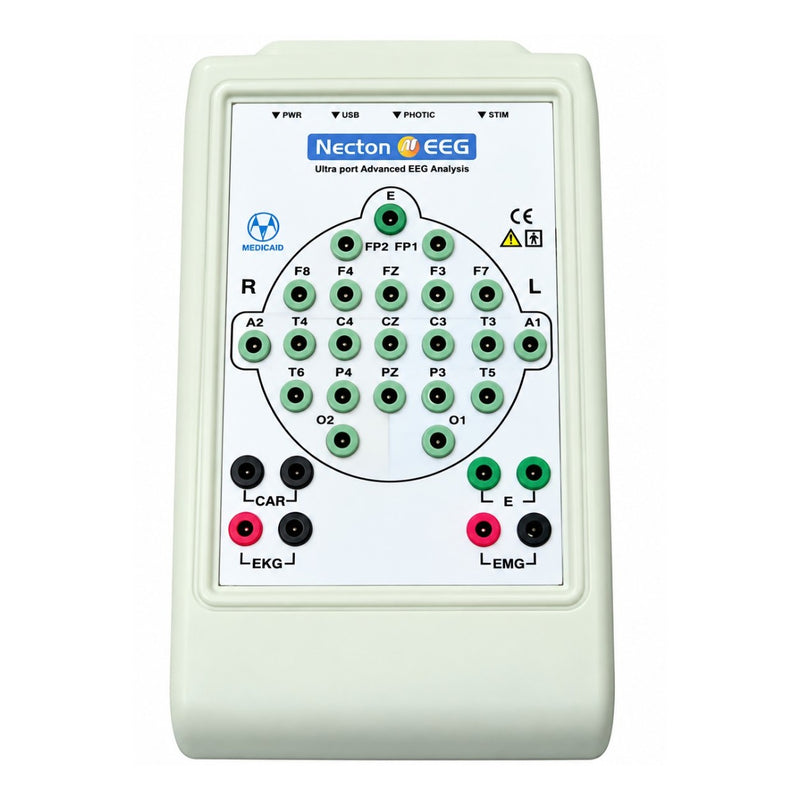

The Medicaid Necton 24-Channel EEG System is an ultra-portable, USB-powered pocket EEG machine designed for convenient brain activity recording in clinical and mobile healthcare environments. The system provides 24 continuous digital EEG channels, high-precision brain mapping, and advanced auto-spike detection capabilities in a compact amplifier weighing just 200 grams.
Designed for laptop-based operation, the Necton uses USB plug-and-play connectivity without an AC adapter and supports simultaneous live acquisition and offline analysis through a split-screen interface. Its flexible software architecture also allows montage and filter reformatting during monitoring.
Product Description
The Medicaid Necton 24-Channel EEG Machine combines portable EEG acquisition with advanced digital analysis tools. Its pocket-sized amplifier is designed for applications where portability is important, including emergency setups and home visits.
The system captures raw EEG data across 24 continuous digital channels with a maximum sampling frequency of 1024 Hz and a processing frequency bandwidth of 0ā150 Hz.
Integrated analysis capabilities include QEEG, 3D voltage brain mapping, and spike/seizure detection. Optional video EEG camera and LED photic stimulation capabilities can further expand the system according to configuration.
ā
Key Features
- Ultra-portable 24-channel EEG machine
- Pocket-portable amplifier
- Amplifier weight of approximately 200 grams
- USB plug-and-play operation
- Connects directly to a laptop
- No AC adapter required
- No battery required
- 24 continuous digital channels for raw EEG data
- Maximum sampling frequency of 1024 Hz
- Frequency bandwidth of 0ā150 Hz
- Split-screen live acquisition and offline analysis
- Unlimited montage reformatting
- Filter reformatting during monitoring
- Built-in Brain Mapping
- Integrated QEEG
- 3D voltage mapping
- Auto spike detection
- Spike/seizure detection
- Optional video EEG camera synchronization
- Optional LED photic stimulator
- Optical isolation for electrical safety and isolation from environmental electrical loop interference
Ultra-Portable Pocket Design
The Necton amplifier weighs approximately 200 grams, giving the system a compact, pocket-portable form factor.
This lightweight configuration is particularly suited to situations where EEG equipment needs to be transported easily, including emergency setups and home visits.
USB Plug-and-Play Connectivity
The system connects directly to a laptop through USB and is designed to operate without an AC adapter.
This helps simplify installation and makes the Necton suitable for mobile EEG applications where conventional powered equipment may be less convenient.
24-Channel Digital EEG Acquisition
The Medicaid Necton provides 24 continuous digital channels for raw EEG data capture.
Simultaneous multi-channel acquisition enables brain electrical activity to be recorded across the configured EEG channels for subsequent review and analysis.
Split-Screen Acquisition & Analysis
The software provides a split-screen workflow, allowing users to perform live acquisition while also accessing offline analysis within the same working environment.
This can help streamline EEG monitoring and data review.
Unlimited Montage & Filter Reformatting
During monitoring, the system supports unlimited montage and filter reformatting, providing flexibility in how recorded EEG data is displayed and analyzed.
Advanced Brain Mapping
The Necton incorporates advanced brain-mapping capabilities, including:
- QEEG
- 3D voltage mapping
- Spike detection
- Seizure detection
These tools provide additional methods for analyzing acquired EEG data.
Optional Video EEG & Photic Stimulation
The system can be upgraded to work with optional accessories including:
- Video EEG camera
- LED photic stimulator
Availability depends on the selected system configuration.
Clinical Applications
The Medicaid Necton 24-Channel EEG System can be used for:
Emergency EEG Applications
Its lightweight, USB-powered pocket design makes it suitable for mobile and emergency EEG setups where portability is important.
Home Visits
The compact amplifier can support EEG applications during home visits, subject to the appropriate clinical setup and computer/accessory configuration.
Routine EEG
The 24-channel digital acquisition system can be used for routine EEG recording and analysis.
Brain Mapping
Integrated QEEG and 3D voltage mapping provide additional analysis capabilities for neurophysiological assessment.
Spike & Seizure Detection
The system includes advanced auto-spike and spike/seizure detection capabilities to assist EEG review.
Technical Specifications
| Specification |
Details |
| Brand |
Medicaid |
| Model / Series |
Necton 24-Channel |
| Product Type |
Ultra-Portable Digital EEG System |
| EEG Channels |
24 continuous digital channels |
| Data Type |
Raw EEG data capture |
| Amplifier Weight |
200 g |
| Sampling Rate |
Up to 1024 Hz |
| Frequency Bandwidth |
0ā150 Hz |
| Connectivity |
USB |
| Operation |
USB Plug-and-Play |
| AC Adapter |
Not required |
| Battery |
Not required |
| Live Acquisition |
Supported |
| Offline Analysis |
Supported simultaneously via split-screen |
| Montage Reformatting |
Unlimited |
| Filter Reformatting |
Supported during monitoring |
| Brain Mapping |
Built-in |
| QEEG |
Supported |
| 3D Voltage Mapping |
Supported |
| Auto Spike Detection |
Supported |
| Spike/Seizure Detection |
Supported |
| Video EEG |
Optional camera integration |
| Photic Stimulation |
Optional LED photic stimulator |
| Electrical Isolation |
Optical isolation hardware |
| Primary Applications |
Routine EEG, emergency setups, home visits and advanced EEG analysis |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
