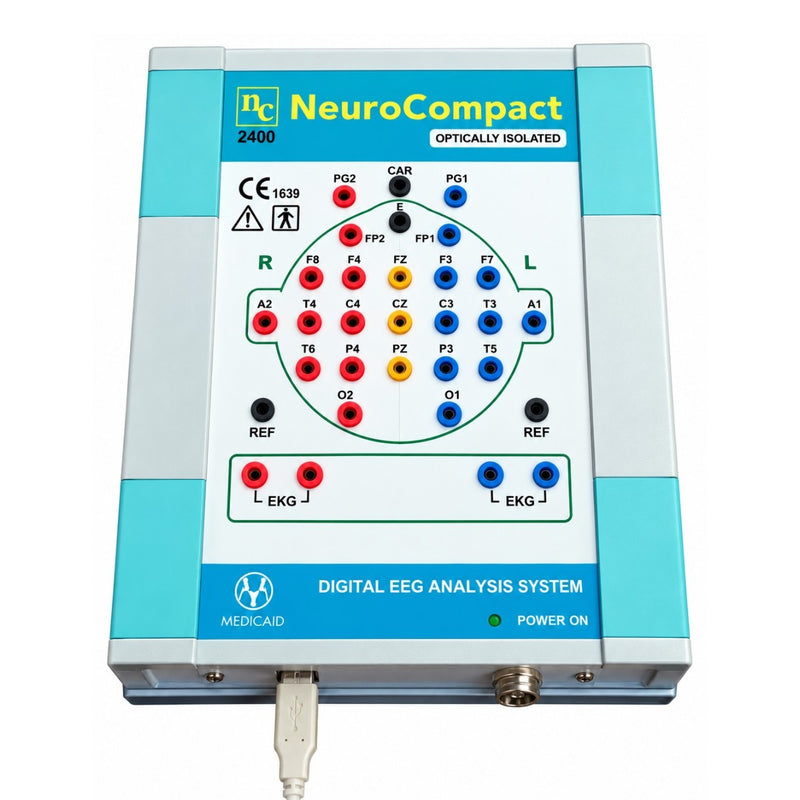

The Medicaid Neuro Compact NC 2400 is a 24-channel truly portable digital EEG machine designed for brain activity monitoring in clinical environments. Weighing approximately 600ā650 grams, the compact system is suitable for bedside, ICU, and operation theater applications where portability and flexible EEG acquisition are important.
The NC 2400 uses USB-powered plug-and-play operation, while offering advanced EEG analysis functions including brain mapping, automatic spike detection, real-time impedance checking, and multi-montage comparison. The system can also be upgraded for synchronized Video EEG monitoring.
Product Description
The Medicaid Neuro Compact NC 2400 combines a lightweight EEG amplifier with computer-based acquisition and analysis. Its 24-channel configuration supports digital EEG recording, with options for poly channels and DC acquisition depending on configuration.
With sampling rates of up to 1024 Hz or higher depending on configuration, the system is designed for clinical EEG recording and analysis. Its compact design makes it particularly suitable for situations where a conventional full-size EEG system may be less convenient to deploy.
ā
Key Features
- 24-channel digital EEG system
- Truly portable design
- Approximate weight: 600ā650 g
- USB-powered plug-and-play operation
- No external power supply or battery required for the main unit
- Optional poly channels and DC acquisition
- Sampling rate up to 1024 Hz or higher depending on configuration
- Built-in brain mapping
- Automatic spike detection
- Real-time electrode impedance checking
- Simultaneous comparison of up to three montages
- Split-screen EEG analysis
- Integrated word processor for clinical reporting
- Upgradeable to synchronized Video EEG monitoring
- Suitable for bedside, ICU, and operation theater use
24-Channel EEG Acquisition
The NC 2400 provides 24 digital EEG channels for recording brain electrical activity. The system also offers options for poly-channel and DC acquisition, allowing the configuration to be adapted to specific clinical recording requirements.
USB Plug-and-Play Operation
The main EEG unit draws power directly through a USB port, providing plug-and-play operation without requiring a separate external power supply or battery for the main unit.
This design contributes to the system's portability and makes it convenient for computer-based EEG acquisition in different clinical locations.
Advanced EEG Analysis Software
The NC 2400 includes several software-based analysis functions:
Brain Mapping
Built-in brain mapping tools provide graphical analysis of EEG activity for clinical review.
Automatic Spike Detection
The system incorporates automatic spike detection, supporting the review of EEG recordings for relevant waveform events.
Three-Montage Split-Screen Comparison
Up to three EEG montages can be compared simultaneously using a split-screen presentation, allowing clinicians to review different montage configurations within the same workflow.
Real-Time Impedance Check
A real-time impedance checking function helps assess electrode connections during EEG setup and recording.
Clinical Reporting
An integrated word processor is provided for preparing clinical EEG reports and documentation.
Upgradeable Video EEG System
The Medicaid Neuro Compact NC 2400 can be upgraded to synchronized Video EEG monitoring, allowing the system configuration to be expanded when video-supported EEG observation is required.
Portable Clinical Design
At approximately 600ā650 grams, the NC 2400 is designed for situations where an EEG system needs to be moved between clinical locations.
Potential environments include:
- Bedside EEG
- ICU monitoring
- Operation theater
- Neurology departments
- Clinical diagnostic areas
Clinical Applications
The Medicaid Neuro Compact NC 2400 can be used for:
- Routine EEG recording
- Neurological diagnostics
- Bedside EEG
- ICU EEG monitoring
- Operation theater EEG applications
- Brain activity monitoring
- Brain mapping
- Spike detection
- Clinical EEG reporting
- Video EEG monitoring after upgrade
Technical Specifications
| Specification |
Details |
| Brand / Manufacturer |
Medicaid Systems |
| Model |
Neuro Compact NC 2400 |
| Condition |
New / configuration dependent |
| System Type |
Portable Digital EEG Machine |
| Number of EEG Channels |
24 Channels |
| Additional Acquisition |
Poly channels / DC acquisition options |
| Weight |
Approx. 600ā650 g |
| Power Supply |
USB-powered |
| Main Unit Battery |
Not required |
| External Power Supply |
Not required for main unit |
| Sampling Rate |
Up to 1024 Hz or higher depending on configuration |
| Brain Mapping |
Built-in |
| Spike Detection |
Automatic |
| Impedance Check |
Real-time |
| Montage Comparison |
Up to 3 simultaneous montages |
| Display / Analysis |
Split-screen |
| Clinical Reporting |
Integrated word processor |
| Video EEG |
Upgradeable to synchronized Video EEG |
| Primary Applications |
Bedside, ICU, Operation Theater, Neurology |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
