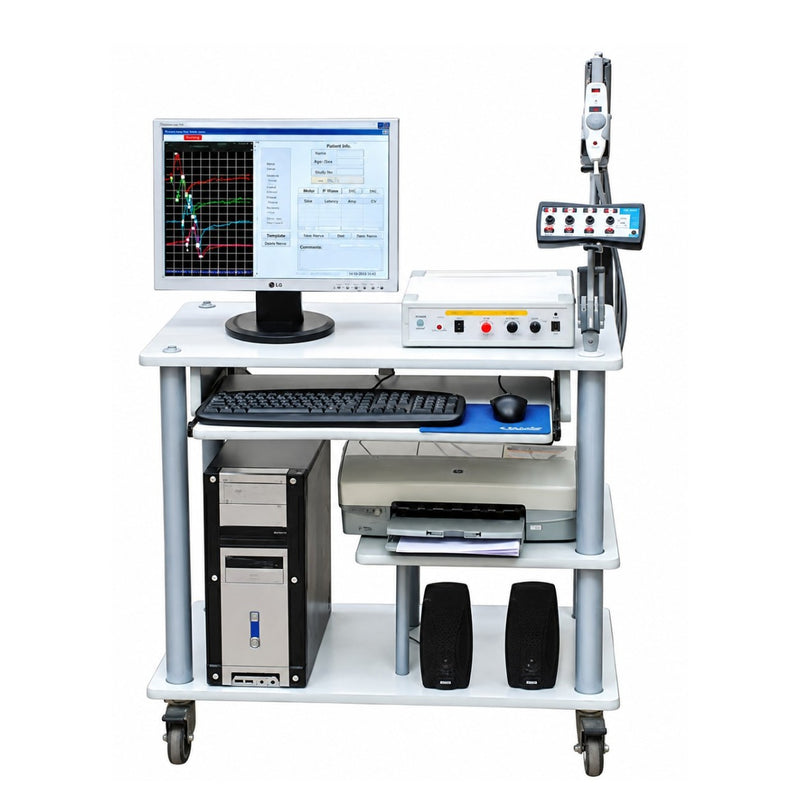

Medicaid NeuroStim NS-2 EMG NCV EP Machine

The Medicaid NeuroStim NS-2 is a 2-channel computerized EMG/NCV/EP system, upgradeable to 4 channels, designed for neurological and neurophysiological investigations in hospitals, neurology clinics, diagnostic centers, medical colleges, and research facilities.

The USB-based NeuroStim NS-2 connects directly to a Windows computer and draws operating power through the USB connection, eliminating the need for a separate external power supply. The system is designed to simplify electrodiagnostic testing with automatic parameter settings, automatic NCV calculations, real-time waveform acquisition, waveform storage and replay, automatic amplitude and latency marking, and comprehensive report generation.

The system supports a broad range of examinations, including EMG, Motor and Sensory NCV/NCS, F-Wave, H-Reflex, VEP, BAEP/BERA, SSEP, SSR and other compatible evoked potential studies, depending on the installed configuration and accessories.

Key Features

• 2-Channel EMG/NCV/EP System – Two-channel configuration with upgradeability to four channels.
• USB-Based Operation – Connects directly to a computer through USB.
• No External Power Supply Required – The system receives operating power through the USB connection.
• Computerized Windows-Based System – Designed for operation with a compatible Windows PC or laptop.
• EMG Testing – Supports surface and needle EMG examinations.
• Motor & Sensory NCV/NCS – Supports nerve conduction studies for motor and sensory nerves.
• Automatic NCV Calculation – Automatically calculates relevant nerve conduction parameters.
• F-Wave & H-Reflex – Supports commonly used late-response studies.
• Evoked Potential Testing – Supports compatible VEP, BAEP/BERA and somatosensory evoked potential studies.
• Live & Averaged Waveforms – Displays live signals alongside averaged waveforms.
• Automatic Amplitude & Latency Marking – Helps simplify waveform analysis.
• Continuous EMG Recording – Up to 13 minutes of continuous EMG waveform can be stored and replayed with audio, as specified.
• Multi-Nerve Display – More than one nerve can be listed on a single screen.
• Automatic Parameters – Test parameters are automatically configured according to the selected testing mode.
• Comprehensive Auto Reporting – Generates reports containing test values in tabular format.
• MS Word Report Printing – Supports report printing in MS Word format.
• Built-In Muscle & Nerve Guide – Picture-based reference guide for muscles and nerves.
• Upgradeable Configuration – 2-channel system can be upgraded to 4 channels, subject to configuration.
• CE Certified – Supplied as a CE-certified medical diagnostic system.

EMG Testing

The NeuroStim NS-2 is designed for electromyography, allowing electrical activity associated with muscles to be recorded and analyzed. It supports applicable surface and needle EMG examinations and provides waveform acquisition, storage, replay, and analysis features.

The system can display EMG signals in real time and provides automatic marking functions for relevant waveform parameters.

NCV / NCS Testing

The system supports Motor and Sensory Nerve Conduction Studies. During compatible NCV examinations, the system records nerve responses and calculates relevant parameters such as:

• Latency
• Amplitude
• Conduction velocity
• Relevant nerve conduction values

The automatic NCV calculation feature helps streamline the testing and reporting workflow.

Evoked Potential Testing

Depending on the installed configuration and accessories, the NeuroStim NS-2 supports compatible evoked potential examinations such as:

• VEP – Visual Evoked Potential
• BAEP / BERA – Brainstem Auditory Evoked Potential
• SSEP – Somatosensory Evoked Potential
• Other compatible EP studies

Technical Specifications
