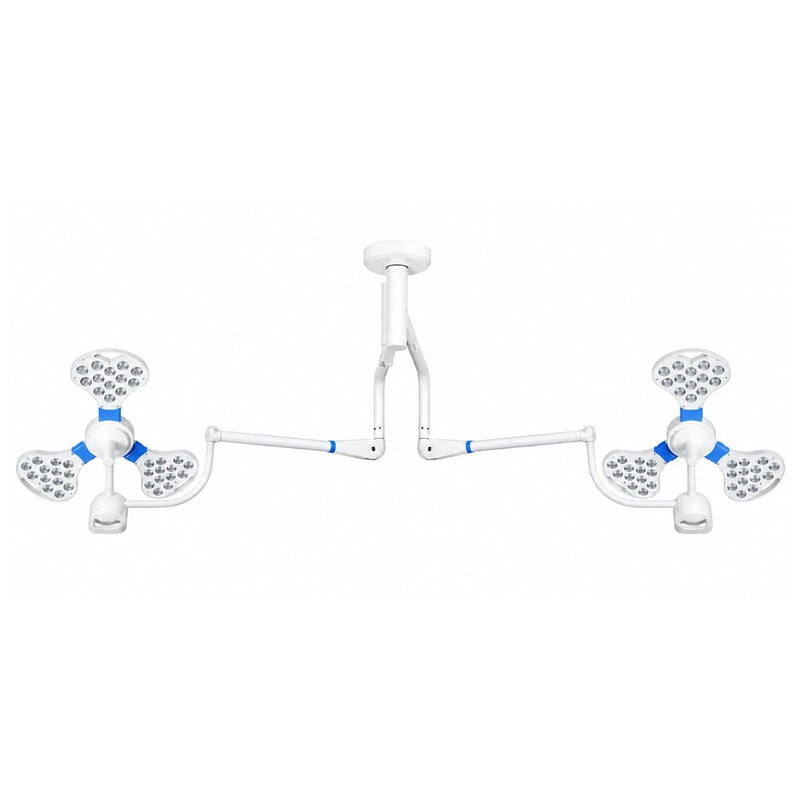

The Medinain Aster 303H OT Light is a dual-head LED surgical light from the Aster Series, featuring an ultra-slim, unique and lightweight lamp-head design intended to support smooth and precise positioning during surgery.
The Aster Series is specified as being compatible with laminar flow systems. The Aster 303H combines two primary light heads with specified illumination of 120,000 + 120,000 Lux, along with a separate satellite light specified at 115,000 Lux.
ā
Key Features
- Dual-head LED OT light
- Main illumination: 120,000 + 120,000 Lux
- Satellite intensity: 115,000 Lux
- Ultra-slim and lightweight lamp-head design
- Compatible with laminar flow systems
- 10ā100% digital touch intensity control
- Dual memory function
- Manual focusing
- Colour temperature: 3800ā4800 K
- Colour Rendering Index: 93 Ra
- 39 + 39 LEDs
- LED average life of >50,000 hours
- Light diameter: 635 + 635 mm
- Spot diameter: 100ā150 mm
- Depth diameter: 10ā25 cm
- 220V/50Hz AC power supply
- Power consumption: 31.2 + 31.2 Watt
Dual-Head High-Intensity Illumination
The Aster 303H has two primary light heads with specified illumination of:
-
First light head: 120,000 Lux
-
Second light head: 120,000 Lux
-
Satellite light: 115,000 Lux
This configuration provides multiple light sources that can be positioned around the surgical field according to procedural requirements.
Ultra-Slim and Lightweight Design
The Aster 303H features an ultra-slim, unique and lightweight lamp-head design intended to support smooth and precise positioning during surgical procedures.
The supplied product information also specifies that the Aster Series is compatible with laminar flow systems.
Digital Touch Intensity Control
The Aster 303H incorporates digital touch intensity control from 10% to 100%, allowing illumination to be adjusted according to procedural requirements.
Dual Memory Function
The dual memory function provides two stored lighting settings for convenient recall during procedures.
High-Definition Optical Performance
The Aster 303H is specified with:
-
Colour temperature: 3800ā4800 K
-
Colour Rendering Index: 93 Ra
-
Focusing: Manual
-
Spot diameter: 100ā150 mm
-
Depth diameter: 10ā25 cm
Long-Life LED System
The two primary light heads use 39 + 39 LEDs, with a specified average LED life of more than 50,000 hours.
The specified diameter of the two main light heads is 635 + 635 mm.
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
Aster 303H |
| Light Type |
Dual-Head LED Surgical / OT Light |
| Intensity |
120,000 + 120,000 Lux |
| Satellite Intensity |
115,000 Lux |
| Spot Diameter |
100ā150 mm |
| Depth Diameter |
10ā25 cm |
| Colour Temperature |
3800ā4800 K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 hours |
| Number of LEDs |
39 + 39 |
| Diameter of Light |
635 + 635 mm |
| Intensity Control |
10ā100% Digital Touch |
| Power Supply |
220V / 50Hz AC |
| Power Consumption |
31.2 + 31.2 Watt |
| Special Function |
Dual Memory Function |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
