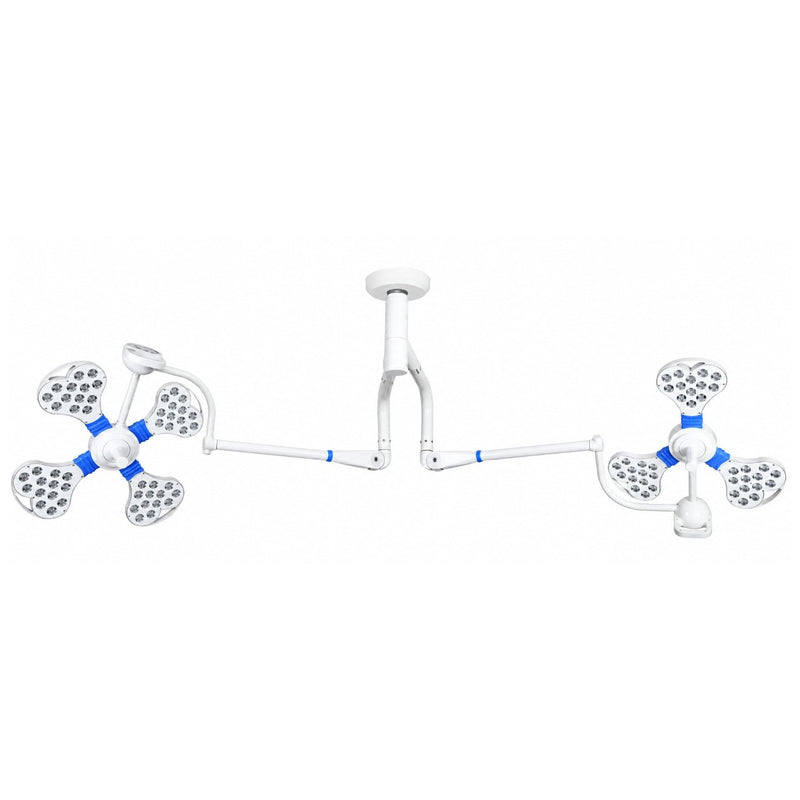

The Medinain Aster 403H is a dual-head LED OT light featuring an ultra-slim, lightweight lamp-head design intended to support smooth and precise positioning during surgical procedures.
The Aster Series is described as providing illumination of up to 160,000 Lux and compatibility with laminar flow systems. The Aster 403H features two primary light heads with specified intensities of 150,000 Lux + 120,000 Lux, along with a separate 115,000 Lux satellite intensity specification.
Its 52 + 39 LEDs, 93 Ra colour rendering, manual focusing, digital touch intensity control and dual memory function make it suitable for operating theatres and surgical procedure environments.
✅ Key Features
- Dual-head LED OT light
- Primary intensity: 150,000 + 120,000 Lux
- Satellite intensity: 115,000 Lux
- Ultra-slim and lightweight lamp-head design
- Designed for smooth and precise positioning
- 52 + 39 LEDs
-
3800–4800 K colour temperature
- 93 Ra Colour Rendering Index
- Manual focusing
- LED average life of more than 50,000 hours
- 10–100% digital touch intensity control
- Dual Memory Function
- Light diameters: 685 + 635 mm
- Compatible with laminar flow systems as stated for the Aster Series
- 220V/50Hz AC power supply
High-Intensity Dual-Head Illumination
The Aster 403H combines two primary LED lamp heads with specified intensities of 150,000 Lux + 120,000 Lux. This dual-head configuration provides adjustable illumination from different positions around the operating field.
The supplied specification also lists a 115,000 Lux satellite intensity, which is retained separately rather than combined with the primary light-head specifications.
Manual Focusing
Both light heads use manual focusing, allowing the illuminated field to be adjusted according to surgical requirements.
Digital Touch Intensity Control
The system provides 10–100% digital touch intensity control, allowing the lighting level to be adjusted according to the procedure and operating environment.
Dual Memory Function
The Dual Memory Function provides convenient access to stored illumination settings during surgical procedures.
Technical Specifications
| Specification |
Details |
| Brand |
Medinain |
| Model |
Aster 403H |
| Product Type |
Dual-Head LED OT / Surgical Operating Theatre Light |
| Intensity |
150,000 + 120,000 Lux |
| Satellite Intensity |
115,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800 K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
52 + 39 |
| Diameter of Light |
685 + 635 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
41.6 + 31.2 Watt |
| Special Function |
Dual Memory Function |
| Laminar Flow Compatibility |
Compatible with laminar flow system, as stated for the Aster Series |
Clinical Applications
The Medinain Aster 403H is designed for surgical and clinical environments requiring adjustable, high-intensity LED illumination, including:
- Operation theatres
- General surgery rooms
- Surgical procedure rooms
- Hospitals
- Surgical centres
- Clinical examination and treatment areas
- Procedures requiring dual-head surgical illumination
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
