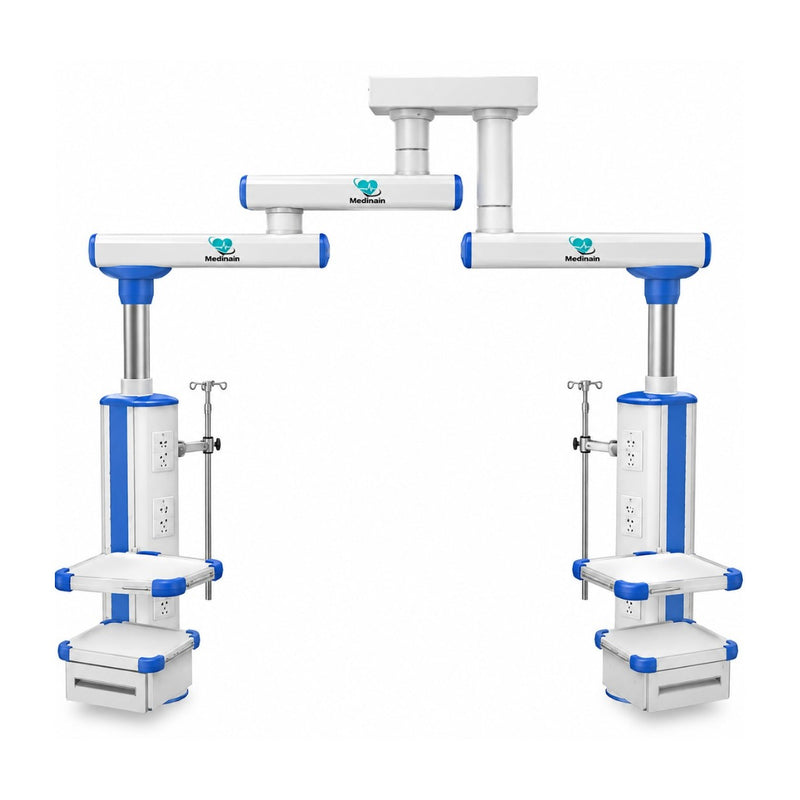

The Medinain Double Arm Medical Pendant is a dual-arm ceiling-mounted equipment system designed to provide flexible positioning of medical equipment, gas connections, electrical outlets and network connectivity around the patient-care area.
It features a 1000 mm horizontal arm radius, 340° horizontal rotation for each arm, and a vertically adjustable functional box with a 250–600 mm lift stroke. The system includes oxygen and suction gas terminals, two height-adjustable instrument platforms, electrical outlets, potential grounding terminals, an RJ45 network interface, drawer, syringe-pump rack and infusion-pump rack.
Its main structure is made from high-strength aluminium alloy, with an imported high-voltage electrostatic powder-spray surface treatment.
✅ Key Features
- Double-arm medical pendant system
- Horizontal arm radius: 1000 mm
- Each horizontal arm rotates up to 340°
- Horizontal arms and functional box can be rotated simultaneously
- Functional box vertical lift stroke: 250–600 mm
- 100W motor power
- Rotary joint with expandable isolation brake system
- Brake-button operation for positioning and securing the equipment
- Standard gas terminals:
- 2 × Oxygen
- 2 × Suction
- Gas terminals available in different colors and shapes
- Gas terminals rated for more than 20,000 mating cycles
- Secondary sealing design with three states: on, off and pull
- Two-layer height-adjustable instrument platform
- Each instrument platform supports up to 20 kg
-
6 × electrical outlets, 220V/10A
- 2 × potential ground terminals
- 1 × RJ45 network interface
- 1 × drawer
- Total specified weight loading: 150 kg
- 1 × syringe pump rack
- 1 × infusion pump rack
- High-strength aluminium alloy construction
- High-voltage electrostatic powder-spray surface treatment
Product Overview
The Medinain Double Arm Medical Pendant is designed to organize and position essential medical utilities and equipment within a clinical care environment.
Its dual-arm configuration provides a 1000 mm horizontal arm radius, with each horizontal arm capable of 340° horizontal rotation. The horizontal arms and functional box can be rotated simultaneously, allowing the equipment assembly to be positioned according to the requirements of the care area.
The functional box provides vertical adjustment over a 250–600 mm lift stroke and is powered by a 100W motor.
Double-Arm Positioning System
The pendant's arm system provides flexible positioning around the patient-care area.
Horizontal Movement
- Horizontal arm radius: 1000 mm
- Horizontal rotation: 340° for each arm
- Arms and functional box can be rotated simultaneously
This configuration provides a broad positioning range for the connected equipment and utilities.
Vertical Functional Box Adjustment
The functional box has a specified vertical lift stroke of:
250–600 mm
The supplied specification lists a 100W motor for the lifting mechanism.
Rotary Joint & Brake System
The rotary joint incorporates an expandable isolation brake system. According to the supplied product description, the brake can be operated by holding down the brake button to allow rotation and releasing the button to secure the device and prevent drift.
This provides controlled positioning of the pendant assembly.
Medical Gas Terminals
The standard gas-terminal configuration includes:
| Gas Connection |
Quantity |
| Oxygen |
2 |
| Suction |
2 |
The supplied specification also states that the gas terminals:
- Are available in different colors and shapes
- Support more than 20,000 mating cycles
- Use a secondary sealing design
- Have three operating states: on, off and pull
- Can carry air service
The exact gas-terminal standard and compatibility should be confirmed for the installation location and required medical-gas system.
Instrument Platforms
The pendant includes two instrument-platform layers.
Features include:
- Two levels
- Height adjustable
- Rounded bumper design
- 20 kg load capacity per platform
The platforms can be used for supporting compatible medical equipment and accessories within their specified load limits.
Electrical & Network Connectivity
The system provides:
- 6 × electrical outlets
- Electrical outlet rating: 220V / 10A
- 2 × potential ground terminals
- 1 × RJ45 network interface
The available electrical configuration should be verified against the facility's electrical requirements before installation.
Storage & Equipment Racks
The supplied configuration includes:
- 1 × drawer
- 1 × syringe pump rack
- 1 × infusion pump rack
These components provide dedicated support for commonly used medical equipment and accessories.
Construction & Surface Finish
The main structural material is specified as high-strength aluminium alloy.
The surface treatment uses an imported high-voltage electrostatic powder-spray process, as specified in the supplied product information.
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Product Type |
Double Arm Medical Pendant |
| Arm Configuration |
Double Arm |
| Horizontal Arm Radius |
1000 mm |
| Horizontal Rotation |
340° each arm |
| Functional Box Lift Stroke |
250–600 mm |
| Motor Power |
100 W |
| Gas Terminals |
2 Oxygen + 2 Suction |
| Gas Terminal Mating Cycles |
More than 20,000 |
| Gas Terminal Sealing |
Secondary seal |
| Gas Terminal States |
On / Off / Pull |
| Instrument Platforms |
2 layers |
| Platform Height Adjustment |
Adjustable |
| Platform Load Capacity |
20 kg each |
| Electrical Outlets |
6 |
| Electrical Outlet Rating |
220V / 10A |
| Potential Ground Terminals |
2 |
| Network Interface |
1 × RJ45 |
| Drawer |
1 |
| Syringe Pump Rack |
1 |
| Infusion Pump Rack |
1 |
| Weight Loading |
150 kg |
| Main Material |
High-strength aluminium alloy |
| Surface Treatment |
High-voltage electrostatic powder spray |
| Power Supply |
AC 220V, 50Hz / AC 110V, 60Hz |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
