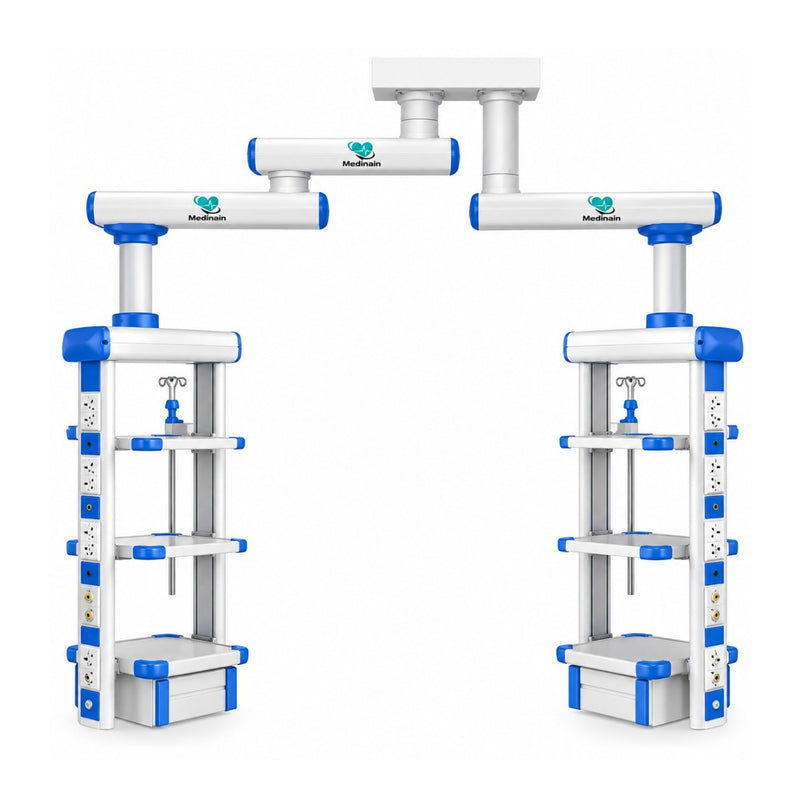

The Medinain Double Arm Medical Pendant is a ceiling-mounted medical equipment support system designed to organize medical gas connections, electrical power, grounding, infusion support, syringe pump support, and storage within clinical environments.
The system uses high-strength aluminium alloy profiles as its main structural material and features electrostatic surface spraying. Its ceiling-mounted installation is specified as providing a stable and firm mounting arrangement.
✅ Key Features
- Double-arm medical pendant configuration
- Ceiling-mounted installation
- Stable and firm mounting design
- Medical gas interface configuration for:
- 2 × Oxygen
-
2 × Vacuum suctionCompressed air
- Gas interfaces with differentiated colors and shapes
- Anti-missing function
- More than 20,000 insertion/removal cycles
- Secondary sealing design
- Three gas-interface states: ON / OFF / PULL
- Gas maintenance function as specified
- 10 × electrical power sockets
- Electrical rating: 220V / 10A
- 2 × equipotential grounding terminals
- Stainless steel adjustable infusion rod holder
- Stainless steel adjustable syringe pump frame
- Storage compartment/item
- High-strength aluminium alloy profile construction
- Electrostatic surface spraying
Medical Gas Interface
The pendant is specified with a medical gas interface configuration consisting of:
- 2 oxygen connections
- 2 vacuum suction connections
- Compressed air connection
The interfaces use different colors and shapes and include an anti-missing function to help distinguish the connections.
The gas interfaces are specified for more than 20,000 insertion and removal cycles.
The design uses secondary sealing with three states:
The supplied specification also states that the interface provides a gas maintenance function.
Electrical Power & Grounding
The Medinain Double Arm provides 10 power sockets, each specified at 220V / 10A.
For equipotential grounding, the system includes:
- 2 × equipotential grounding terminals
This configuration provides multiple electrical connection points for compatible clinical equipment.
Infusion & Syringe Pump Support
The specified configuration includes:
- 1 × stainless steel adjustable infusion rod holder
- 1 × stainless steel adjustable syringe pump frame
These components provide dedicated support for compatible infusion and syringe pump equipment.
Construction & Installation
The main structural material is high-strength aluminium alloy profiles.
The surface treatment uses electrostatic spraying.
The supplied product description specifies a ceiling-mounted installation designed to provide a stable and firm mounting arrangement.
Storage
The pendant includes one storage item, providing additional space for organizing compatible clinical accessories and equipment.
Technical Specifications
| Specification |
Details |
| Product |
Medinain Double Arm Medical Pendant |
| Configuration |
Double Arm |
| Installation |
Ceiling-mounted |
| Medical Gas Interface |
Oxygen, vacuum suction, compressed air |
| Oxygen Connections |
2 pcs |
| Vacuum Suction Connections |
2 pcs |
| Compressed Air |
Included in gas interface configuration |
| Interface Design |
Different colors and shapes |
| Anti-Missing Function |
Yes |
| Insertion/Removal Cycles |
>20,000 |
| Gas Interface Seal |
Secondary sealing |
| Interface States |
ON / OFF / PULL |
| Gas Maintenance |
Specified |
| Power Sockets |
10 |
| Socket Rating |
220V / 10A |
| Equipotential Grounding Terminals |
2 |
| Infusion Rod Holder |
1 × stainless steel, adjustable |
| Syringe Pump Frame |
1 × stainless steel, adjustable |
| Storage |
1 item |
| Main Material |
High-strength aluminium alloy profiles |
| Surface Treatment |
Electrostatic spraying |
| Mounting |
Stable and firm ceiling-mounted installation |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
