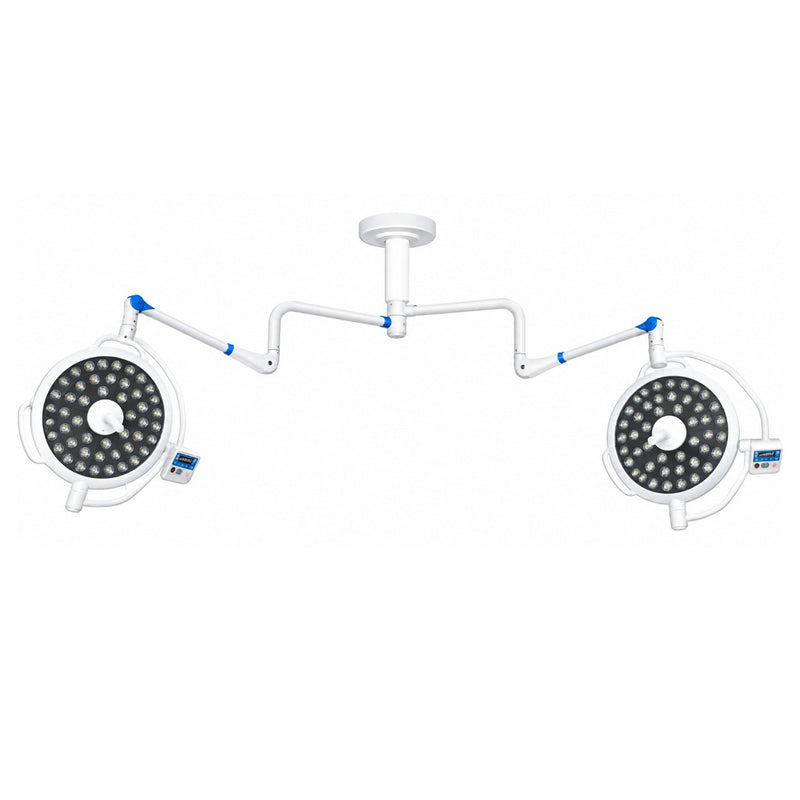

The Medinain Eva-500 Double Dome OT Light is a dual-dome LED operating theatre surgical light featuring an ultra-slim, streamlined lamp-head design for modern surgical and clinical environments.
The Eva-500 Double Dome provides 150,000 Lux + 150,000 Lux illumination through 48 × 2 LEDs. It features 10–100% digital intensity control, dual memory function, 3800–4800K colour temperature, CRI 93 Ra, and an LED average life of more than 50,000 hours.
The supplied product description also lists optional functions including shadow compensation, handheld wireless remote controller, smooth light-focus adjustment, and mutual control for both lamp heads, along with other optional functions depending on configuration.
✅ Key Features
- Double-dome / dual-head OT LED surgical light
-
150,000 Lux + 150,000 Lux specified intensity
- 48 × 2 LEDs
- 10–100% digital intensity control
- Dual memory function
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Depth: 10–25 cm
- LED average life: >50,000 hours
- 533 + 533 mm light diameter
- 220V/50Hz AC power supply
- 38.4 + 38.4W power consumption
- Ultra-slim, streamlined lamp-head design
- Optional shadow compensation
- Optional handheld wireless remote controller
- Optional smooth light-focus adjustment
- Optional mutual control for both lamp heads
- Other optional functions available depending on configuration
Dual-Dome 150,000 + 150,000 Lux Illumination
The Eva-500 Double Dome features two light heads, each specified at 150,000 Lux:
-
Head 1: 150,000 Lux
-
Head 2: 150,000 Lux
The dual-dome configuration provides two high-intensity sources of surgical illumination that can be positioned according to procedural requirements.
48 × 2 LED Configuration
Each light head incorporates 48 LEDs, specified as 48 × 2 for the complete double-dome configuration.
The specified LED average life is more than 50,000 hours.
Digital Intensity Control
The Eva-500 Double Dome provides 10–100% digital intensity control, allowing the illumination level to be adjusted according to the requirements of the procedure.
The system also features a dual memory function for storing and recalling preferred lighting settings.
Optional Functions
The supplied product description lists several optional functions:
- Shadow Compensation
- Handheld Wireless Remote Controller
- Smooth Light Focus Adjustment
- Mutual Control for Both Lamp Heads
- Other optional functions
Availability of optional functions should be confirmed according to the exact configuration being supplied.
Ultra-Slim Streamlined Lamp Head
The Eva-500 Double Dome uses an ultra-slim, streamlined lamp-head design.
The specified diameter of each light head is 533 mm, giving a total configuration of:
533 mm + 533 mm
Light Field & Focusing
The supplied specifications include:
| Parameter |
Specification |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Manual / Fixed* |
*The source specification states “Focusing Manual” and “Fixed”. This wording has been retained as supplied rather than making an assumption about the exact focusing mechanism.
Colour Temperature & CRI
The Eva-500 Double Dome has a specified 3800–4800K colour temperature range and Colour Rendering Index of 93 Ra.
Technical Specifications
| Specification |
Eva-500 Double Dome |
| Model |
Eva-500 |
| Configuration |
Double Dome |
| Light Type |
LED OT / Surgical Light |
| Intensity – Head 1 |
150,000 Lux |
| Intensity – Head 2 |
150,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual / Fixed* |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
48 × 2 |
| Diameter of Light |
533 + 533 mm |
| Intensity Control |
10–100% Digital |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
38.4 + 38.4W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
